Filament Extruder & Recycler – 3d Printer Waste Recycling

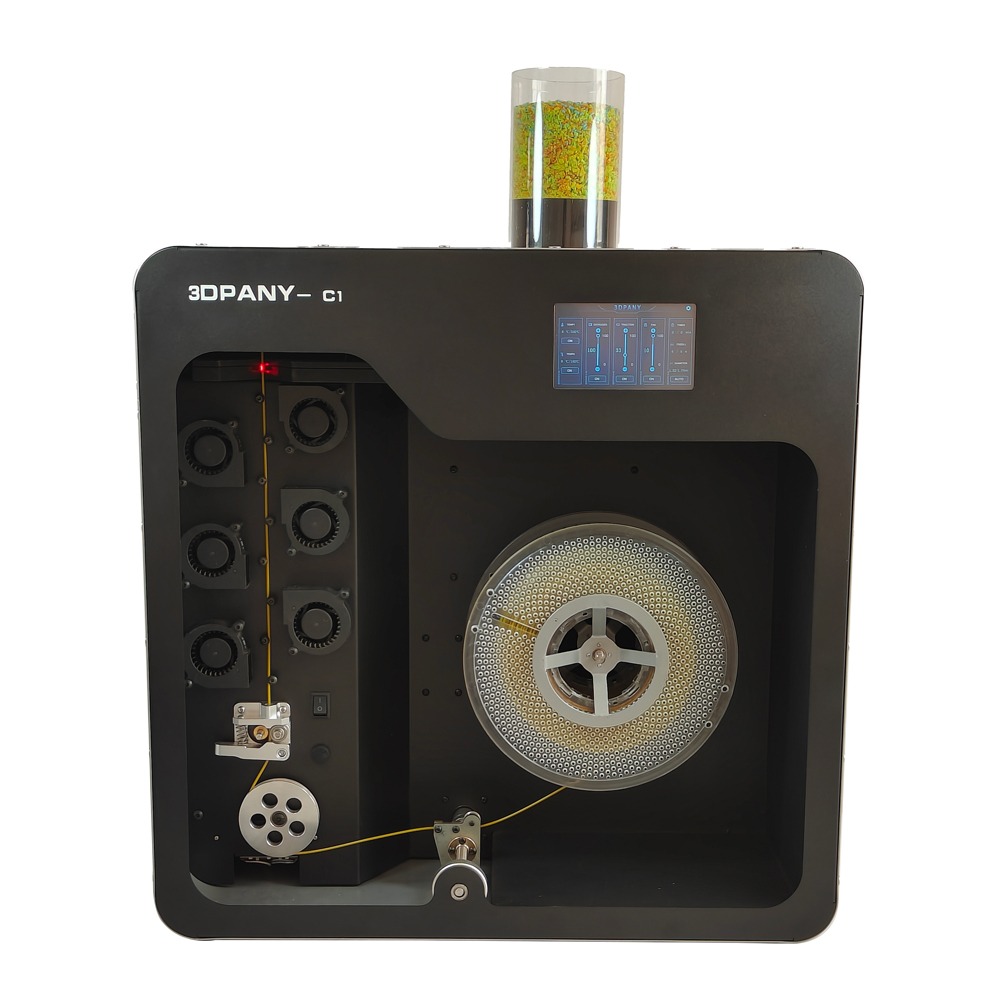

The C1 extruder is not merely a high-precision filament production device; rather, it functions as a complete closed-loop recycling system. Specifically, it transforms 3D printing waste into reusable, high-quality filament. As a result, it replaces the traditional linear model of “print–discard–pollute” with a sustainable circular approach.

What can the C1 do for you?

Importantly, the C1 desktop extruder addresses the demands of high-volume 3D printing environments. With a maximum output of 400 g/hour, it consistently delivers reliable filament production. Consequently, it can seamlessly supply material to 10 or more 3D printers operating at full capacity.

Custom High-Precision Filament

• Create filaments with custom colours and materials

Waste Recycling

• Recycle all 3D printing waste (finished/failed prints, supports, brims, skirts)

Material R&D

• Conduct blending experiments
• Develop innovative composites and functional filaments

Professional Use

• Aerospace: Small-batch high-strength speciality filaments
• Medical/Education: Biocompatible or educational materials

Core Specifications

• Body Material: High-strength structural steel + plastics
• Dimensions: 480×480×200 mm
• Weight: 16 kg
• Production Rate: 400 g/h
• Temperature Range Ambient: 400°C
• Max Power: 500 W
• Cruising Power: 200 W
• Power Consumption: 0.5 kWh/kg (per kilogram of filament)
• Screw Material: Nitrided alloy steel (HRC58-65)

Additional Notes:

• Power Supply: AC 110V/220V (50/60Hz), globally compatible.
• Filament Diameter: 1.75 mm (adjustable range: 0.3–2.2 mm).
• Supported Materials: PLA, ABS, PETG, TPU, PET, PP, PS, PA, Nylon, PC, PVA, PEEK、etc.
• 4.3” Touchscreen: Real-time monitoring of temperature, diameter, and progress
• Spooling System: Auto-speed adjustment, compatible with spools ≤110mm wide, ≤280mm diameter
• Auto-Shutdown: Stops heating, motors fan at preset time/length

Design Notes:

• Precision: ≤0.03 mm for virgin materials, ≤0.04 mm for recycled materials.
• Sensor: 3DPANY Laser Diameter Sensor (500 scans/sec).
• Control System: Closed-loop control + AI Diameter Compensation.

Package Dimensions:

• 600 * 600 * 300 (mm)
• 23.4 * 23.4 * 11.7 (inch)
• Weight: 20kg
