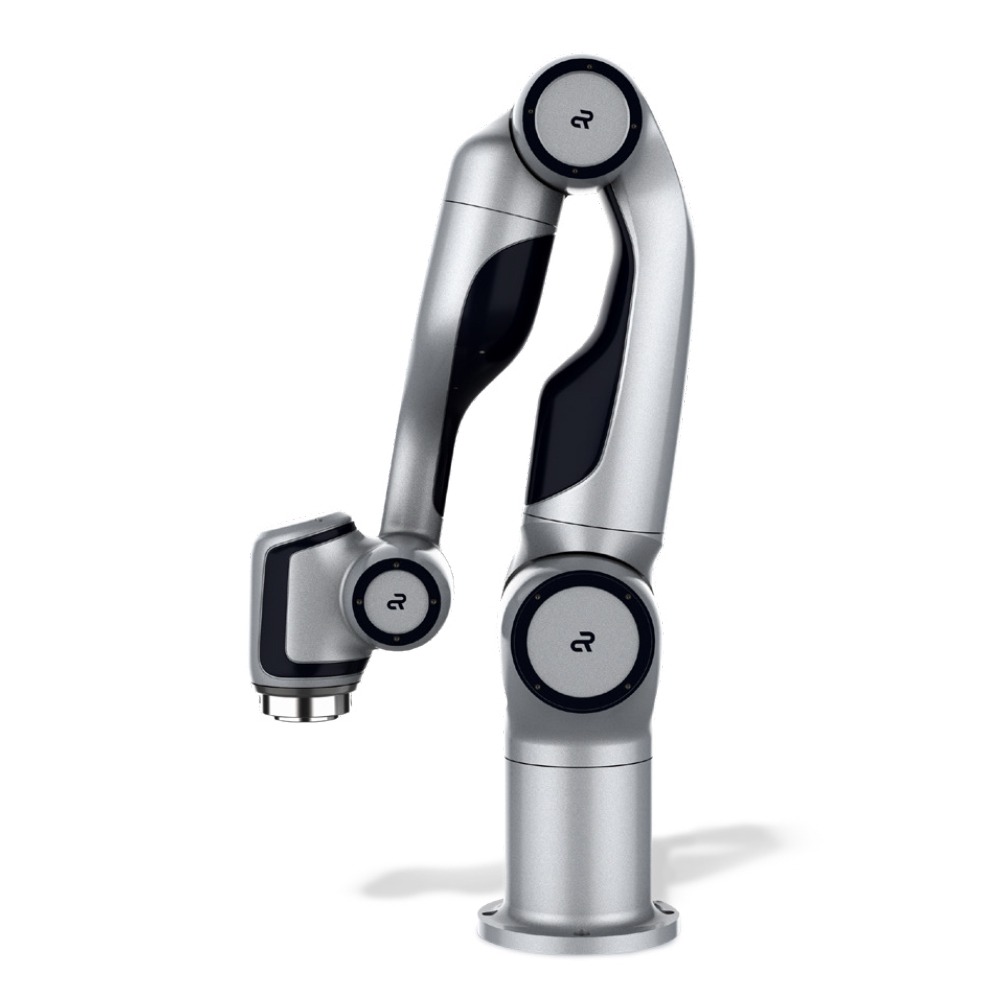

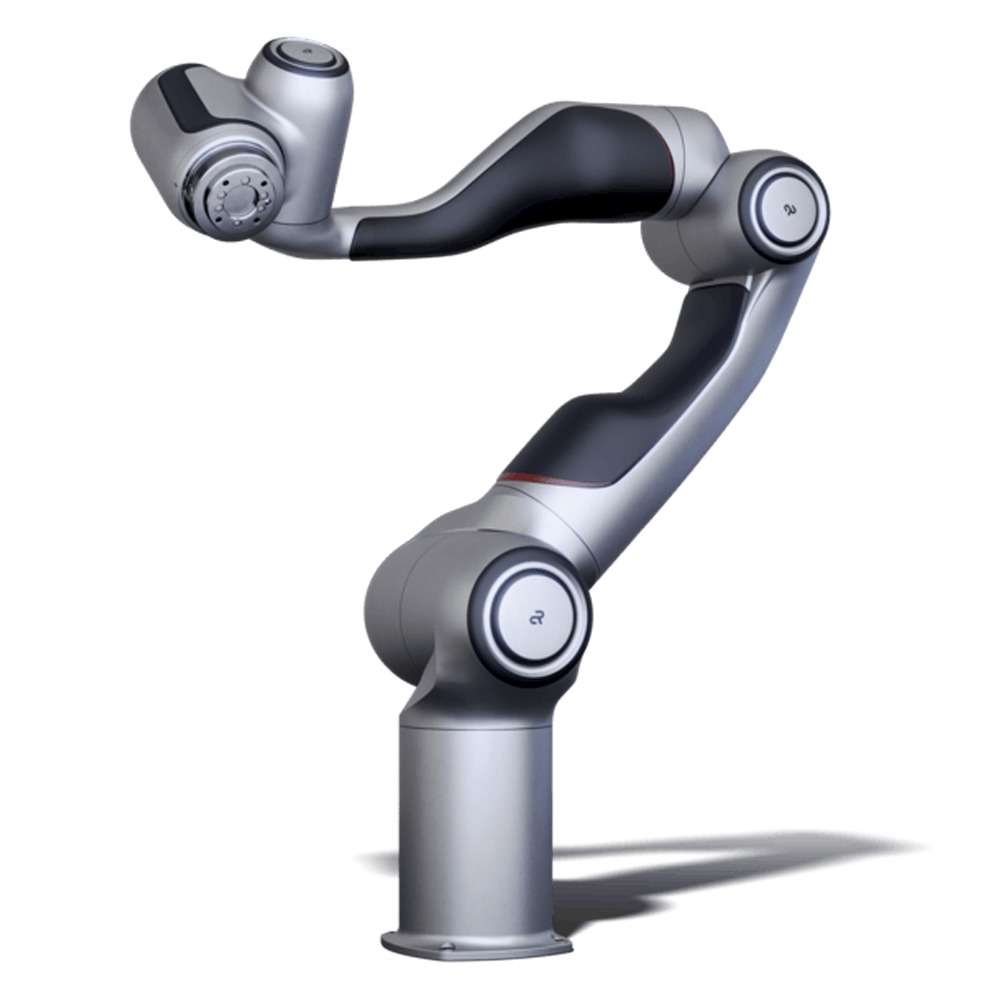

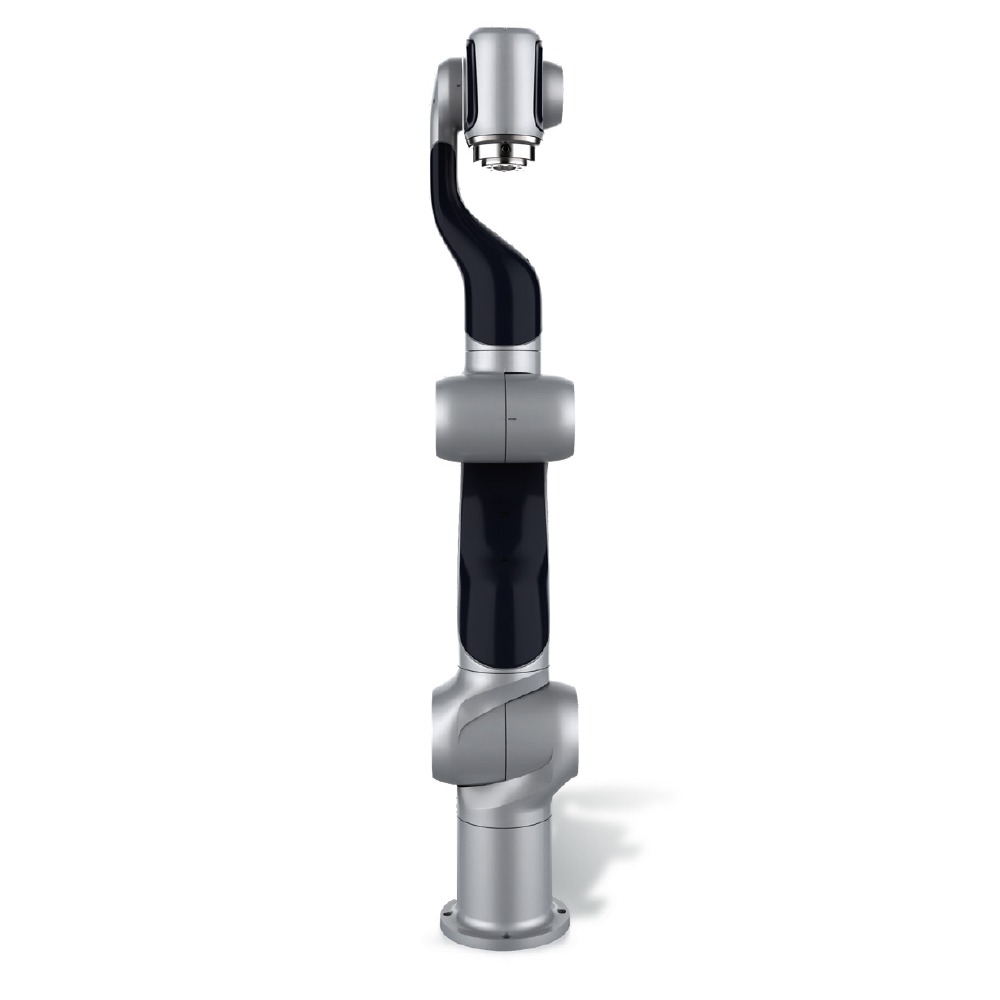

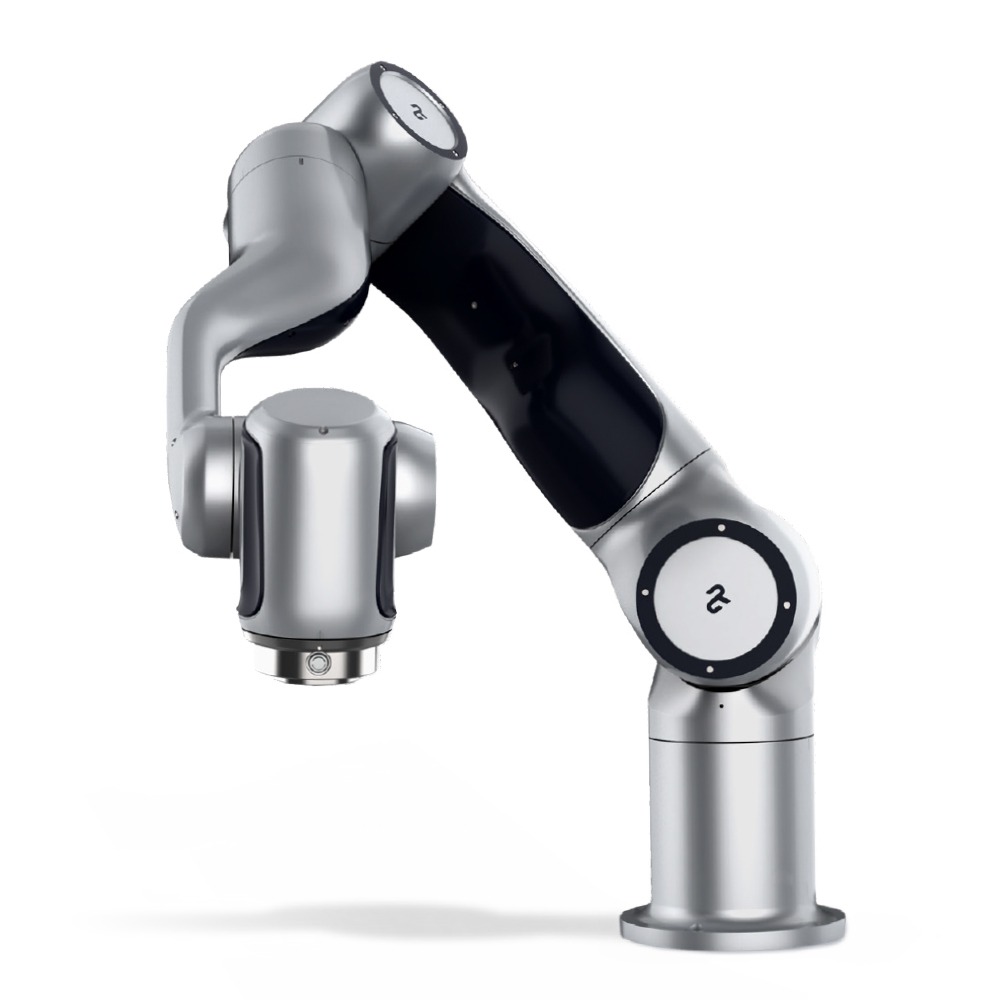

Agile Robots Diana 7 – The art of dexterity

Highly dexterous: Diana 7. Fulfil your automation needs intuitively. Designed to perform any automation task intuitively, this force-controlled robotic arm features torque sensors in all seven axes and is supported by our AI-driven software.

Sensitive

With torque sensors in all seven axes, Diana 7 is one of the most dexterous and sensitive robotic arms on the market.

Versatile

The industrial lightweight robot covers a wide range of tasks and is already in use in the automotive and consumer electronics (3C) sector.

Easy to use

Backed by our smart software AgileCore, Diana 7 can be easily set up, integrated, programmed, maintained, and repaired.

Intuitive

Anthropomorphic kinematics and a user-friendly design allow for seamless handling, especially while teaching new tasks and positions.

Highly flexible

Thanks to its 7 axes, Diana 7 is highly dexterous and flexible. The extra axis allows for smoother movements, enhanced navigation around obstacles and increased versatility in tight or complex spaces.

Considerable payload

With up to 7 kg payload, Diana 7 is ideally suited for handling objects of different weights and sizes.

Efficient reach

With an impressive reach of 923 mm, Diana 7 is capable of picking and placing objects across varying distances.

Meticulous precision

With precise speed control and a repeatability of 0.05 mm, Diana 7 ensures outstanding accuracy in performance.

Diana 7 in More Detail

Strong performance

With a 7 kg payload, Diana 7 carries out multiple tasks in complex workflows.

Robot teaching

Torque-sensing technology empowers effortless robot handling.

Functional aesthetics

The human-centred design safeguards from clamping and allows for ease of use in teaching mode.

Powerful precision

A pose repeatability of ± 0.05 mm ensures the highest path accuracy.

Precise control

A force control accuracy of 0.5 N enables a highly sensitive assembly process.
