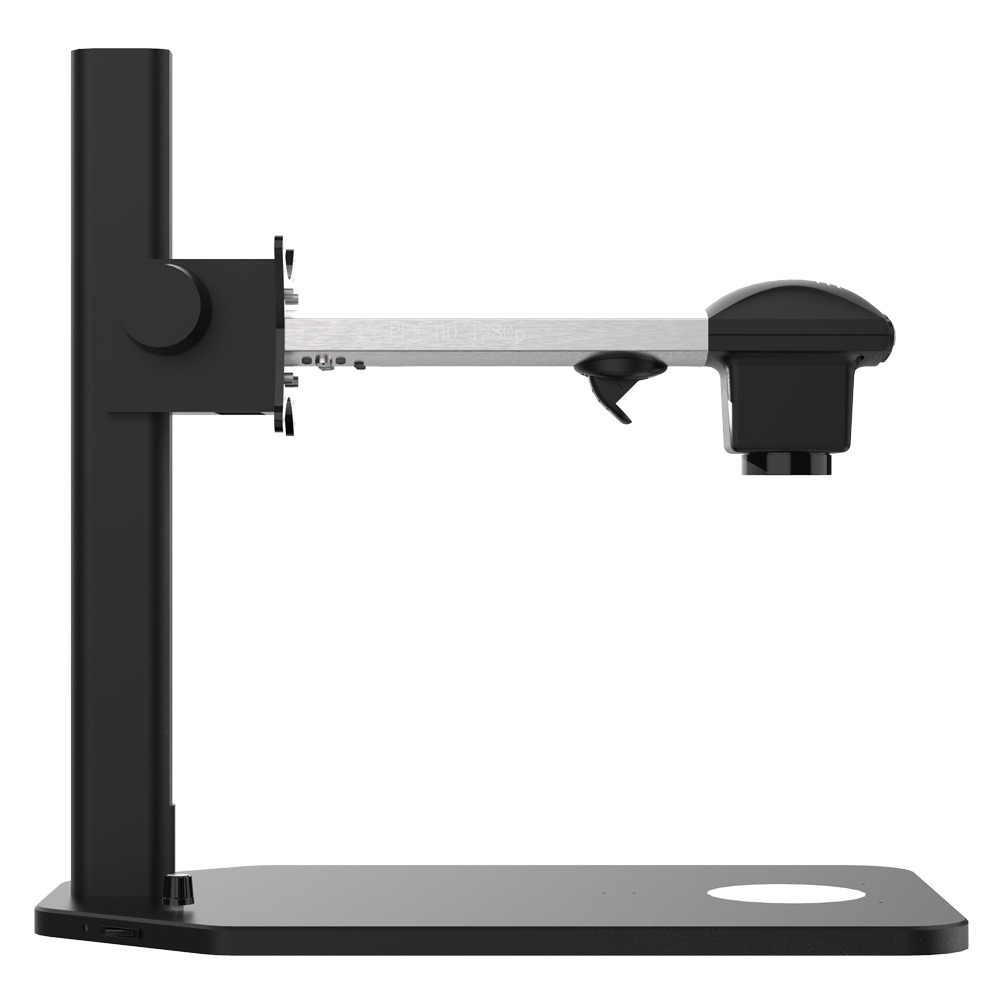

ASH INSPEX HD VESA – HIGH-DEFINITION DIGITAL MICROSCOPE
The ASH Inspex HD VESA digital microscope has full HD image quality and no delay. This is the ideal solution for those wishing to digitise and simplify their inspection process. Ergonomically designed, allowing for less operator fatigue and improved production efficiency. Simple, fast, high-quality inspection. Ideal for repair, rework, assembly and quality control in any manufacturing industry.
FEATURES
REQUEST A QUOTE
Prices shown are for the United Arab Emirates only and are excluding VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties – Please Contact Us for further details and pricing for your location.
ASH INSPEX HD VESA – HIGH-DEFINITION DIGITAL MICROSCOPE
The ASH Inspex HD VESA digital microscope has full HD image quality and no delay. This is the ideal solution for those wishing to digitise and simplify their inspection process. Ergonomically designed, allowing for less operator fatigue and improved production efficiency. Simple, fast, high-quality inspection. Ideal for repair, rework, assembly and quality control in any manufacturing industry.
Superb Image Quality
Accurate and detailed inspection with superb HD image resolution, dynamic range of magnification levels and integrated LED illumination.
Zero Video Latency
Real-time movement under the Inspex HD, resulting in a more efficient inspection process. View parts in real time with no video lag, allowing you to inspect, rework, modify or assemble your parts comfortably.
On-Screen Dimensioning
Integrated, real-time, on-screen patented measuring grids and cursors provide a simple and effective way to measure without a PC.
Compact and Portable
Fully portable, compact design with a small footprint. Experience the power of the Inspex HD wherever you need it with its simple configuration. Simply plug in, switch on, and inspect.
Image Capture
Easy documentation and traceability for accurate quality control records. Store images directly to a USB. Simply plug and go!
SLWD (Super Long Working Distance) objective lens for extra-large part viewing.
Wide Dynamic Range
Wide Dynamic Range uses overlapping multiple exposures depending on the saturation level of each pixel.
| MAGNIFICATION | |||||
| Lens (Dioptre) (mm) | 2 | 3 | 4 | 5 | 10 |
| Max Height (mm) | 500 | 333 | 250 | 200 | 100 |
| Min Height (mm) | 405 | 280 | 205 | 170 | 85 |
| Minimum Magnification* | 1.1 | 1.3 | 2 | 2.5 | 4 |
| Maximum Magnification* Optical/Digital | 29/57 | 36/71 | 50/98 | 62/122 | 121/237 |
| Field of view at minimum mag. (mm) | X: 595 | X: 400 | X: 280 | X: 231 | X: 60 |
| Y: 334 | Y: 225 | Y: 164 | Y: 136 | Y: 50 | |
| Field of view at maximum mag. (mm) | X: 20/10 | X: 14/7 | X: 10/5 | X: 8/4 | X: 5/2 |
| Y: 11/5.5 | Y: 8/4 | Y: 6/3 | Y: 5/2 | Y: 3/1 | |
| Maximum depth of field | 176 | 120 | 106 | 78 | 57 |
| Minimum depth of field | 5 | 4 | 1 | 0.5 | 0.2 |
| TECHNICAL SPECIFICATIONS | |||||
| Zoom Range (with supplied Lens) | 4D lens – 2x – 98x | ||||
| Camera Resolution | HD 1080p, 1920 x 1080 at 50/60 Hz | ||||
| Monitor Connections | HDMI / DVI | ||||
| Monitor Requirements | HD Ready / Full HD (Recommended) | ||||
| Power | 8 Watts | ||||
| Dimensions | 370mm x 120mm x 140mm | ||||
| Weight | 2.5kg | ||||
| Operating Temperature | Storage -10°C to +60°C | ||||
| Operating +5°C to +40°C | |||||
| Image Capture | USB 2.0 high-speed | ||||
