BSC-6FA2-GL

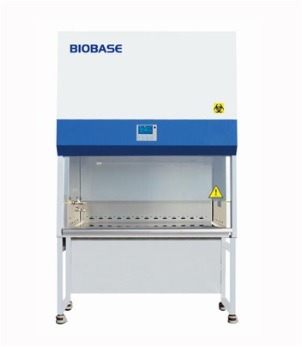

Biobase NSF Certified Class II A2 BioSafety Cabinet 6′

BSC-6FA2-GL – Biobase NSF49 Certified Class II A2 BioSafety Cabinet 6′
Biobase BSC-6FA2-GL

NSF Certified Class II A2 Biological Safety Cabinets

Features
  • Motorised front window
  • Large LCD, all information displayed
  • Automatic air speed adjustable with a filter block
  • With a memory function in case of a power failure
  • Side and back walls consist of a single piece of stainless steel
  • Interlock function: UV lamp and front window: UV Lamp and blower, fluorescent lamp; blower and front window
  • Front 10º slanted to offer operator comfort while working for extended periods; reduces glare and maximises reach into the work area

Request A Quote

Prices shown are for the United Arab Emirates only and are excluding VAT @ 5% Local Rate (Unless Otherwise Stated).

Other countries may incur additional import duties – Please Contact Us for further details and pricing for your location.

Description
Specifications
Request A Quote

BSC-6FA2-GL – Biobase NSF49 Certified Class II A2 BioSafety Cabinet 6′

NSF Certified Class II A2 Biological Safety Cabinets

Features
  • Motorised front window
  • Large LCD, all information displayed
  • Automatic air speed adjustable with a filter block
  • With a memory function in case of a power failure
  • Side and back walls consist of a single piece of stainless steel
  • Interlock function: UV lamp and front window: UV Lamp and blower, fluorescent lamp; blower and front window
  • Front 10º slanted to offer operator comfort while working for extended periods; reduces glare and maximises reach into the work area
Catalog Number Description
BSC-4FA2 NSF49 Certified Class II A2 BioSafety Cabinet 4′
BSC-4FA2-GL NSF49 Certified Class II A2 BioSafety Cabinet 4′
BSC-6FA2-GL NSF49 Certified Class II A2 BioSafety Cabinet 6′
BSC-4FA2-NA NSF49 Certified Class II A2 BioSafety Cabinet 4′
BSC-6FA2-NA NSF49 Certified Class II A2 BioSafety Cabinet 6′



Models BSC-4FA2 (4′) BSC-4FA2-GL (4′) BSC-6FA2-GL (6′) BSC-4FA2-NA (4′) BSC-6FA2-NA (6′)
External Size (mm) 1383*775*2295 1383*775*2295 1873*775*2295 1383*775*2295 1873*775*2295
Internal Size (mm) 1210*660*660 1210*600*660 1700*600*660 1210*600*660 1700*600*660
Work Surface Height 750mm
Max Opening 550mm (22’’)
Tested Opening Safety height 200mm (8”) Safety height 254mm (10’’)
Airflow Volume Inflow 462m3/h
(272cfm)		 587m3/h (346cfm) 824m3/h
(485cfm)		 587m3/h
(346cfm)		 824m3/h
(485cfm)
Down flow 65%:863m3/h
(507cfm)		 60%:863m3/h
(508cfm)		 60%:1212m3/h
(713cfm)		 60%:863m3/h
(507cfm)		 60%:1212m3/h
(713cfm)
Exhaust 35%:462m3/h
(272cfm)		 40%:587m3/h
(346cfm)		 40%:824m3/h
(485cfm)		 40%:587m3/h
(346cfm)		 40%:824m3/h
(485cfm)
Front Window Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV
HEPA Filter Two, 99.999% efficiency at 0.3um, filter life indicator
Filter Guard Type Aluminium alloy frame
Noise NSF 49≤61 dB/EN 12469≤58 dB
Illumination ≥1000Lux
Display LCD Display
Waterproof Socket Two, Total consumption:≤500W
Tap Water tap*1, Gas tap *1
Ground Resistance ≤ 0.10Ω
Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz, Full load Amps: 9A, BTU/Hr: 1689
Consumption 400W 400W 500W 400W 500W
Alarm Abnormal airflow velocity; Filter replacement; Front window at unsafe height
DC Motor One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption
Material Working area: 304stainless steel
Frame and Decorative Plate: cold-rolled steel with anti-bacterial powder coating.
UV Lamp 30W 30W 40W 30W 40W
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination
Illuminating Lamp 18W*2 18W*2 22W*2 18W*2 22W*2
LED Lamp
Standard Accessories Illuminating lamp, UV lamp*2, base stand, SS water and gas taps, drain valve, waterproof sockets, stainless IV Bar with ten hooks
Optional Accessories Armrest, airflow tester, formalin fumigation steriliser, infrared steriliser, electric height adjustable base stand, remote control
Shipping Dimensions (mm) 1540*1080*1900 1540*1080*1900 2020*1080*1900 1540*1080*1900 2020*1080*1900
Shipping Weight 334kg 340kg 370kg 340kg 370kg
