Link Gulf BSC-4FA2-NA

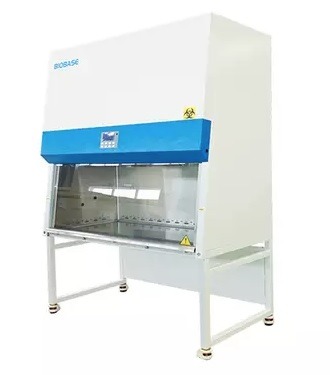

NSF Certified Class II A2 Biological Safety Cabinet
Biobase BSC-4FA2-NA

Three protection: operator, sample and environment. Airflow system: 70% air recirculation, 30% air exhaust A2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.

Advantages:
1. Motorized front window.
2. Large LCD display, all information displayed.
3. Automatic air speed adjustable with filter block.
4. With memory function in case of power-failure.
5. Side & back wall is made up of single piece stainless steel.
6. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
7. Front 10° slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.

Catalog Number

 BSC-4FA2(4′) BSC-3FA2-GL(3′) BSC-4FA2-GL(4′) BSC-6FA2-GL(6′)
BSC-3FA2-NA(3′) BSC-4FA2-NA(4′) BSC-6FA2-NA(6′)
External Size(W*D*H) 1383*775*2295mm 1087*775*2265mm 1383*775*2295mm 1873*775*229mm
Internal Size(W*D*H) 1210*600*660mm 910*600*660mm 1210*600*660mm 1700*600*660mm
Work Surface 750mm with optional base stand
Height 550mm (22’’) 520mm(20.5’’) 550mm (22’’) 550mm (22’’)
Max Opening Safety height 200mm (8”) Safety height 254mm (10’’)
Airflow Volume Inflow 462m3/h(272cfm) 441m3/h(259cfm) 587m3/h(346cfm) 824m3/h(485cfm)
Down flow 65%:863m3/h(507cfm) 60%:649m3/h(382cfm) 60%:863m3/h(507cfm) 60%:1212m3/h(713cfm)
Exhaust 35%:462m3/h(272cfm) 40%:445m3/h(259cfm) 40%:587m3/h(346cfm) 40%:824m3/h(485cfm)
Front Window
HEPA Filter		 Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV
Two, 99.999% efficiency at 0.3μm, filter life indicator
Filter Guard Type
Noise		 Aluminum alloy frame , glass filter paper
NSF 49≤67 dB/EN 12469≤65 dB
Illumination
Display		 ≥1000Lux
LCD Display
Waterproof Socket
Tap
Ground Resistance		 2, Total consumption:≤500W
Water tap*1, Gas tap *1
≤ 0.10Ω
Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz, Full load Amps: 9A, BTU/Hr: 1689
Consumption 500W 400W 500W 700W
Alarm
DC Motor		 Abnormal airflow velocity; Filter replacement; Front window at unsafe height.
One ECM motor, 110V& 220V acceptable, Speed adjustable, high efficiency and low power consumption
Material Working area: 304stainless steel
Frame and Decorative Plate: cold-rolled steel with anti-bacteria power coating
UV Lamp 30W 20W 30W 40W
Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination
Illuminating Lamp 8W*2 10W*2 8W*2 22W*2
LED lamp
Standard Accessory Illuminating lamp, UV lamp *2, Base stand, SS water & gas taps, Drain valve,
Waterproof sockets, Stainless Steel I.V. Bar with 10 hooks
Optional Accessory Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer,
Electric height adjustable base stand, Remote control
Package Size (W*D*H)
Gross Weight		 1540*1080*1900mm
334kg		 1240*1060*1900mm
270kg		 1540*1080*1900mm
340kg		 2020*1080*1900mm
370kg
