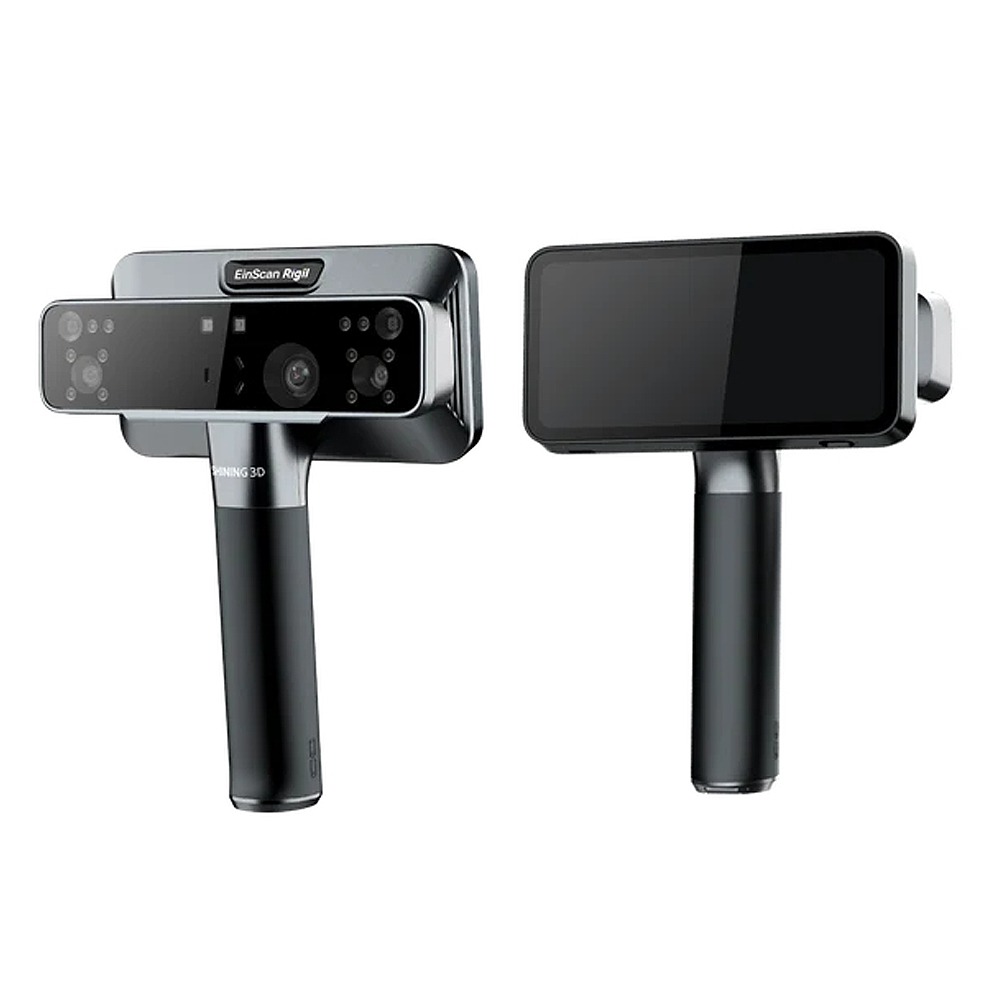

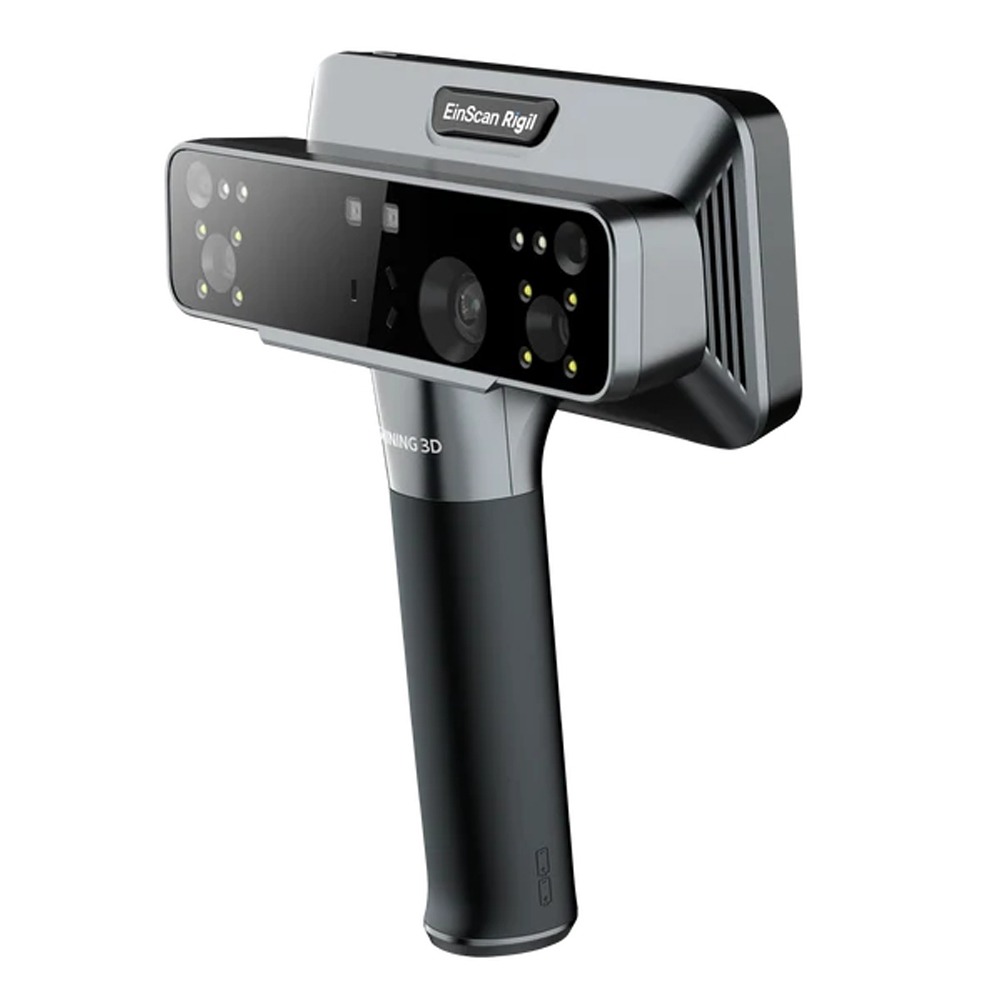

The EinScan Rigil 3D Scanner from Shining 3D is the world’s first tri-mode portable 3D scanner. It features built-in computing, wireless capabilities, and hybrid light technology.

Key Hardware & Specifications

• Display & Build – Equipped with a 6.4-inch 2K AMOLED touchscreen and dual 5500mAh replaceable batteries for cable-free, field-ready operation.
• Internal Specs – Powered by 32GB LPDDR5 RAM, 64GB eMMC storage, and a 1TB SSD ROM.
• Scanning Speed & Accuracy – Delivers scanning speeds over 4 million points/sec. Volumetric accuracy of 0.04 + 0.06 mm/m. Resolution up to 0.05 mm.
• Environment Adaptability –Works outdoors in direct sunlight (up to 100,000 lux). It captures dark or reflective metals without needing a scanning spray.

Light Sources & Work Modes

• Hybrid Light Sources: Combines crossed blue laser lines, parallel blue laser lines for fine details, and an infrared (IR) VCSEL projector for rapid mid-to-large-size scanning and portraits.

Three Operating Modes

• Standalone Mode: Operates completely cable-free with onboard data processing, previewing, and editing.
• Wireless PC Mode: Connects via Wi-Fi 6 to leverage computer processing power.
• Wired PC Mode: Uses a USB-C or tethered connection for maximum speed and data stability in complex environments.
• Marker-Free Tracking: Uses AI-powered tracking and geometric/hybrid alignment to scan objects without needing physical sticker markers.

Software Ecosystem

• On-Device & PC Software: Runs on the EXScan Rigil scanning interface, paired with EXModel for reverse engineering workflows and BlueStar Mapping.
