Einstar Rigil Lite 3D Scanner | Lite to Start. Light to Create.

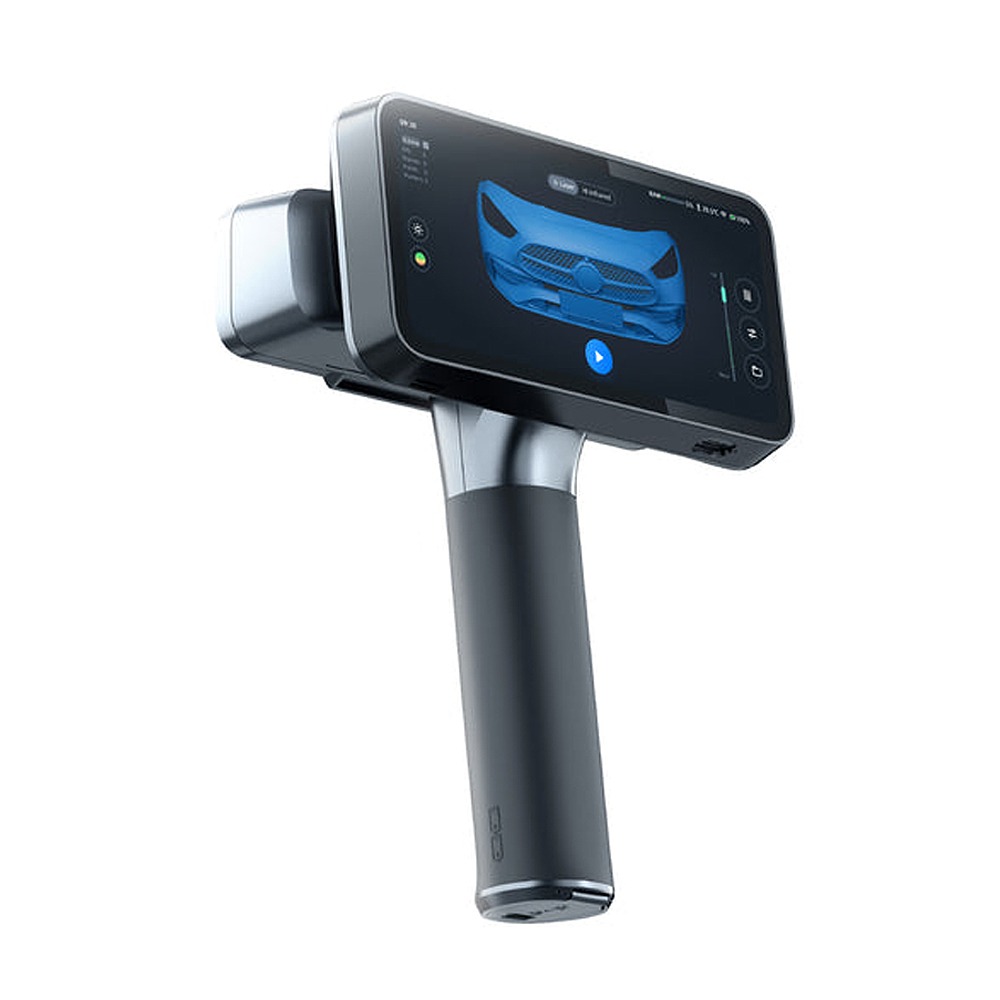

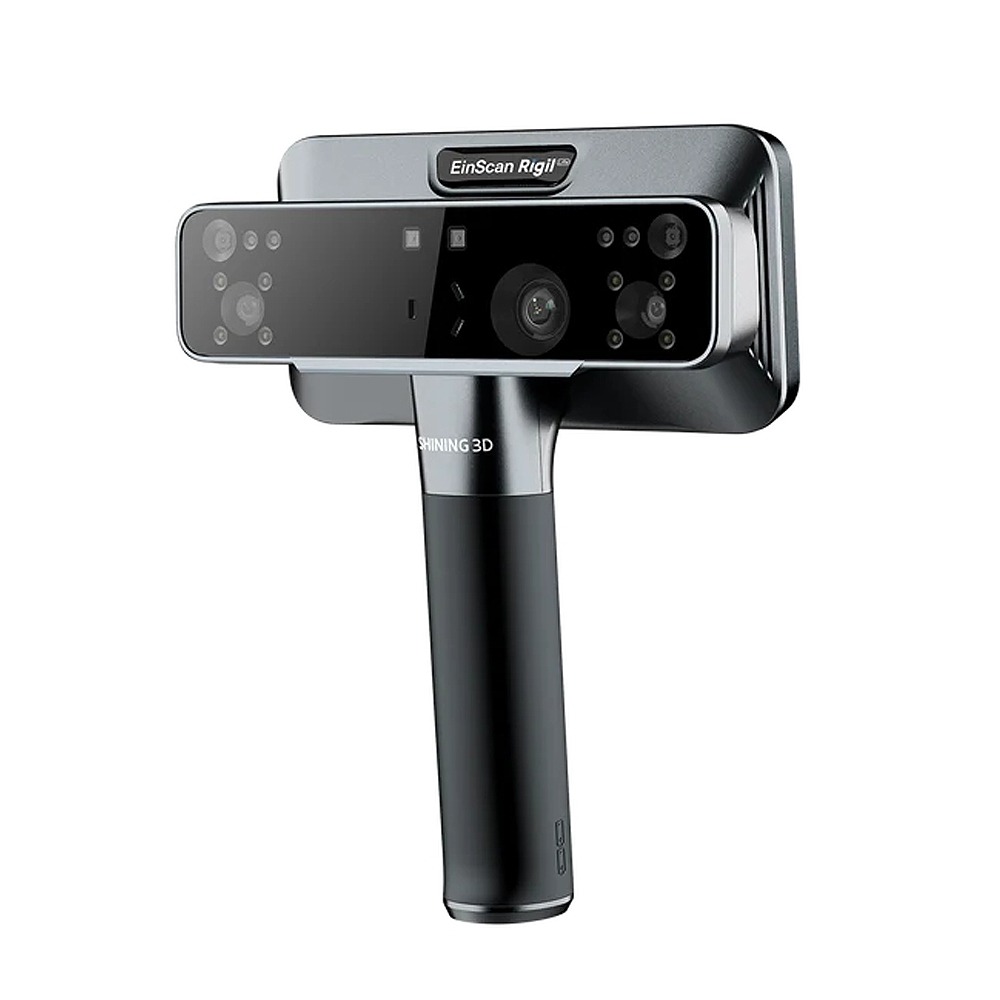

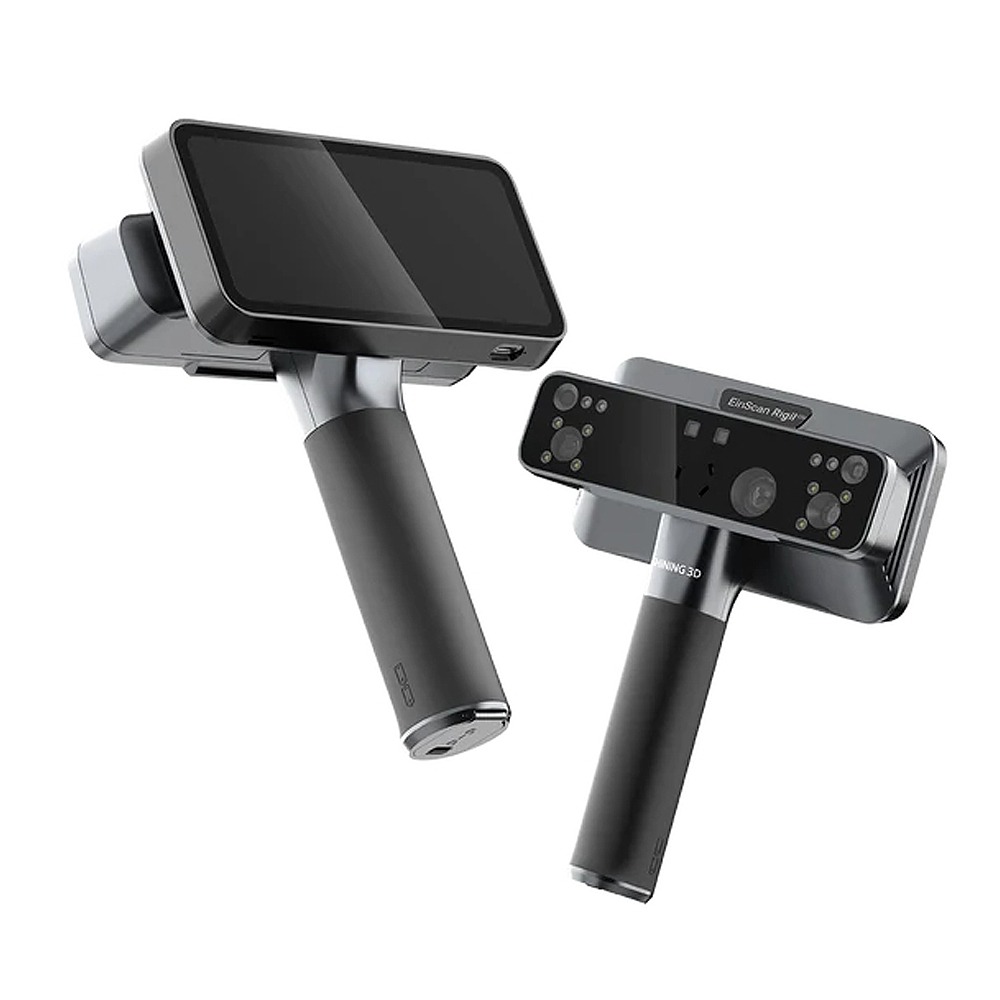

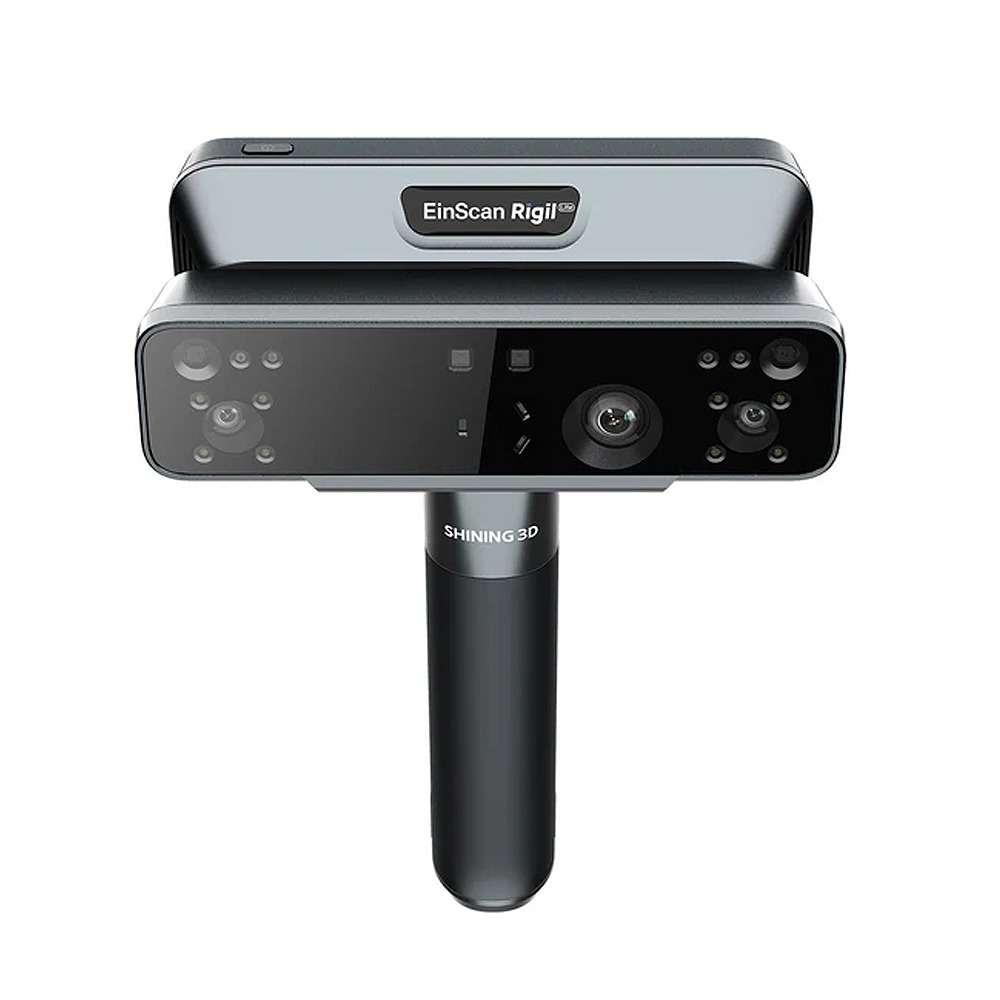

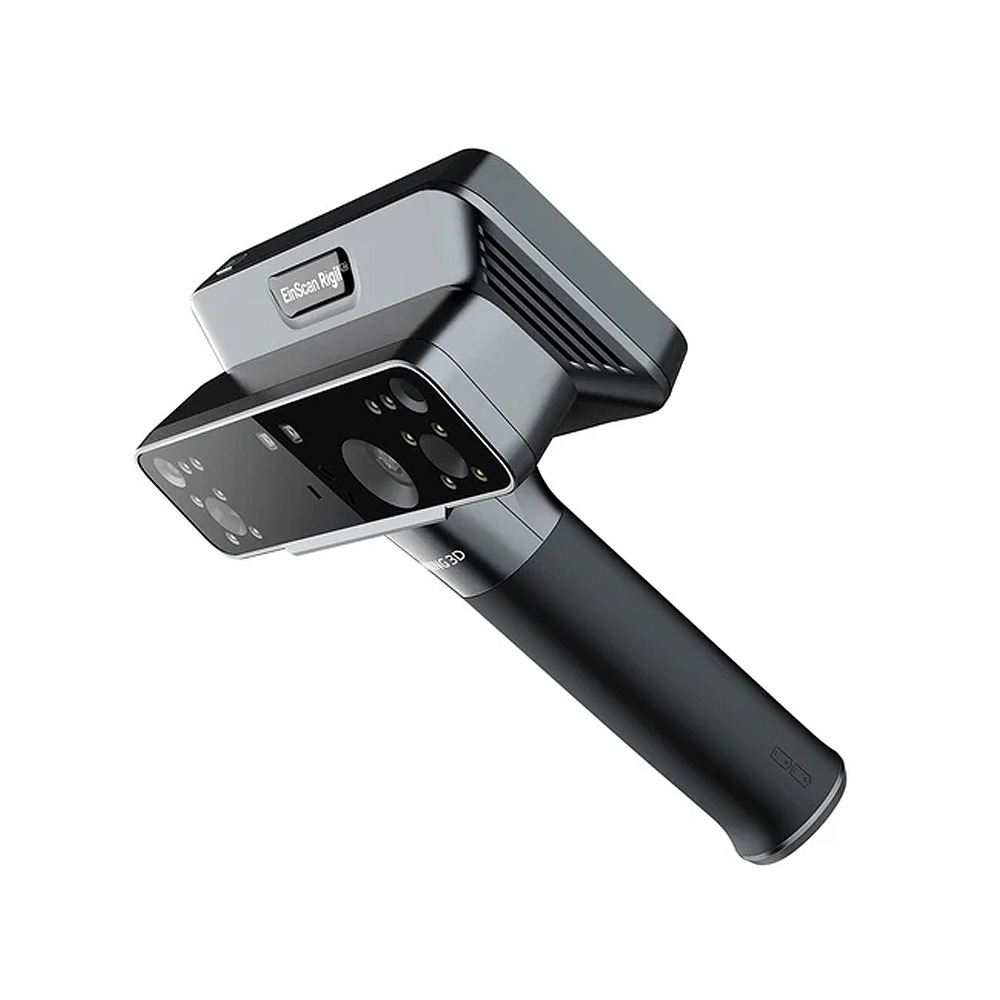

The Einstar Rigil Lite by Shining 3D is an all-in-one, portable 3D scanner. It integrates computing, a built-in display, storage, and batteries. All in a single handheld unit without requiring a laptop or tethered computer.

Key Features & Technology

• All-in-One Design: Features a 6.4-inch 2K AMOLED touchscreen, 24GB RAM, and 512GB storage capacity. Allows users to scan, process, edit, and export models right on the device.
• Hybrid Light System: Combines 17 + 17 crossed blue laser lines (for speed and wider coverage). 7 parallel blue laser lines (for fine details and sharp edges) and an infrared (IR) VCSEL projector (for rapid capture of large objects and portrait scanning).
• Resolution & Accuracy: Delivers a resolution up to 0.05 mm and a volumetric accuracy of up to 0.04 + 0.06 mm/m.
• Marker-Free & AI Tracking: Uses AI-powered tracking and a super-hybrid alignment system that supports feature-based, marker-based, texture-assisted, and global marker alignments, reducing or eliminating the need for physical markers.

Colour Texture

Includes a 5 MP full-colour texture camera available in both laser and infrared modes.

Scene-Adaptive

Built to handle dark and reflective materials (without requiring spray) and outdoor sunlight conditions.

Power & Portability

• Comes with dual swappable 5500 mAh batteries and an external standalone charger.
• Total net weight of about 870 g (batteries included).
• Supports standalone, Wi-Fi wireless, and wired PC-connected modes.
