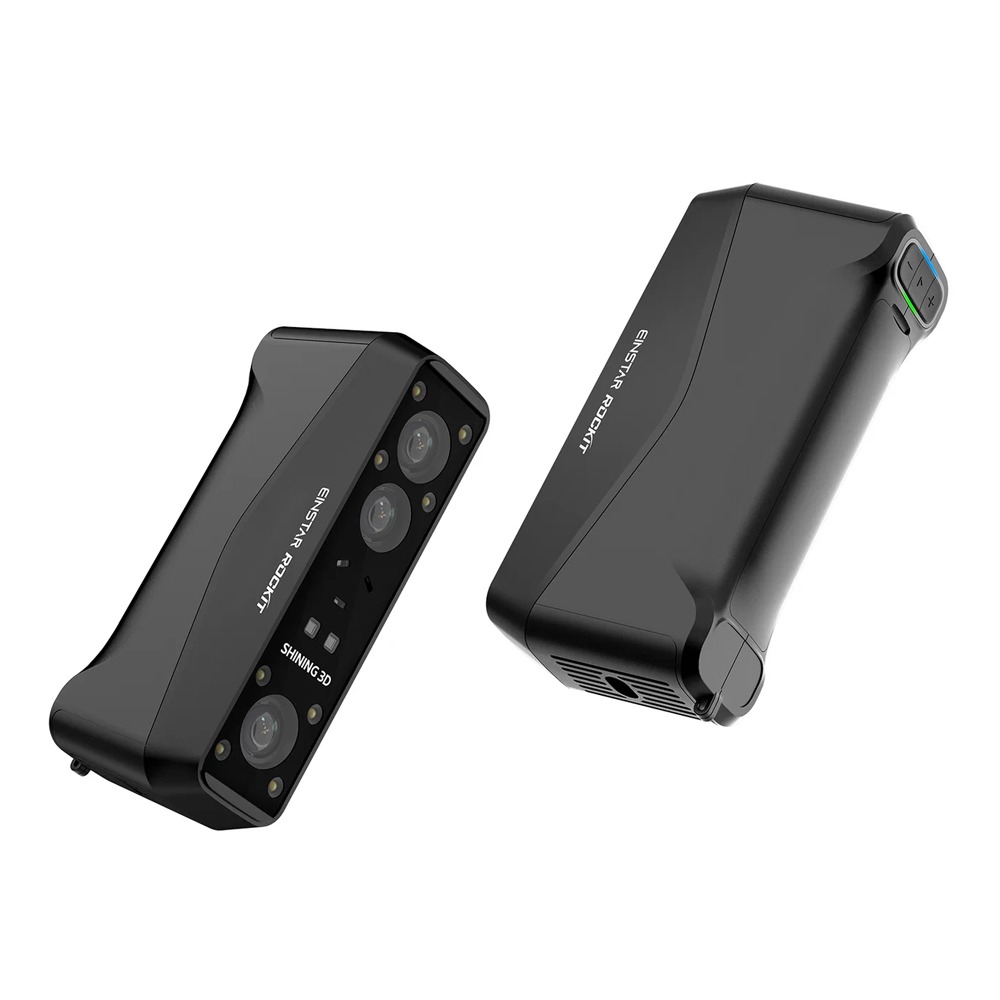

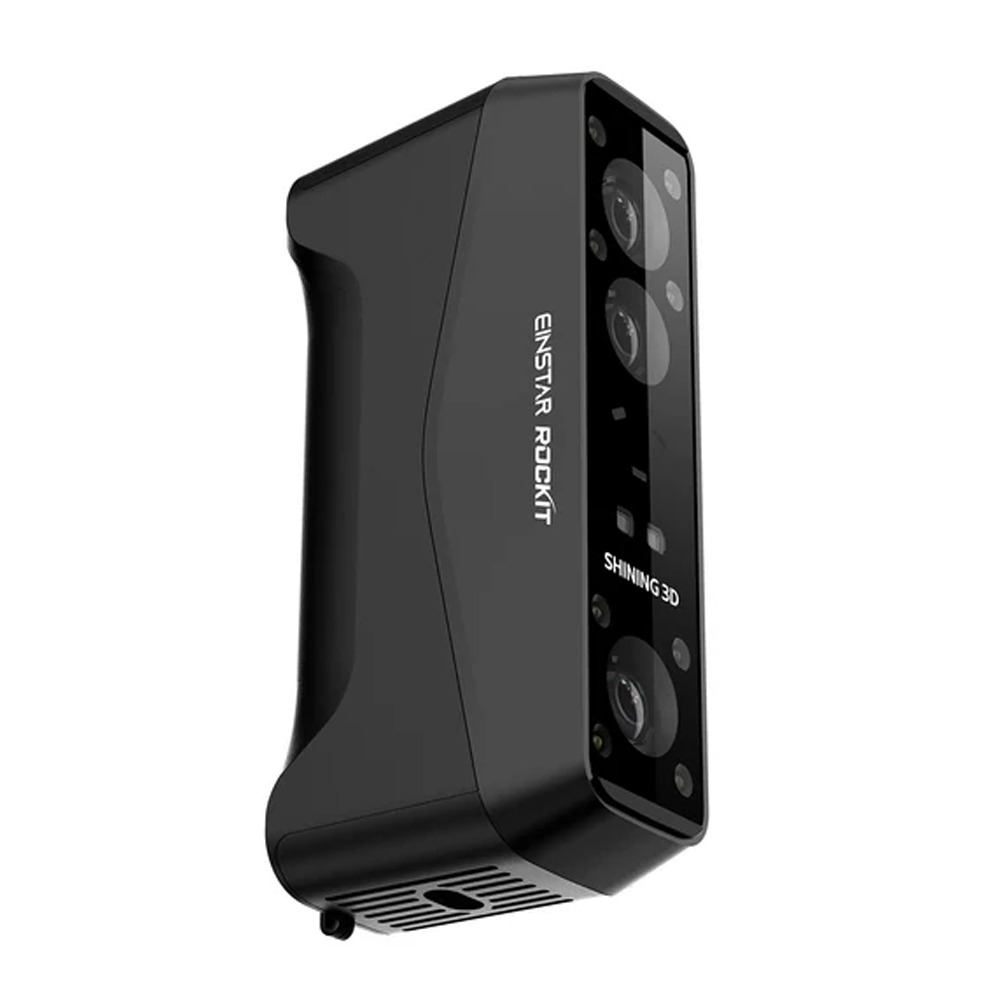

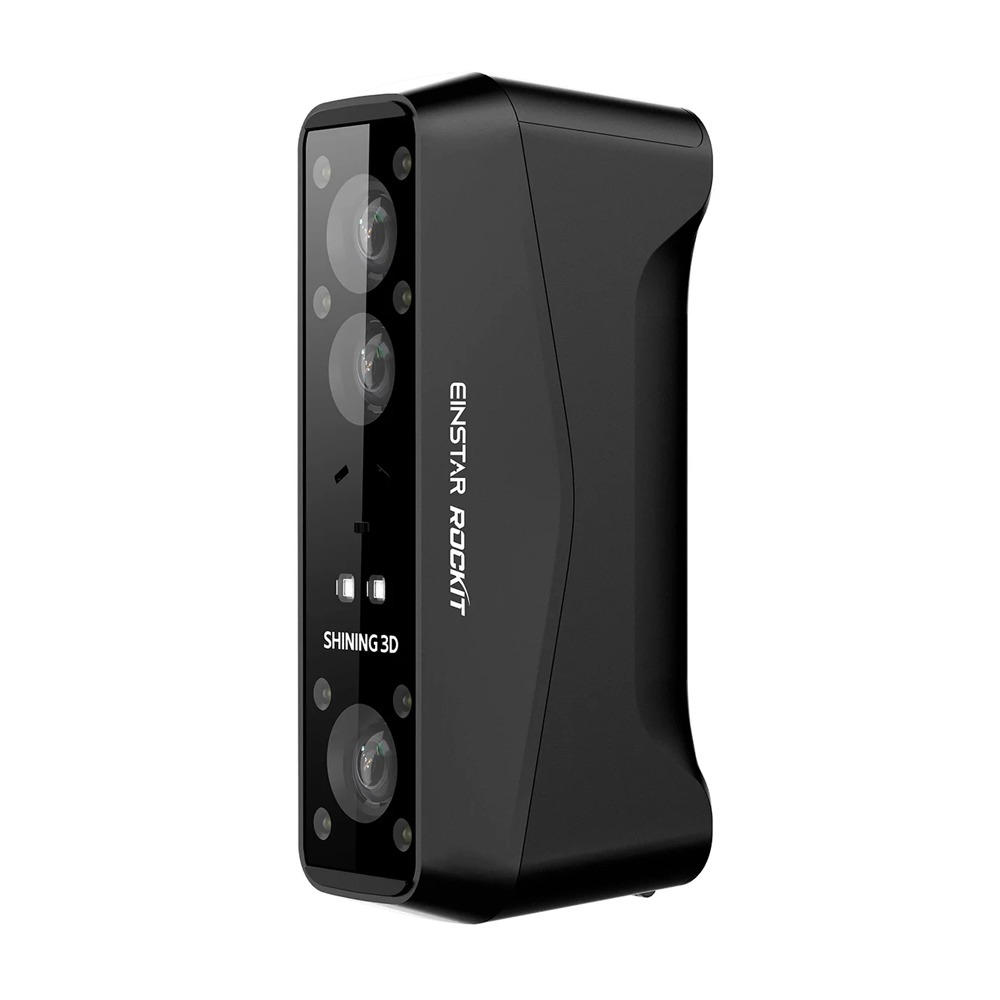

Einstar Rockit 3D Scanner

Einstar Rockit is a must-have wireless 3D scanner that brings pro-level performance to your palm. With a built-in Wi-Fi module and marker-free capability, it’s ready to scan whenever and wherever you are. Dual light sources, compact body, and now with smart audio feedback — Rockit makes 3D scanning simple and seamless.

Key Features and Technology

• Dual Illumination Modes: Combines dual blue laser scanning (38 crossed lines for fast surface capture and 7 parallel lines for fine details) with an IR (infrared) VCSEL mode for larger objects and outdoor use up to 110,000 Lux.
• True Wireless Design: Built-in Wi-Fi and a swappable 5,500 mAh battery provide about 3 hours of continuous scanning per charge, eliminating cable drag during field or automotive work. You can also connect via a USB Type-C cable for wired stability and simultaneous charging.
• Difficult Surface Handling: Engineered to scan dark plastics, black-painted components, and shiny or metallic finishes cleanly without always requiring traditional matte scanning sprays or physical markers.

Portability and Build

Weighs approximately 420g to 425g (with the battery attached) and measures roughly 130 x 37 x 61 mm, making it small enough to slip into a pocket or small bag.

Cameras and Resolution

Features a 2MP×2 3D camera setup and a separate 5MP colour texture camera. Laser scan resolution ranges down to 0.05 mm.

Software & Output

• EXStar Hub: Next-generation software platform used for point cloud generation, data processing, meshing, and trimming.
• Supported Export Formats: STL, OBJ, PLY, 3MF, and ASC.

System Requirements

• Windows: Windows 11 with an NVIDIA RTX 3060 graphics card and 32GB RAM minimum (or higher specs like an Intel Core i7-13700H configuration are recommended).
• macOS: Apple macOS Tahoe with M1/M3 and 16GB RAM minimum.
