Einstar Trak 3D Scanner – Wireless Marker-Free Tracking System

The Einstar Trak by SHINING 3D is the world’s first wireless, dual-form, marker-free 3D tracking and scanning system.

Key Features and Modes

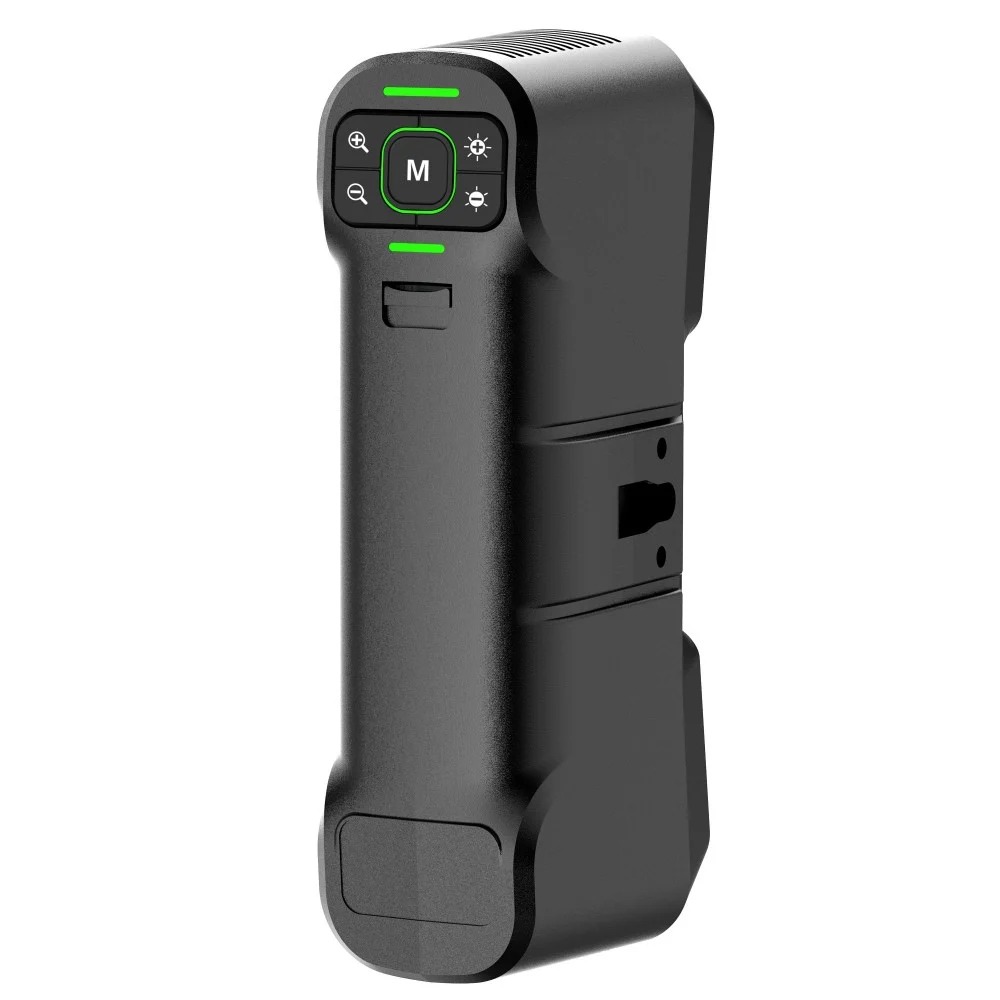

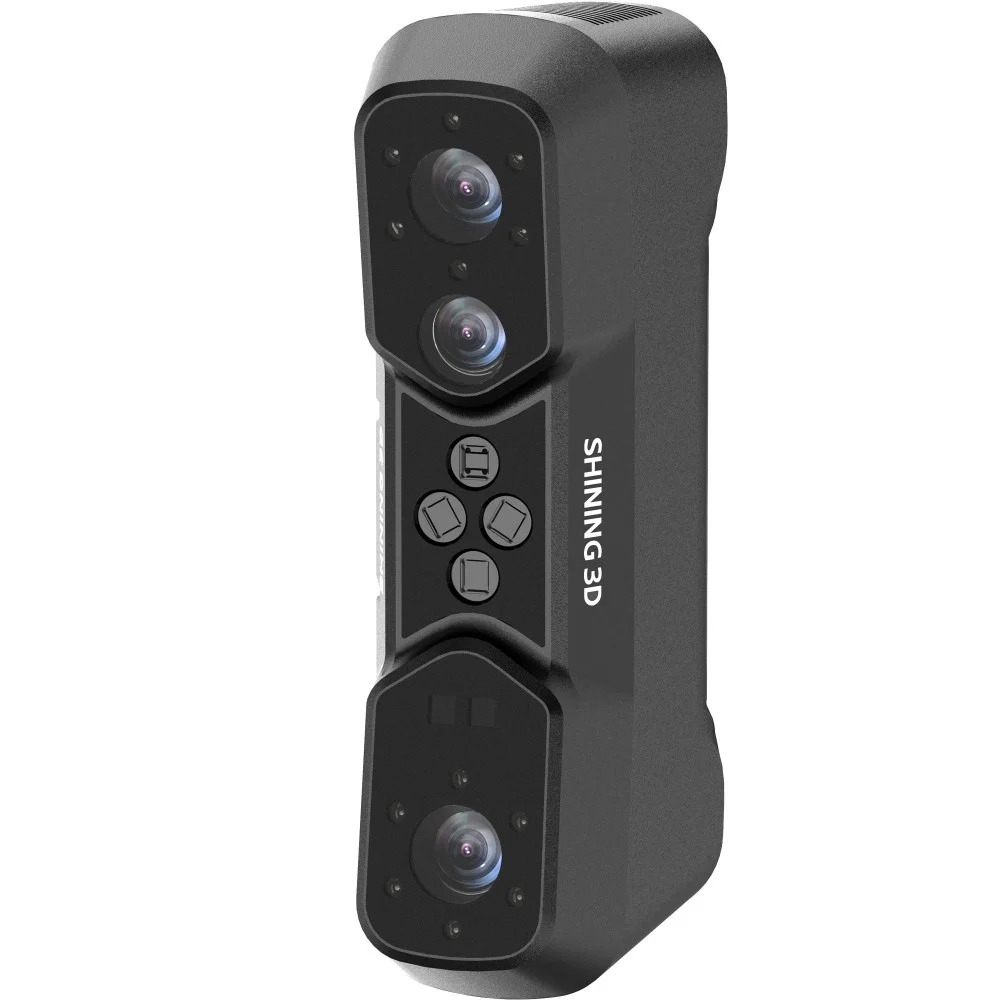

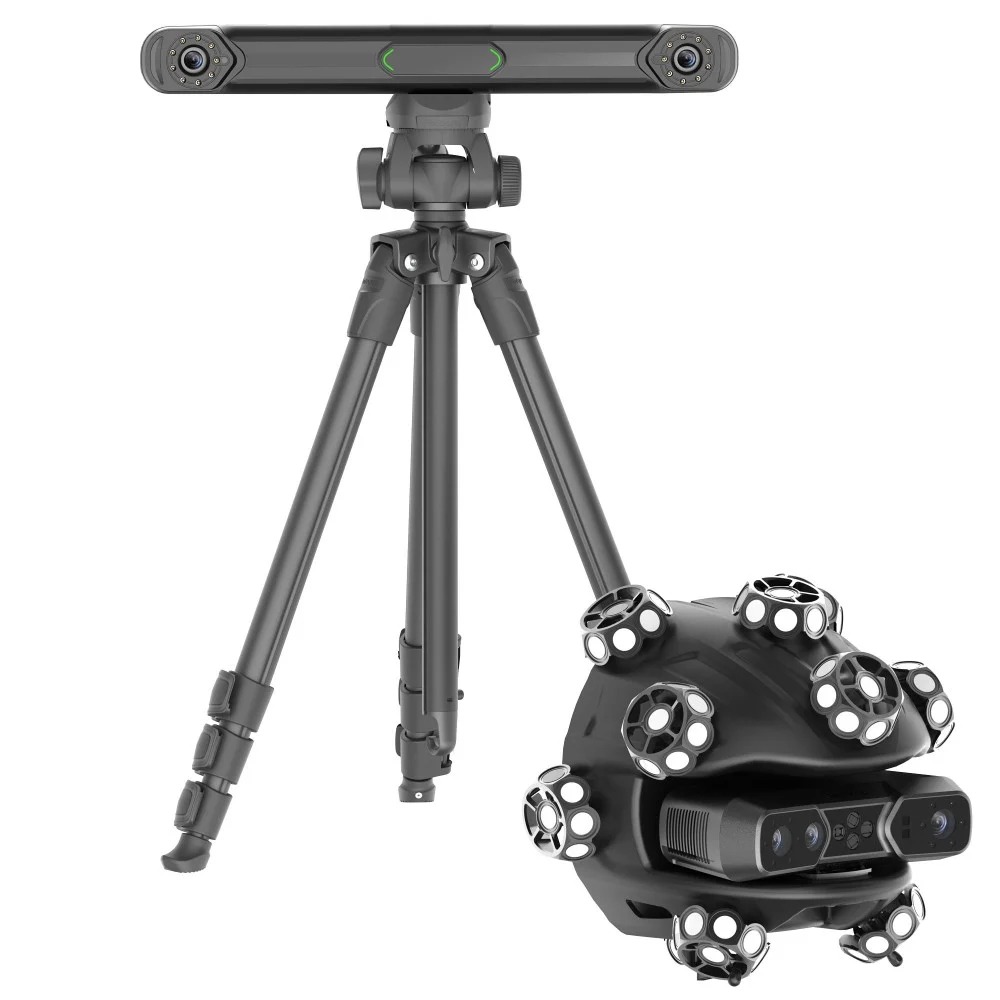

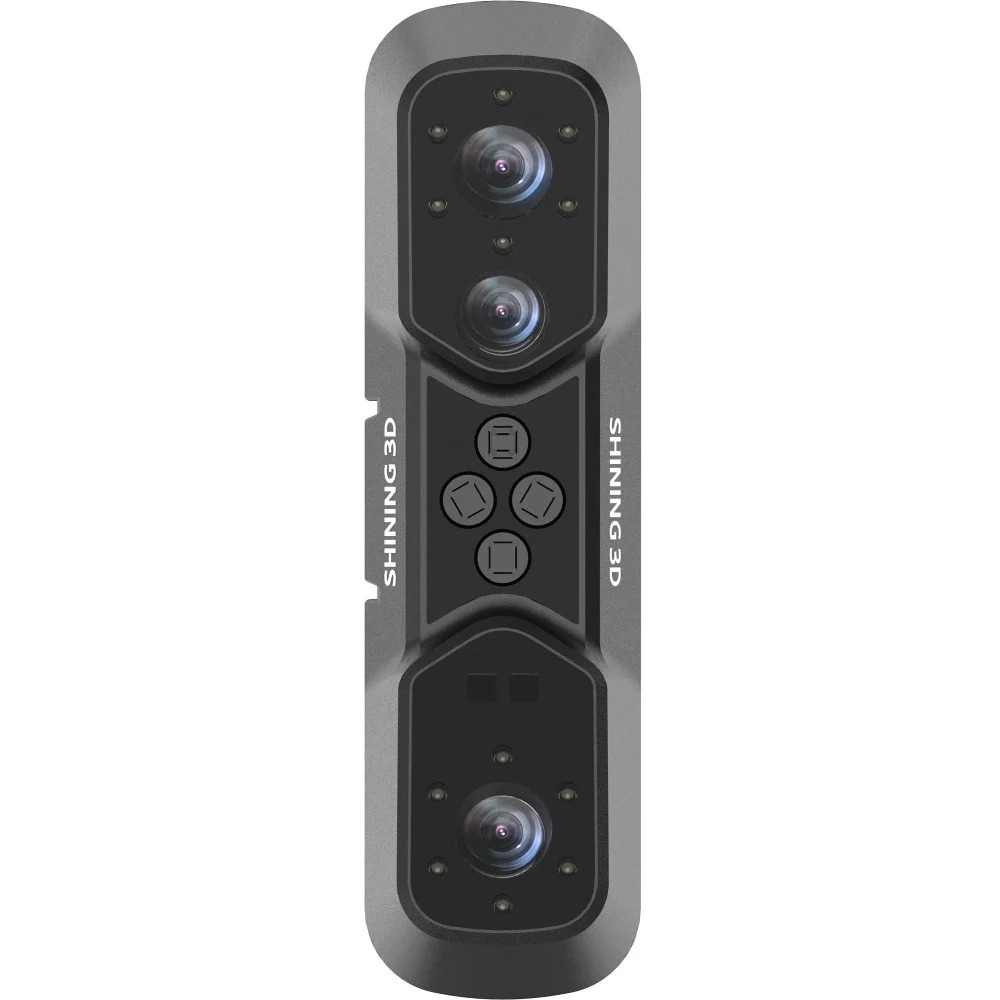

• Dual-Form Design: Functions as an optical tracking system for medium-to-large objects, and the scanner can be detached to operate as an independent, wireless handheld laser scanner for tight spaces and detailed parts.

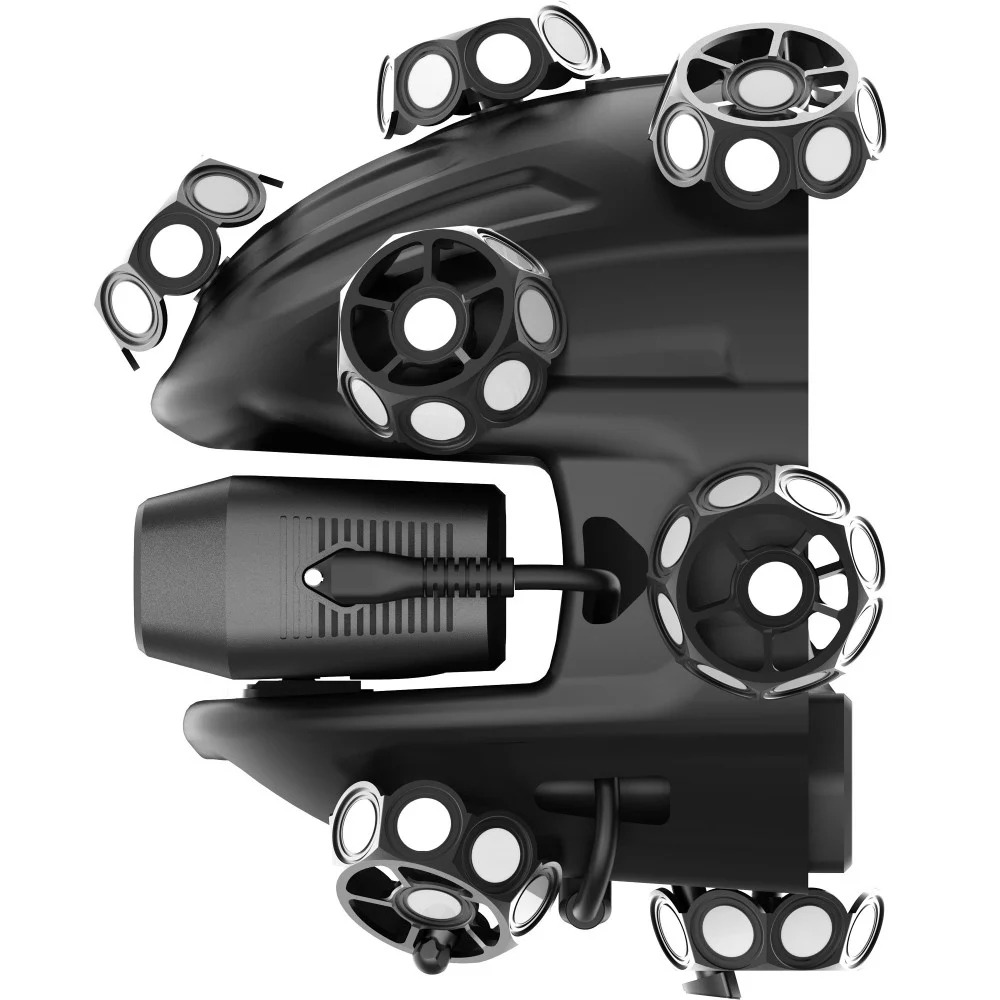

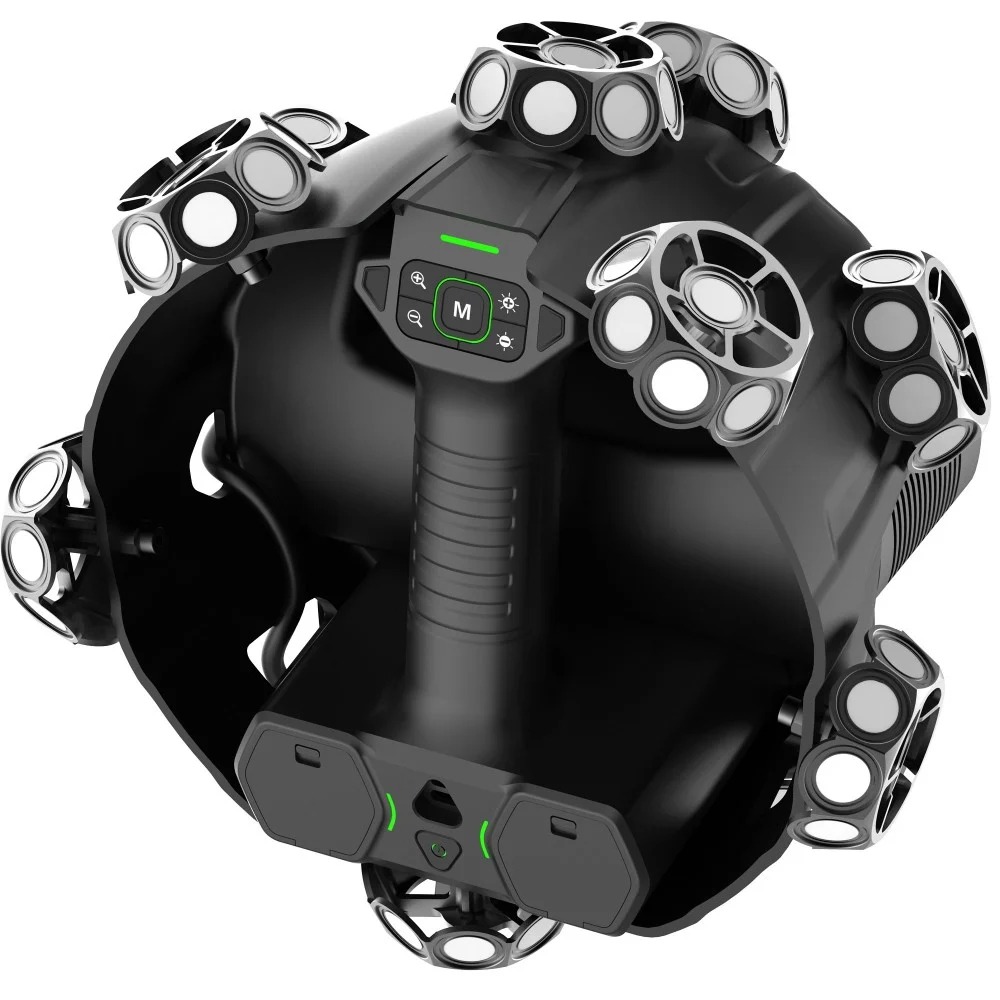

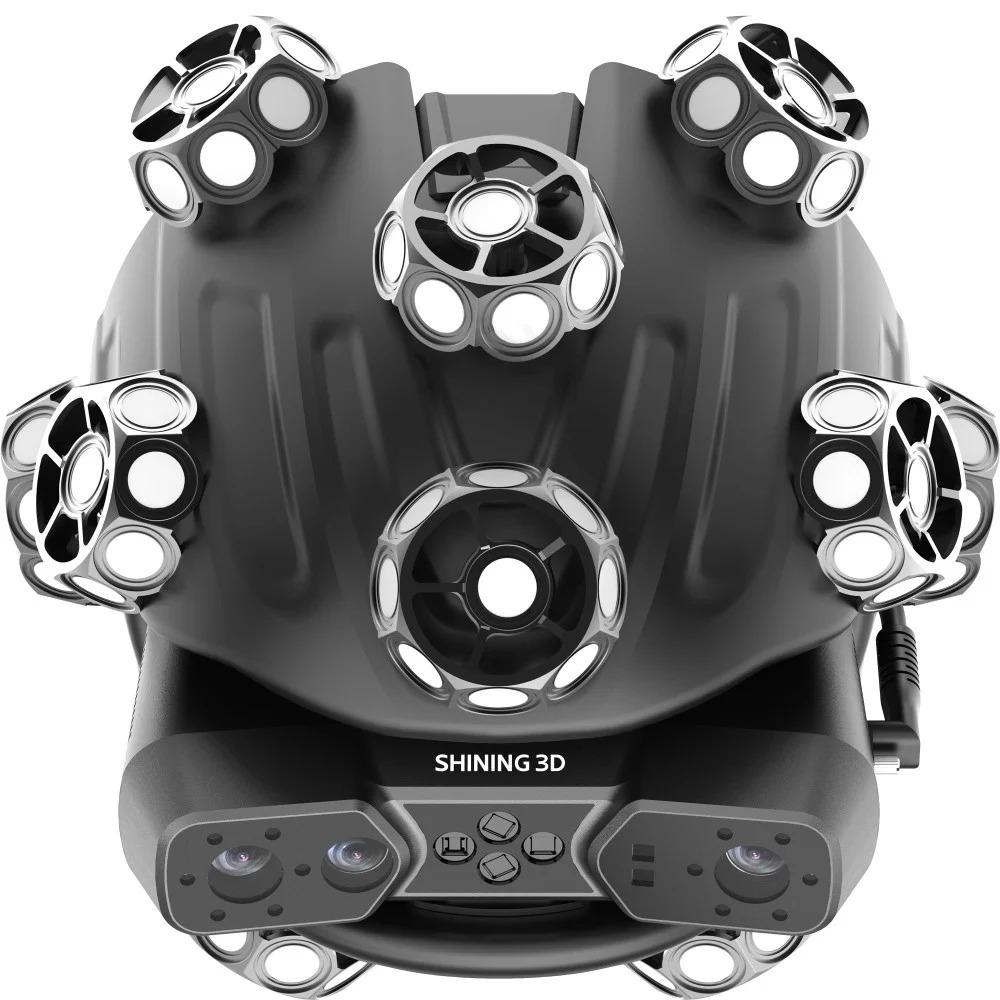

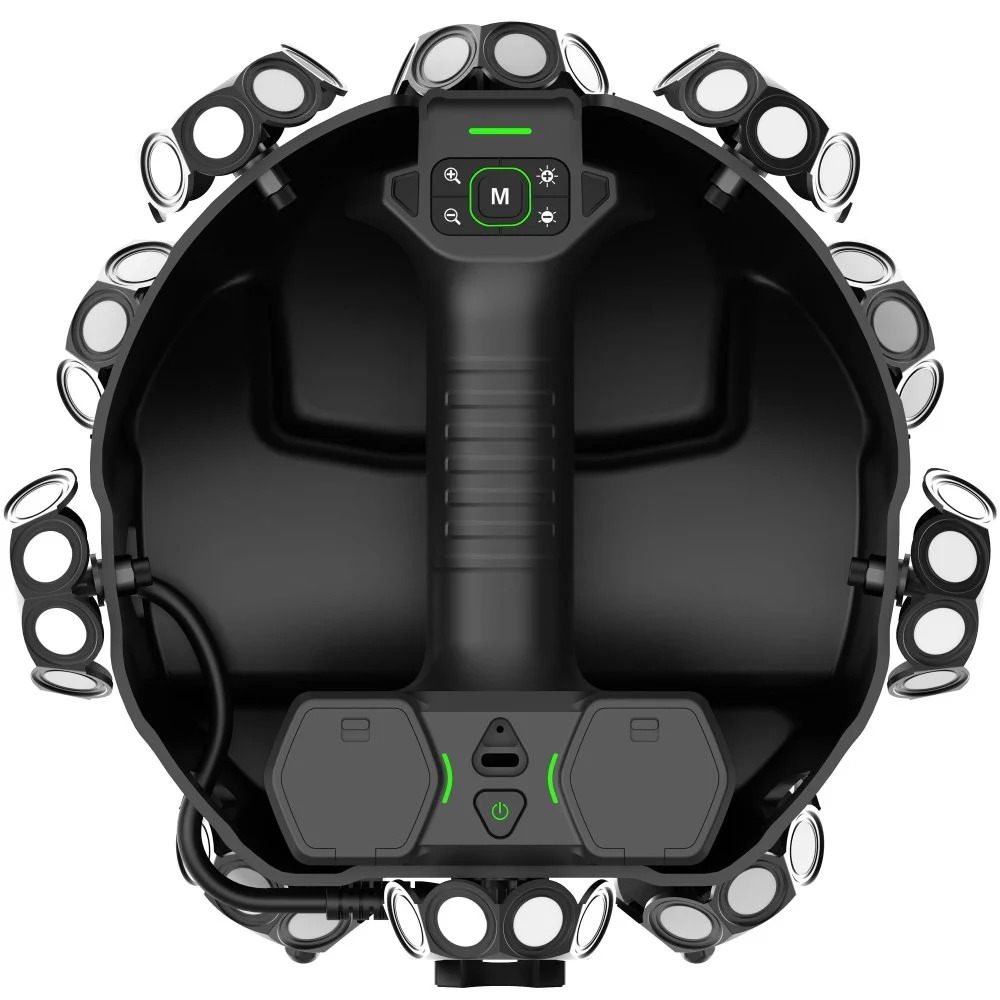

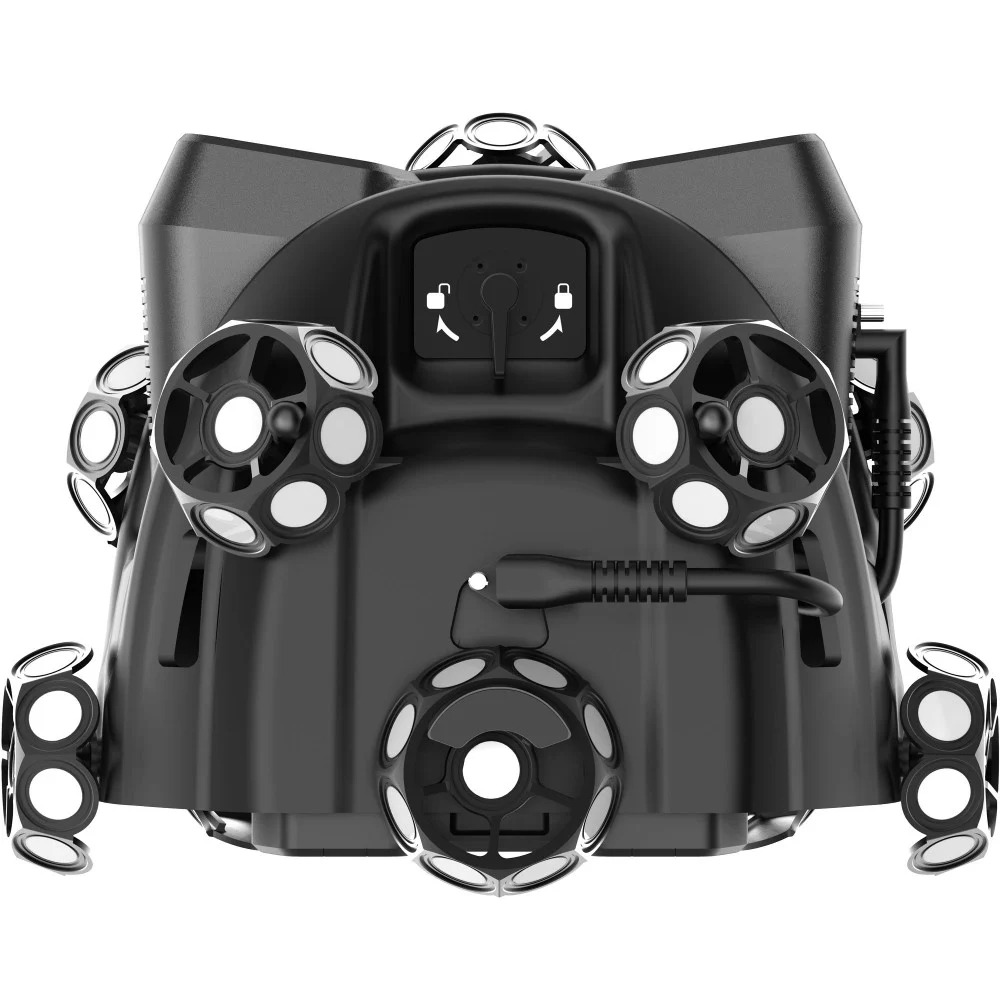

• Marker-Free Tracking: Uses built-in retroreflective markers on the spherical scanner frame rather than requiring you to stick physical markers all over the car, boat, or sculpture you are scanning.

Three Laser Scanning Modes

• 19 + 19 Crossed Laser Lines: For fast, high-efficiency scanning of large areas.
• 7 Parallel Laser Lines: For fine details and sharp edges.
• Single Line: For deep holes and tight geometry.

Resolution and Accuracy

Delivers up to 0.05 mm resolution and supports scanning distances up to 4 meters.

Environmental Adaptability

Works indoors and outdoors (even in strong sunlight up to 110,000 lux) and handles black or reflective surfaces well.

Battery Life

Up to 5.5 hours in tracker mode and 3.5 hours in handheld mode, using hot-swappable batteries.

Software Included

Bundled with EXScan Trak (scanning software) and EXMeasure (dimensional inspection and verification software).
