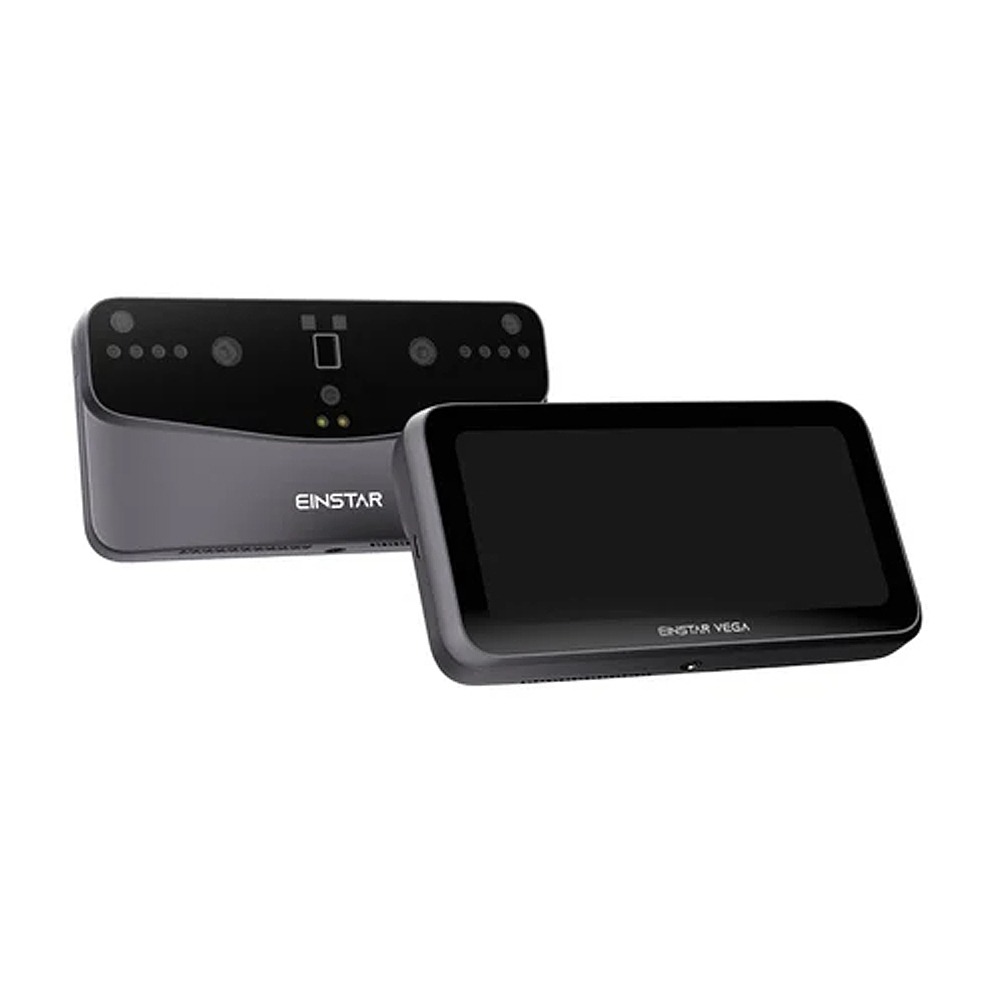

Einstar Vega 3D Scanner
The Einstar Vega by Shining 3D is a wireless, all-in-one handheld 3D scanner. It is designed to operate independently without a tethered computer.
Request a Quote
Prices shown are for the United Arab Emirates only and exclude VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties.
Please Contact Us for further details and pricing for your country or location.
Einstar Vega 3D Scanner
The Einstar Vega by Shining 3D is a wireless, all-in-one handheld 3D scanner. It is designed to operate independently without a tethered computer.
Includes a 48MP RGB camera for vivid colour and texture mapping.
Capable of outdoor scanning in direct sunlight up to 100,000 lux.
Features Wi-Fi 6, low-latency wireless screen casting and USB-C file transfer. Full integration with SHINING 3D Cloud and StarVision PC processing software (compatible with Windows 10/11 and Apple Silicon macOS).
Weighs 535 grams with an aluminium body and IP50 dust protection.
| EINSTAR VEGA |
| Scan Mode |
| HD Mode |
| Fast Mode |
| Light Source |
| HD Mode: Infrared MEMS |
| Fast Mode: Infrared VCSEL |
| Point Distance |
| HD Mode: 0.05mm～3mm |
| Fast Mode: 0.5mm~10mm |
| Capture Frame |
| HD Mode: up to 15 fps |
| Fast Mode: up to 20fps |
| Working Distance |
| HD Mode: 100-350mm |
| Fast Mode: 270-1500mm |
| IR Camera Resolution |
| HD Mode: 2MP |
| Fast Mode: 1.3MP |
| Align Mode |
| Feature; Texture; Markers; Hybrid |
| Colour Camera Resolution |
| 48 MP |
| Output Formats |
| ply; stl; obj; asc |
| Outdoor Scan |
| Yes |
| Scanner Body Weight |
| Limited edition: 643g |
| Regular edition: 535g |
| Scanner Size |
| 180mm*95mm*26.5mm |
| (L*W*H) |
| CPU |
| 8-core CPU, 2.4GHz |
| RAM |
| 32 GB LPDDR4 Memory |
| Internal Hard Drive |
| 32GB eMMC + 512GB SSD |
| Power Charger |
| 65W fast charging, supports PD/PPS protocols |
| Interface |
| Wi-Fi 6, USB Type C |
| Touchscreen |
| 6.4” 2K OLED |
| Supplemental Light |
| 10 |
| IMU |
| 6 DoF |
| Operating Temperature Range |
| -10~40℃ |
| Operating Humidity Range |
| 0 to 90% RH (non-condensing) |
| Packing Size |
| 380*305*155mm |
| Protection Grade |
| IP50 |
| Battery |
| Built-in 5000mAh； |
| External power bank charging supported |
| Supported OS |
| No computer required for 3d scanning operation; |
| StarVision（Data processing program on PC）：Windows10/11(64-bit); macOS |
| Recommended PC configuration: Intel i7, 32 GB RAM; macOS 11.0 ( on Apple chip ) |
