FJD Trion P1 LiDAR Scanner

Reality capture made easy – Whether you are a seasoned laser scanning professional or just 3D-curious, a walk around the site with the P1 lets you digitise your environment quickly and accurately.

Indoor, Outdoor, Underground, all Day Long

Wherever you go, the P1 can capture what you see. You can map the environment with intricate details inside and outside. This includes ornate architecture and hidden infrastructure. In addition, you can record everything from forensic evidence to urban vegetation analysis. Powerful SLAM technology enables the P1 to work in direct sunlight or even at night. It also works in locations that may be inaccessible with traditional methods.

Compact Yet Mighty

Pick up the FJD Trion P1 whenever you want to take a closer look at your world. Weighing in at only 1 kg or slightly over 2 lbs, the P1 fits in a messenger bag. It can work all day with easy battery swaps. As a result, you can recreate your environment in minutes.

From scan to deliverable: a full workflow

• Capture – Walk and scan with the P1, while viewing the real-time point cloud data on your mobile device via Trion Scan. Check for data completeness and note the loop closure numbers to ensure enough data is captured for proper post-processing.
• Analyse – The P1 produces universal point cloud data formats in las, pcd, pts, ply. Download and import the field data into Trion Model or a compatible third party software program to classify, register, and calculate point cloud data for your specific application. Scan to post-processing time ratio is about 3:1.
• Deliver – Generate deliverables such as contour maps, distance, area, and volume calculations, floor plans, tree and forest analyses, and 3D models like BIM, DEM, and 3D mesh.
• Grow – Save time and labor on fieldwork. Eliminate rework and errors that come with manual measurements. Keep your teams focused on the most valuable tasks, and offer new services and deliverables to your clients to grow your business.

Seamless Integration into FJD Trion Software Ecosystem

Streamline the workflow from point cloud capture, data processing, to deliverable sharing, giving you a smooth project experience.

FJD Trion Scan​​

Data collection – Real-time app control. Scan file management

FJD Trion Model

Data processing – Generate construction, forestry, mining reports, and more.

FJD Trion Model for Tablets

Generate Deliverables – iPad and Android support, on-site post-processing and preview

FJD Trion Model Web

Share and collaborate – Share online and support collaboration across teams.

Application Scenarios

Property Management and Assessment

Assess structural integrity, plan spaces, and identify areas in need of repair or renovation. You can also reduce uncertainty in investment decisions with insights from a rich spatial dataset.

Public Safety

Leverage point cloud data to enhance disaster preparedness and recovery plans. Quickly record evidence and crime or accident scenes for immediate and accurate forensic documentation.

Architecture, Engineering and Construction

Make more informed decisions on your projects from blueprint to QA/QC with building surveys, scan to CAD&BIM, as-built documentation, floor plans, and stockpile volumes.

Media and Entertainment

Craft new realities based on real-world inspirations. Whether you’re creating video games, virtual tours, or cinematic environments, capture the essence of both indoor and outdoor settings.

Forestry and Vegetation Analysis

Manage and monitor tree inventory with a quick walk in the forest. Measure crowns, analyze breast diameter and tree height using precise point cloud data.

Robotics

Facilitate communications between teams before and during robotics deployment. Plan routes and enhance robot obstacle avoidance with 2D maps and 3D models of the environment.

Multiple Configurations – Integrate FJD Trion P1 into your workflow to maximize efficiency in data capture.

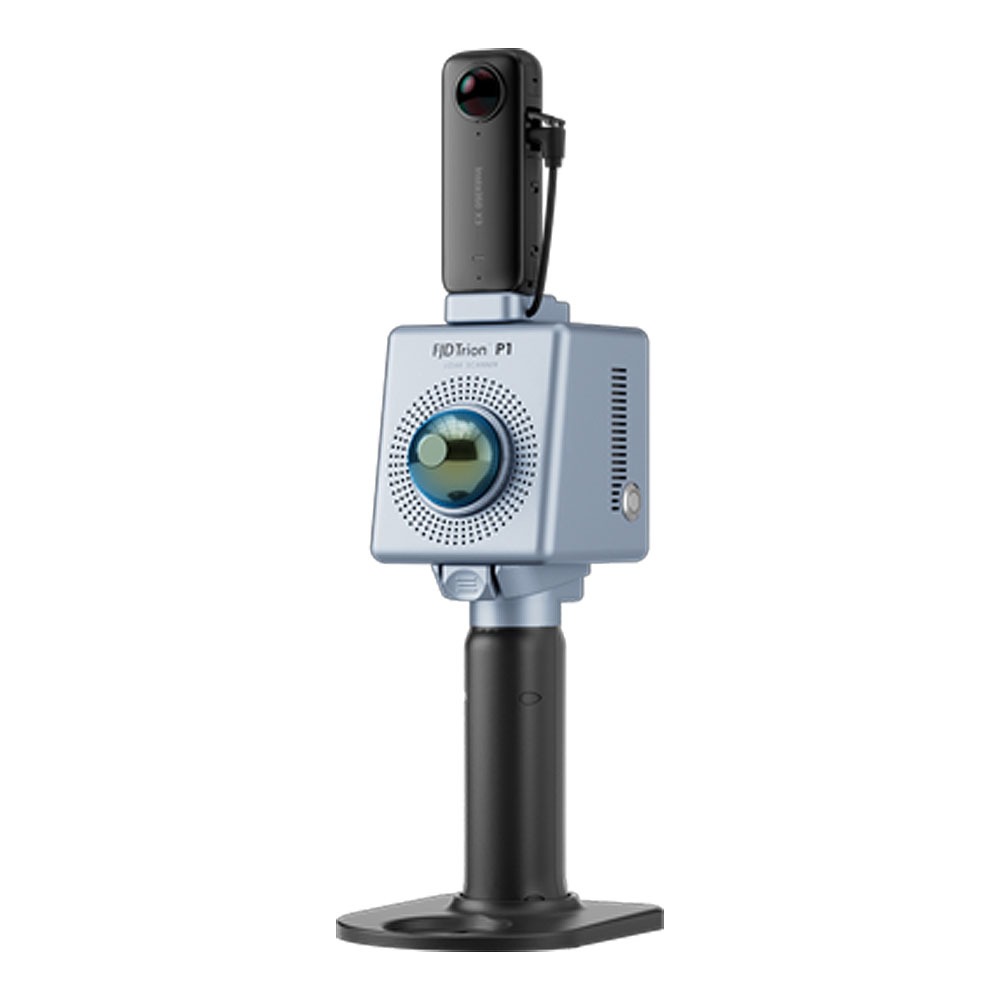

• Camera – Capture RGB videos with the panoramic camera.
• GNSS – Generate georeferenced point cloud data.
• FJD Trion Extension Pole – Map spaces that are hard to reach

Create your FJD Trion plan

Our solutions support different field based workflows across construction, forestry, mining, inspection, mapping, public safety, and more. However, the product combination depends on how your team works today and where time or money is being lost.

If you share your project type, current workflow, and main challenge, our experts can provide you with an FJD Trion solution tailored for your team.
