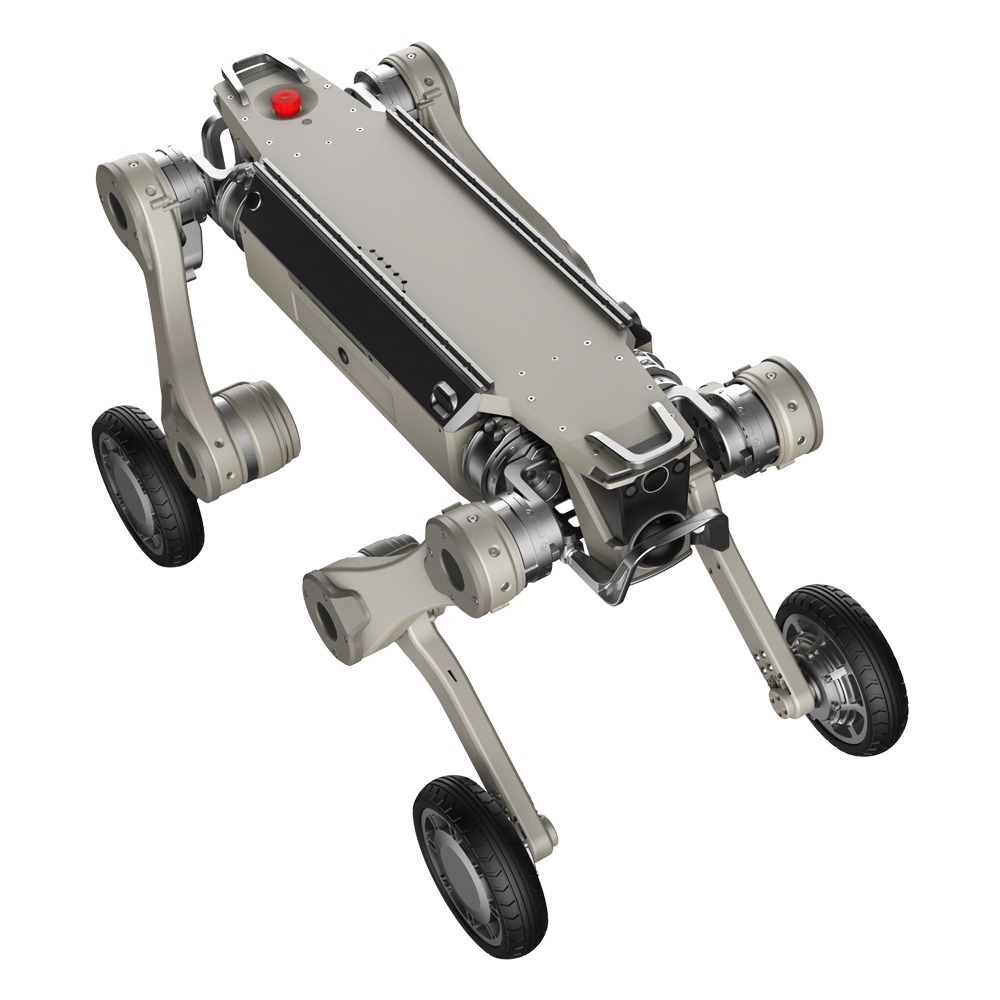

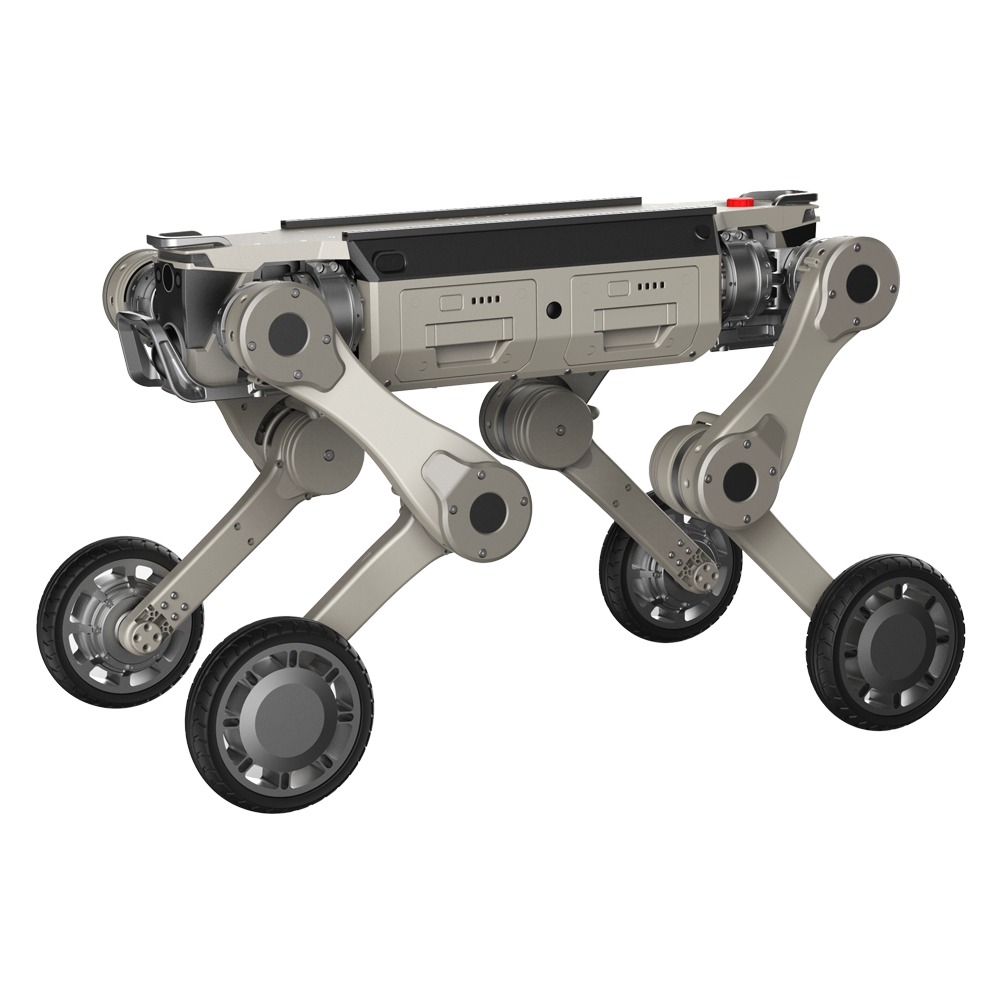

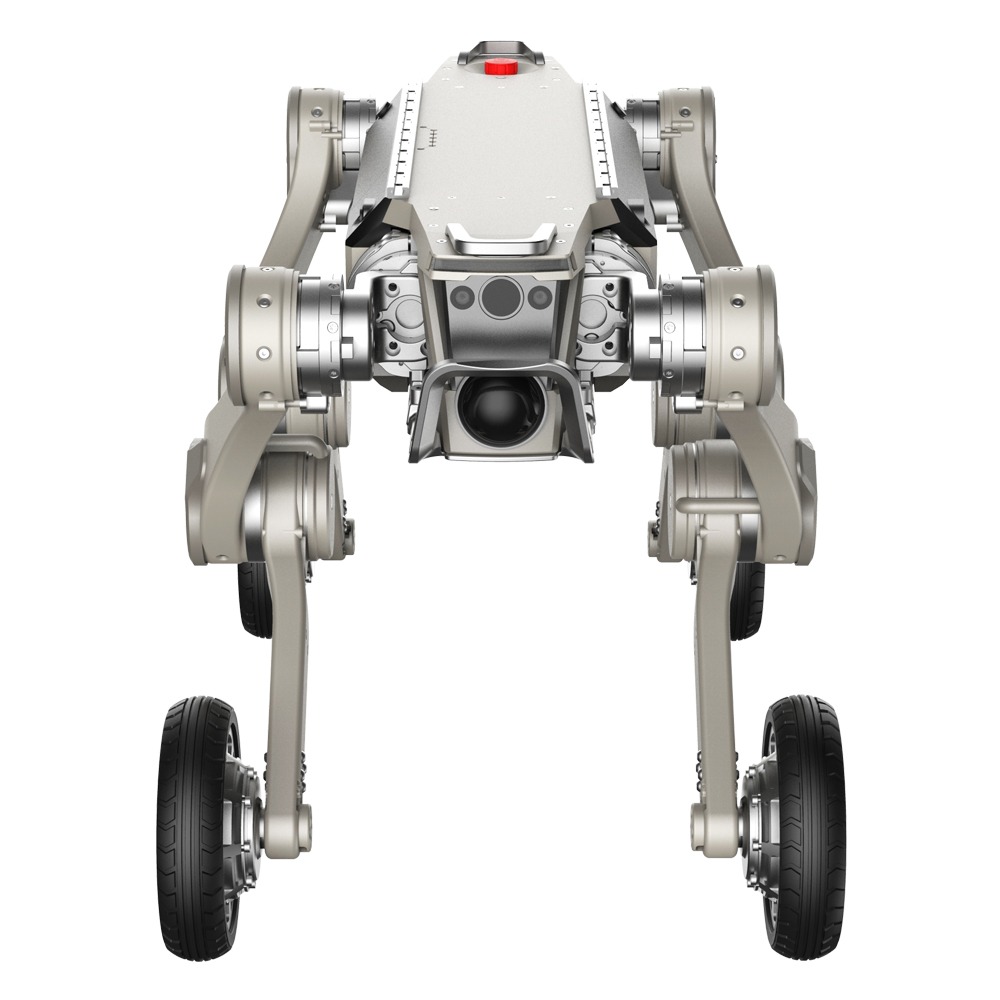

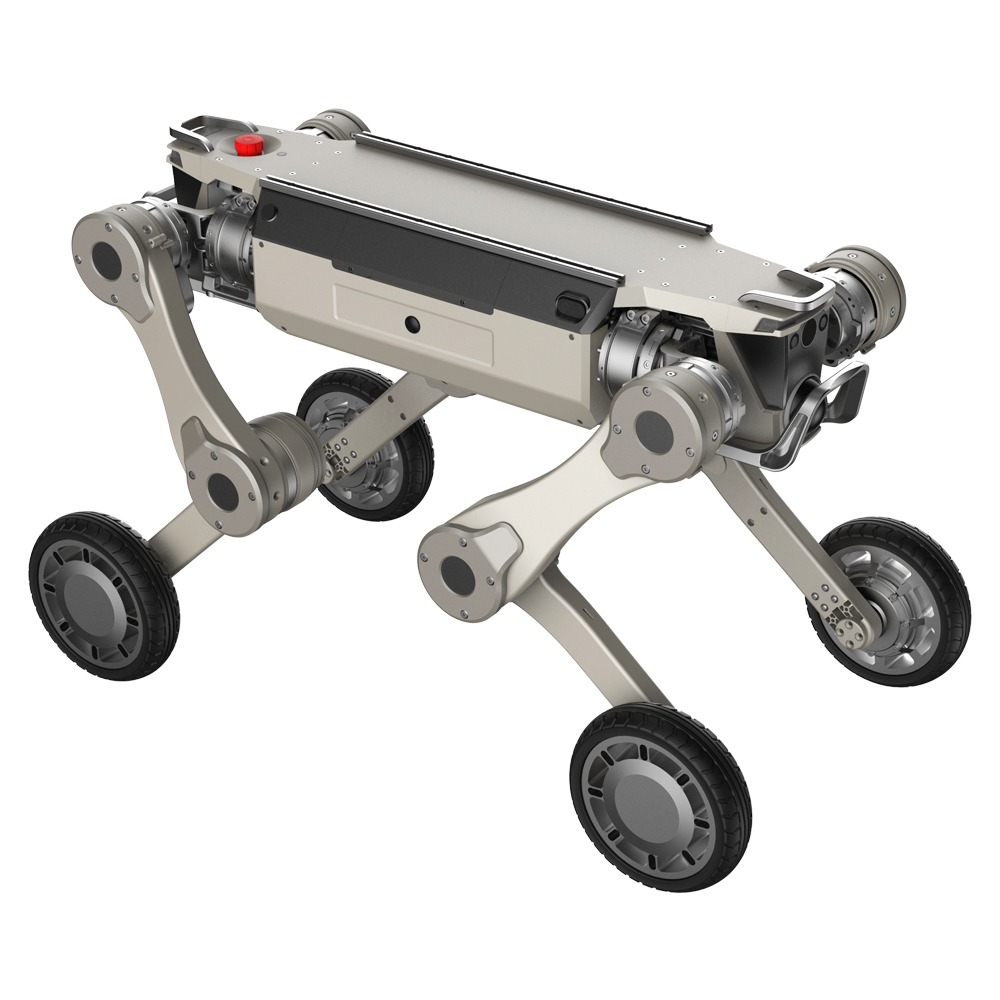

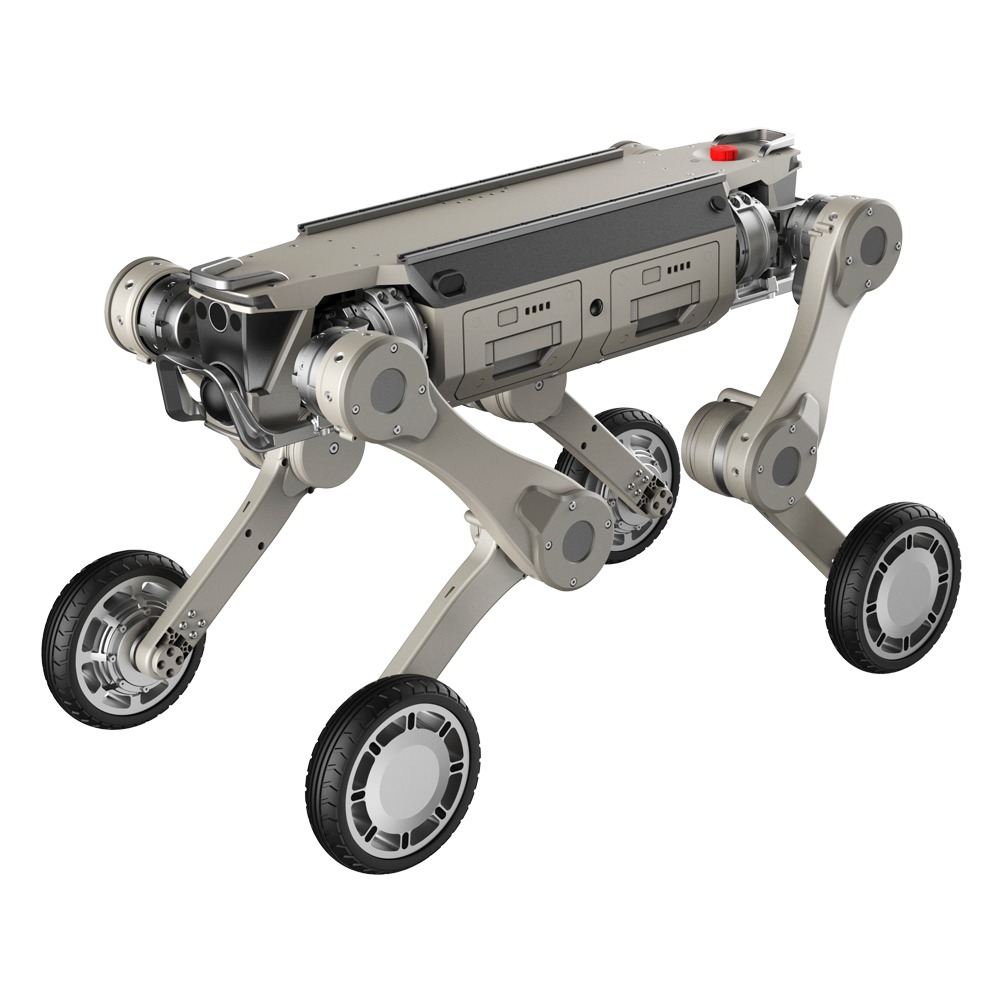

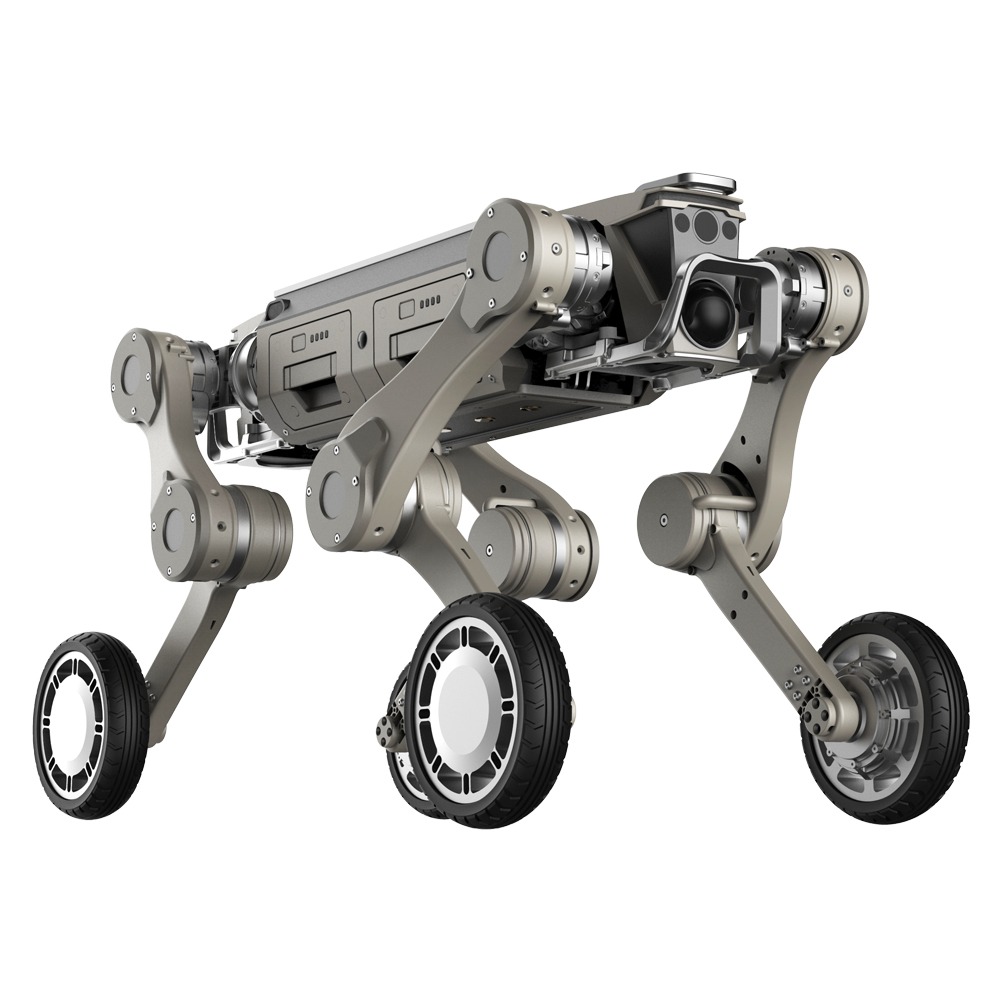

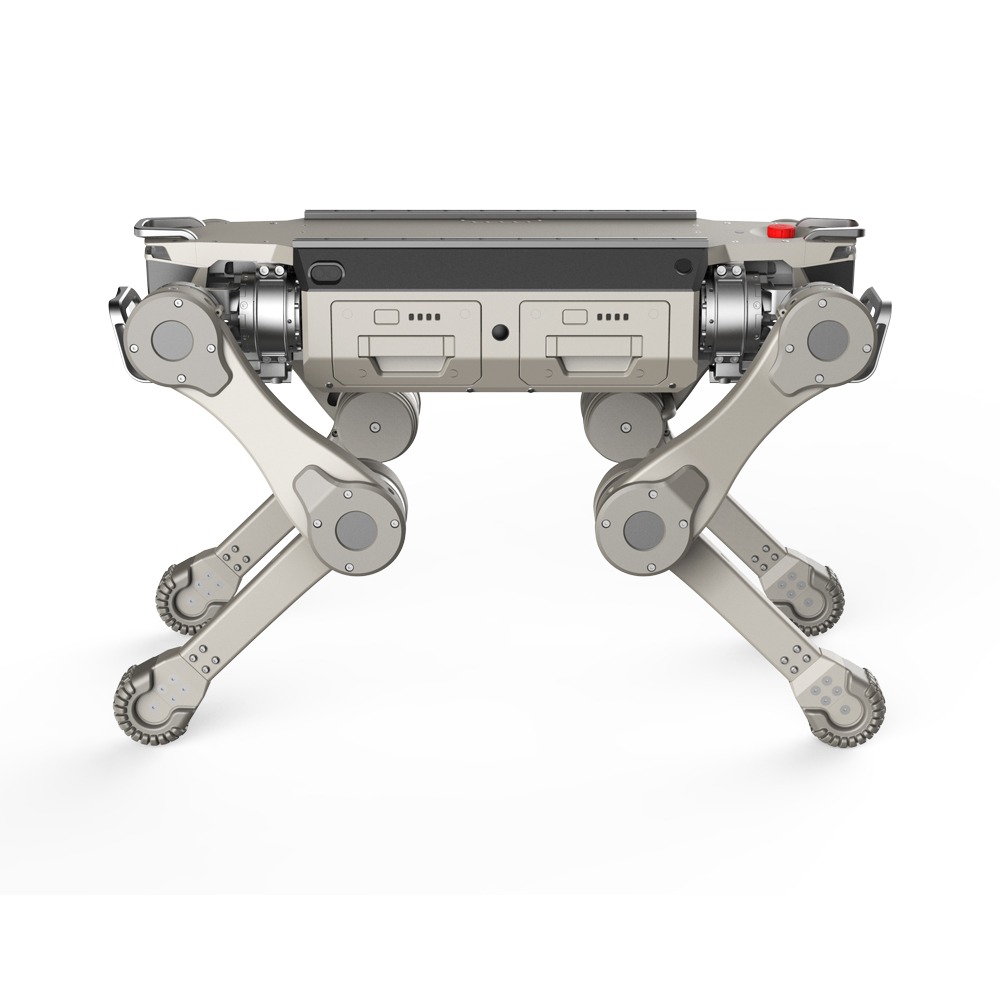

Genisom M1 Quadruped is the Industry’s first lightweight, high-payload, fully protected quadruped robot. Best-in-Class Payload Capacity, Best-in-Class Protection, Best-in-Class Endurance, Best-in-Class Expandability
Request a Quote
Prices shown are for the United Arab Emirates only and exclude VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties.
Please Contact Us for further details and pricing for your country or location.
Genisom M1 Quadruped is the Industry’s first lightweight, high-payload, fully protected quadruped robot. Best-in-Class Payload Capacity, Best-in-Class Protection, Best-in-Class Endurance, Best-in-Class Expandability

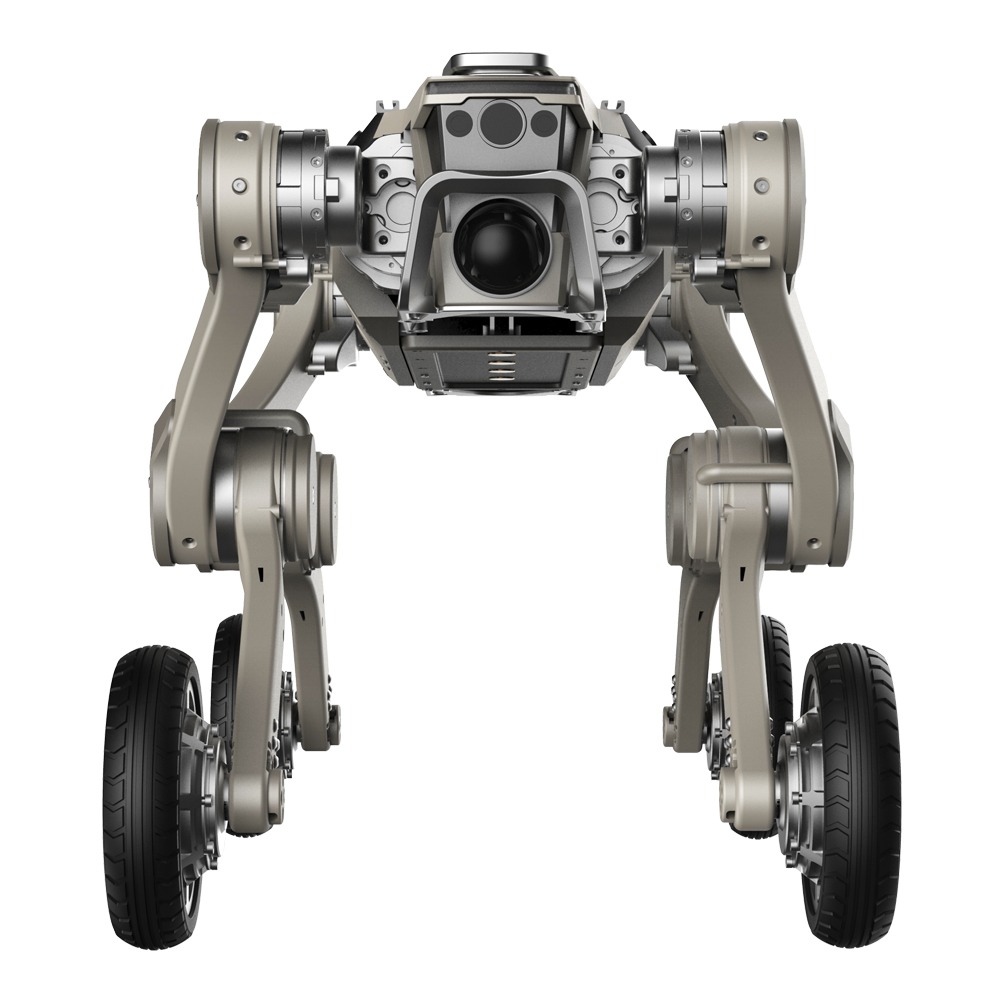

Top-tier protection with 360° perception, engineered for industry.
Higher agility and adaptable posture for sprinting, climbing, or leaping.
Operating Battery – 4h
Dual hot-swappable batteries with autonomous recharge support.

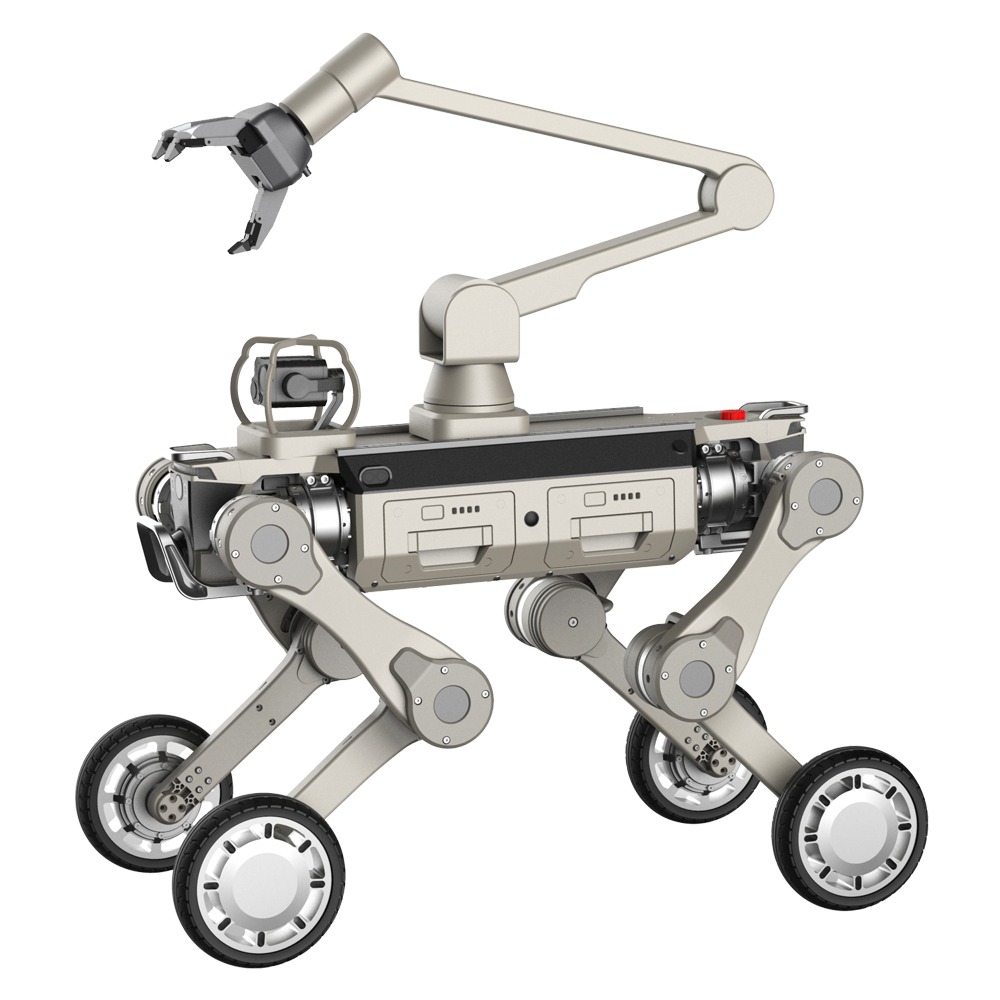

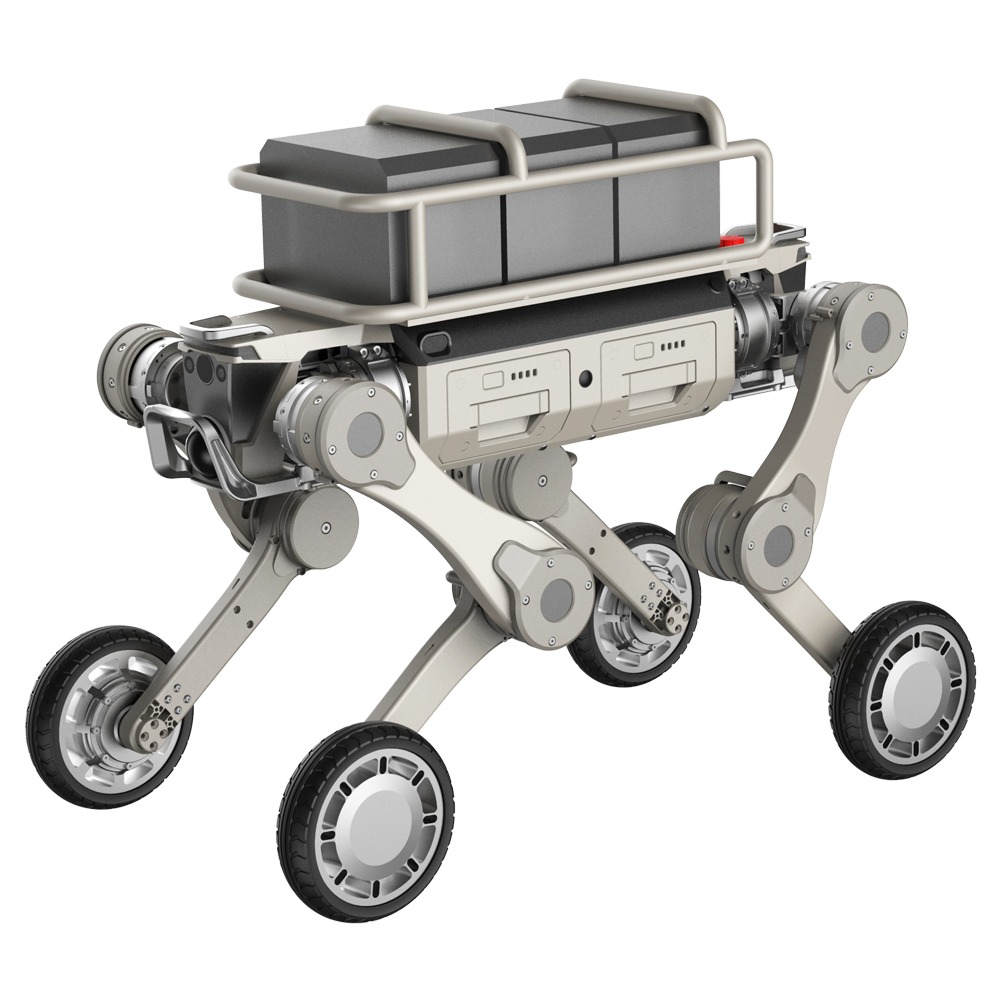

Open communication, power, and control interfaces for versatile modules.

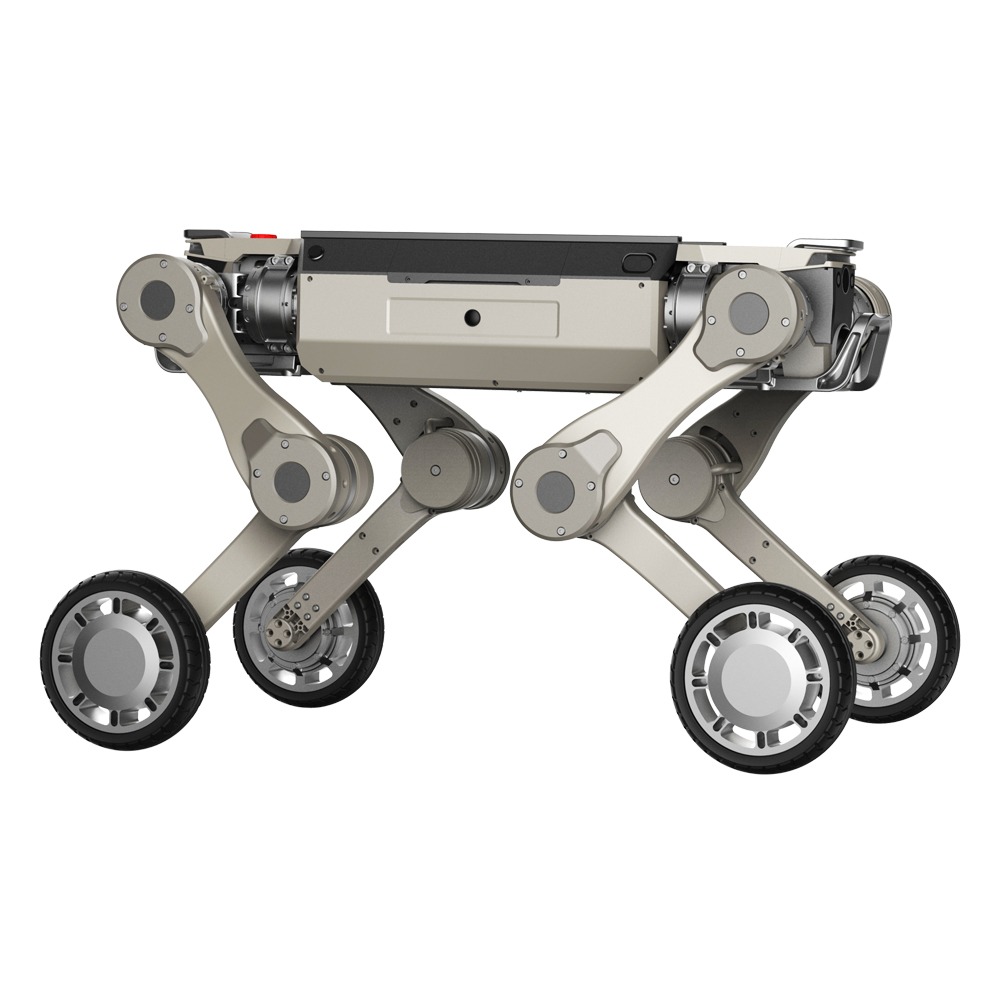

Adapt to changing terrains and scenarios.
| Standing Dimensions (L x W x H) | approx. 92 x 48 x 57cm | Legged Walking Speed | >4m/sec | |
| Lying Dimensions (L x W x H) | approx.93 x 63 x 20cm | Wheeled Driving Speed | >8m/sec | |
| Weight (with battery) | approx. 30kg (legged) | Obstacle Clearance Height | 80cm | |
| Battery Capacity | 20Ah | Trench Crossing Width | 80cm | |

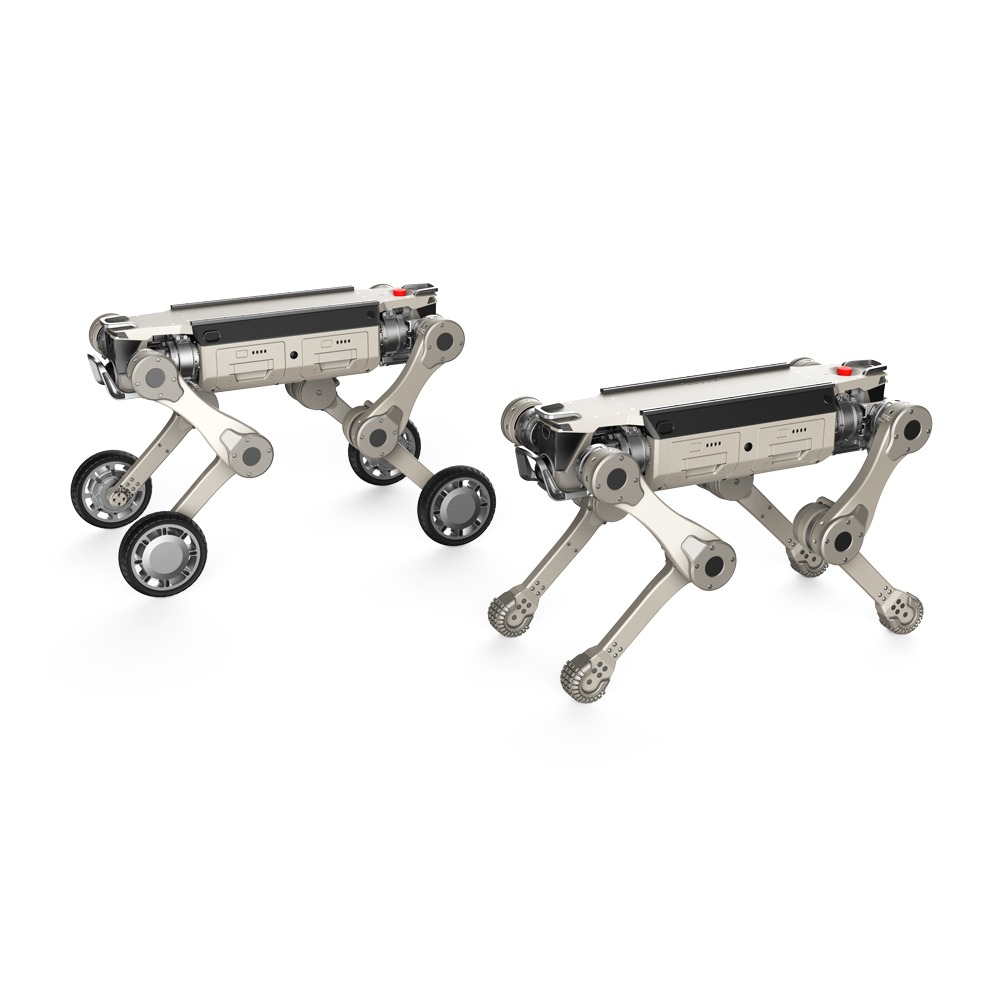

| Endurance with Load | >2h | Wheel/Leg Switching | Supported | |
| Continuous Payload | 25~30kg | Operating Temperature | -20° ~ 55°C | |
| Max Climbable Step Height | >22cm | Ingress Protection | IP67 | |
| Slope Capacity | >45° | External Interfaces | Communication: Gigabit Ethernet, USB, Serial Port. Power: 5V / 12V / 24V / 48V, 480W |
