Water Level Data Logger WL16U-003-025
Global Water ARA025


Catalog Numbers Model Water Level Range Cable Length
ARA025 * WL16U-003-025 0 to 3 ft 25 ft

ARA050
WL16U-003-050 0 to 3 ft 50 ft

ARA075
WL16U-003-075 0 to 3 ft 75 ft

ARB025
WL16U-015-025 0 to 15 ft 25 ft

ARB050
WL16U-015-050 0 to 15 ft 50 ft

ARB075
WL16U-015-075 0 to 15 ft 75 ft

ARB100
WL16U-015-100 0 to 15 ft 100 ft

ARC025
WL16U-030-025 0 to 30 ft 25 ft

ARC050
WL16U-030-050 0 to 30 ft 50 ft

ARC075
WL16U-030-075 0 to 30 ft 75 ft

ARC100
WL16U-030-100 0 to 30 ft 100 ft

ARD075
WL16U-060-075 0 to 60 ft 75 ft

ARD100
WL16U-060-100 0 to 60 ft 100 ft

ARD125
WL16U-060-125 0 to 60 ft 125 ft

ARD150
WL16U-060-150 0 to 60 ft 150 ft

ARD200
WL16U-060-200 0 to 60 ft 200 ft

ARF125
WL16U-120-125 0 to 120 ft 125 ft

ARF150
WL16U-120-150 0 to 120 ft 150 ft

ARF200
WL16U-120-200 0 to 120 ft 200 ft

ARF250
WL16U-120-250 0 to 120 ft 250 ft

ARG250
WL16U-250-250  0 to 250 ft 250 ft

ARG300
WL16U-250-300 0 to 250 ft 300 ft

ARG500
WL16U-250-500 0 to 250 ft 500 ft
Accessories
AR0000 WL16U-ACM USB Water Level Logger Software Kit
Includes software, manual, and USB interface cable.
WLEXE WLEXE  Extra Water Level Logger Cable
Cable length is measured from top of water level recorder to bottom of sensor.  Up to 1000 feet of extra cable can be added at the factory.
AJ1000 THO  Titanium Option
Replace the standard stainless steel water level sensor housing with titanium.
AJ0000 WL-INO WL-INO Inside Well Option
Entire logger goes down inside the 2 inch well.  Provided with chain and hook to secure the well top.  Global Water recommends that no more than 100ft of cable be used with this option.
AL0500 PRPP Pressure Pipe Option
Sensor is housed in a 8 inch PVC (PRPP) or stainless steel pipe with 3/4 inch NPT male thread (PRPM) for logging pressure in municipal water systems.  10 ft cable standard.  Calibrated in psi with ranges of 30 psi, 60 psi, 100 psi available.
AL0000 PRPM
AN0000 WL-T Temperature Output Option
0-50° C, Accuracy: 1% of reading.  NOTE: This option does not decrease the storage capacity of the water level logger.



FEATURES:

  • Four sample modes: 10 times per second, timed, logarithmic, and exception
  • CE Certified
  • User friendly software included
  • USB communication
  • No need to remove sensor for data collection or battery change
  • Highly accurate water level measurements
  • User programmable start and stop alarms, engineering units, and field calibration setup
  • Unique 0-3 ft range for shallow water
  • Wet-wet transducer eliminates vent tube concerns
  • Automatic barometric pressure and temperature compensation

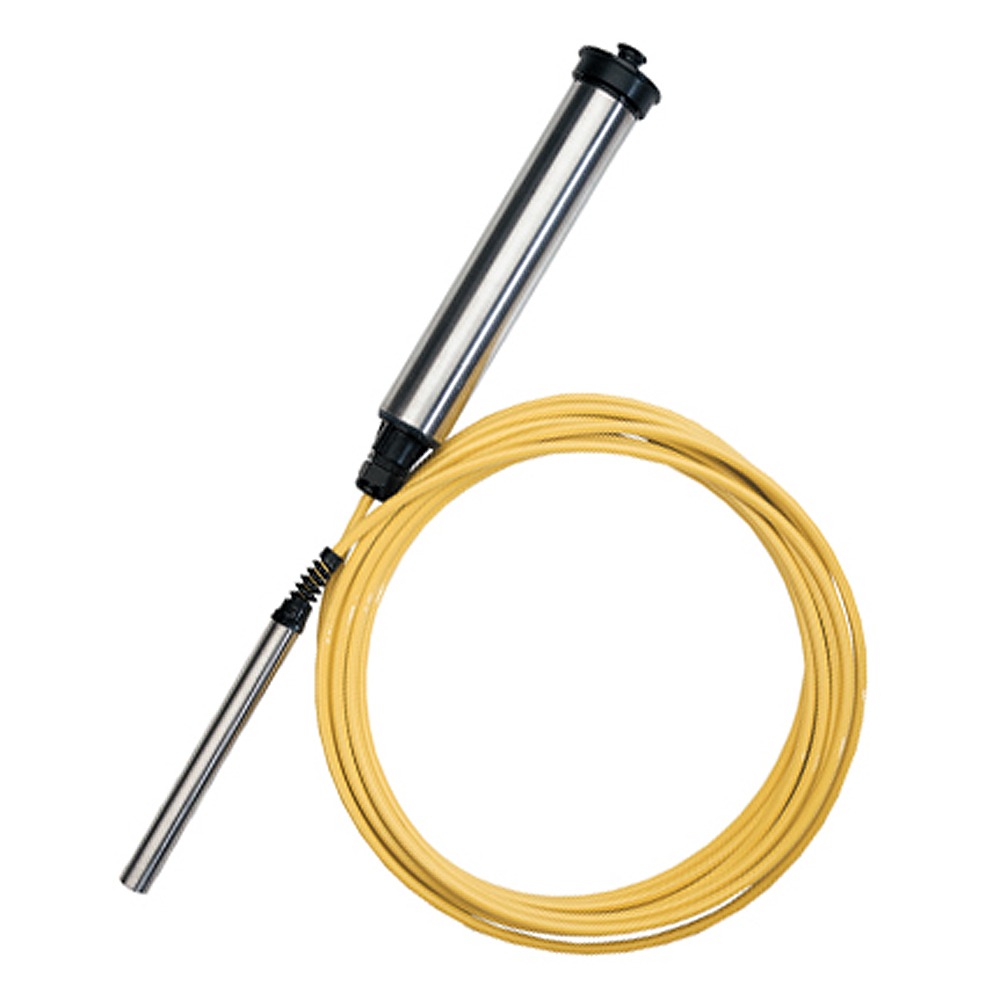

The WL16, Water Level Logger, is a datalogger and submersible pressure transducer combination designed for remote monitoring and recording of water level or pressure data.  The water level logger can record over 81,000 readings and has four unique recording options, fast (10 samples per second), programmable interval (1 second to multiple years), logarithmic, and exception.  Multiple depth ranges are available from 3 to 500 feet of water level change.  A 25 ft vented cable is standard on all water level loggers, and optional cable lengths are available from the factory up to 2000 ft.

The WL16, Water Level Logger, is housed in a weather-resistant cylindrical enclosure, which slips inside a standard 2-inch PVC pipe.  The Water Level Recorders are easily adapted with standard hardware for wellhead mounting, stream, or other installations.  Two internal 9 VDC Alkaline batteries will typically power each of the Water Level Loggers for approximately one year even if one of the batteries fails.  A third onboard lithium battery ensures your data is safe in the event both 9V batteries fail.  All Water Level Loggers include Windows, allowing easy upload of data to a laptop, or desktop for transfer to spreadsheet programs.

The WL16, Water Level Logger’s vented submersible pressure transducer is fully encapsulated with marinegrade epoxy.  The electronics are encapsulated so that moisture can never leak in through O-ring seals or work its way into the vent tube and cause drift or sensor failure, as is the case with many other vented sensors.  The vent tube is sealed directly to the wet-wet sensing element, and any moisture that may enter the vent tube from the housing will only contact the ceramic parts, not the electronics.  Most federal agencies, universities, and environmental consultants recommend vented water level sensors for the best monitoring results.

Warning: Non-vented water level loggers may have readings with errors of up to 10 inches due to barometric pressure changes.  Global Water’s Water Level Loggers use vented cable to prevent this issue from affecting your data.  To learn more about how barometric pressure can affect your data click
HERE.

The vented submersible pressure transducer uses a unique silicon diaphragm to interface between your water and the sensing element.  The diaphragm is highly flexible and touches the sensing element, producing a sensor with exceptional linearity and very low hysteresis.  A stainless steel micro-screen cap protects the pressure transducer diaphragm.  The micro-screen cap has hundreds of openings, making fouling the sensor with silt, mud or sludge virtually impossible.
