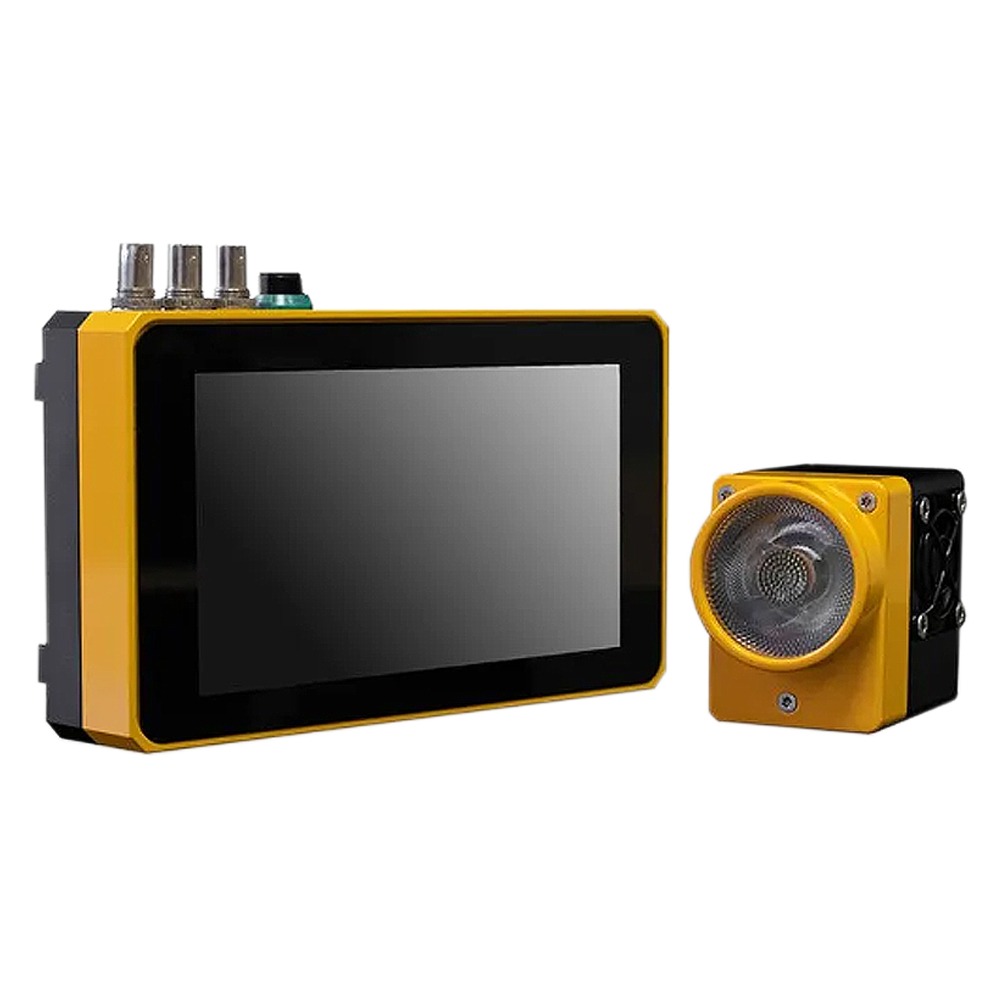

| KEY FEATURES | Colour and Lenses | White LED / Optional: colour LED / Up to 8 separate LED heads synchronised |
| Operating mode | Pulsed light down to 50ns (colour LED) and 100ns (white LED) | |
| Specs | For macro and microscopy, Low heat radiation | |
| Hosing Variants | On Request | |
| TECHNICAL FEATURES | Up to 120 million Lux in the focus point with 8 heads (depending on LED colour and working distance). | |
| Depending on camera sensitivity, a closed aperture at below 1 microsecond exposure can be achieved. | ||
| Touchscreen controller for configuration. | ||
| Position up to 8 x S3/xf LED heads freely around your application. | ||
| Active cooling, 5% duty cycle continuously (white LED), 10% (colour LED). | ||
| BNC, TTL, pulse width controlled up to 1.4 MHz. | ||
| Request option: 1, several hundred microseconds pulse for ultra-high-speed cameras up to 10 fps. | ||
