| KEY FEATURES | Power Supply | 100 G LED Solution / Exchangeable battery pack |
| Operating mode | Refer to Product Datasheet | |
| Specs | 8 channels / Field changeable opening angle | |
| Housing Variants | LEMA 2B Version available | |
| TECHNICAL FEATURES | Mix freely: CG8 MAX L1 (field exchangeable lens system), CG8 MAX L2 (no lenses), CG8 MAX L3 (triple micro-head) | |

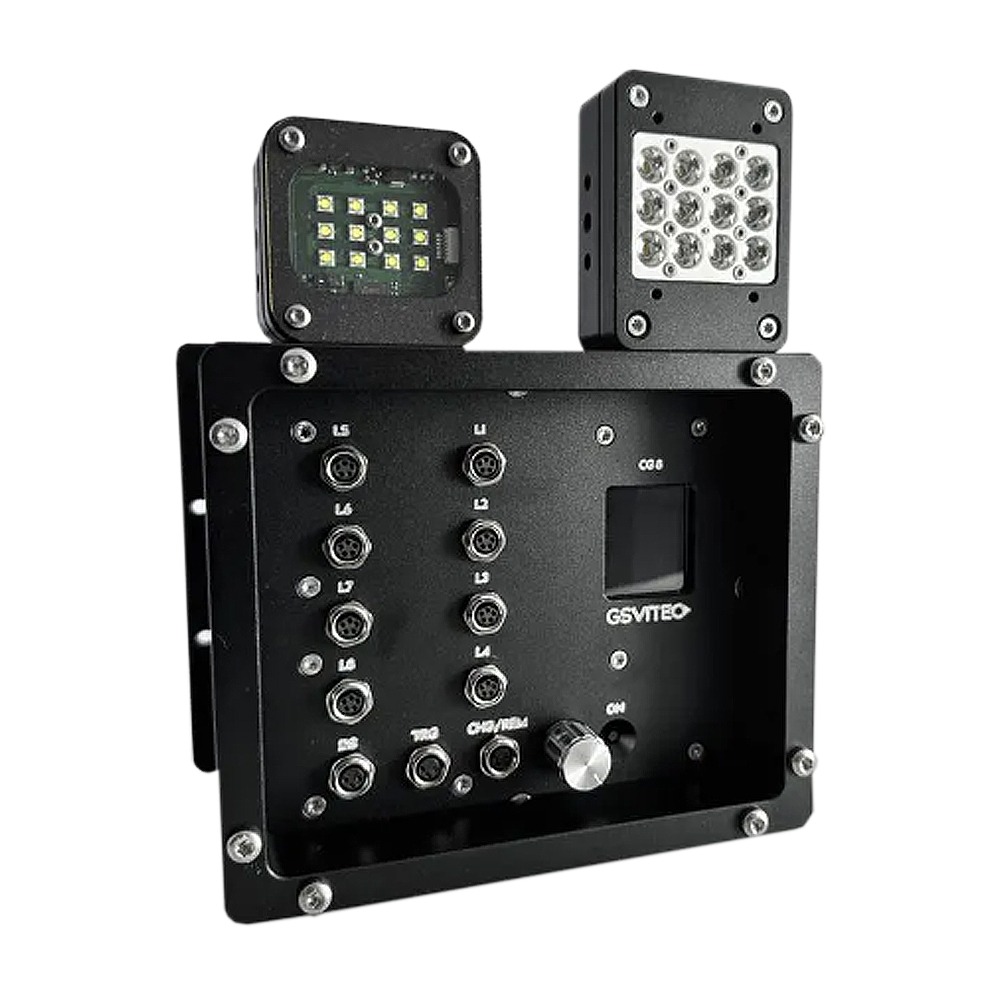

| CG8 MAX control unit supplies power for 1 to 8 „CG8 MAX L1“, „CG8 MAX L2“ or „CG8 MAX L3“ lamp heads. | ||
| CG8 MAX battery pack attached to the CG8 MAX control unit (exchangeable). | ||
| Charging input in CG8 MAX. | ||
| BNC TTL input: First edge triggers predefined pulse duration up to 50 seconds (e.g. break off cable at experiment start). • or synchronize strobe to the camera exposure. | ||
| Lamp thermal capacity sufficient for 50 seconds of continuous operation at full power, starting at 25°C. Or longer when pulsed. | ||
| The controller battery is sufficient for 240 seconds of continuous operation with 8 lamp heads at 100% power. Or more when pulsed. | ||
| RS485 interface: Full feature example software for Windows TM included / Easy integration into your own system using command documentation. |
