GSVITEC-R100-200

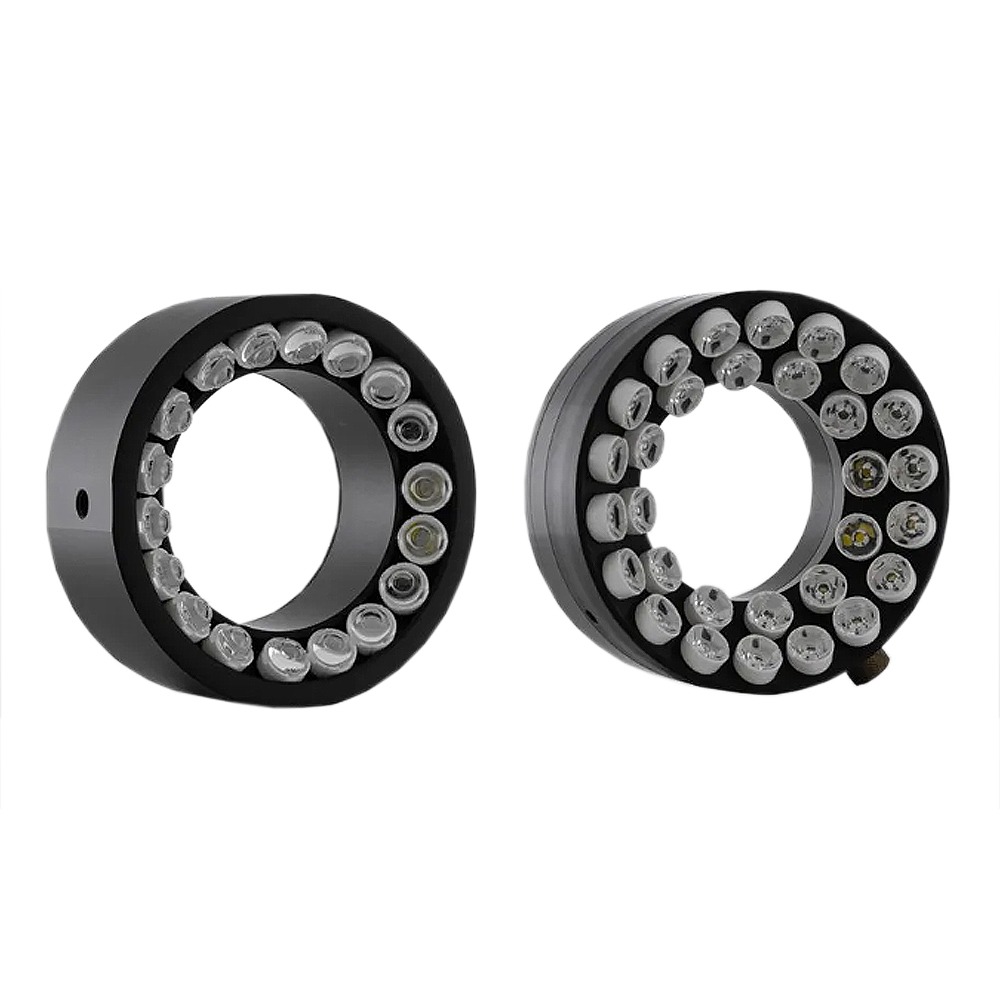

GSVITEC MULTILED R100/200

LINK GULF SKU GSV197-0014 CATEGORY TAGS , , ,
KEY FEATURES
  • Colour and Lenses – White LED, R100 Optional: colour LED
  • Operating mode – Continuous, Pulsed
  • Specs – For macro and microscopy, Low heat radiation
  • Housing Variants – On Request
TECHNICAL FEATURES
  • The system delivers several million lux at the focal point.
  • The camera achieves an f/22 aperture at a 1-microsecond exposure, depending on sensor sensitivity.
  • R100 is available with a colour LED only.
  • The unit focuses LED output 50 mm from the front, producing a 40 × 40 mm spot; other working distances are available on request.
  • The housing measures 78 mm inner diameter, 140 mm outer diameter, and 70 mm in height, including connectors.
  • Two standard 1/4″ mounting threads sit on the side of the unit, positioned 90° apart.
  • Passive cooling enables continuous operation at a 10% duty cycle or up to 2 minutes at full power; an additional cooling module allows continuous 100% operation.
  • The unit provides BNC triggering with TTL control and supports pulse-width modulation up to 30 kHz.

Request a Quote

Prices shown are for the United Arab Emirates only and are excluding VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties – Please Contact Us for further details and pricing for your location.

Description
Specifications
Request A Quote
GSVITEC MULTILED R100/200
KEY FEATURES
  • Colour and Lenses – White LED, R100 Optional: colour LED
  • Operating mode – Continuous, Pulsed
  • Specs – For macro and microscopy, Low heat radiation
  • Housing Variants – On Request
TECHNICAL FEATURES
  • The system delivers several million lux at the focal point.
  • The camera achieves an f/22 aperture at a 1-microsecond exposure, depending on sensor sensitivity.
  • R100 is available with a colour LED only.
  • The unit focuses LED output 50 mm from the front, producing a 40 × 40 mm spot; other working distances are available on request.
  • The housing measures 78 mm inner diameter, 140 mm outer diameter, and 70 mm in height, including connectors.
  • Two standard 1/4″ mounting threads sit on the side of the unit, positioned 90° apart.
  • Passive cooling enables continuous operation at a 10% duty cycle or up to 2 minutes at full power; an additional cooling module allows continuous 100% operation.
  • The unit provides BNC triggering with TTL control and supports pulse-width modulation up to 30 kHz.
KEY FEATURES Colour and Lenses White LED, R100 Optional: colour LED
Operating mode Continuous, Pulsed
Specs For macro and microscopy, Low heat radiation
Hosing Variants On Request
TECHNICAL FEATURES Several million Lux in the focus point. Depending on camera sensitivity, up to an aperture of 22 at a 1-microsecond exposure can be achieved.
Colour LED for R100 only
LED power is focused 50 mm from the front of the unit to a spot of 40*40mm—other working distances on request.
Inner diameter 78 mm, outer diameter 140 mm, height 70 mm incl. connectors. 2*standard 1/4“ threads on the side (90° to each other)
Passively cooled, 10 % duty cycle continuously or up to 2 min. operation at 100% power. Continuous operation with an additional cooling module.
BNC, TTL, pulse width controlled up to 30 kHz
For macro and microscopy, Low heat radiation
