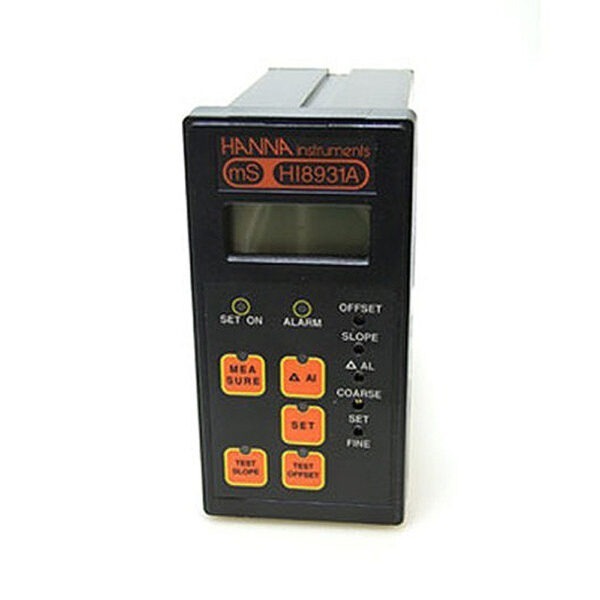

Hanna Instruments HI8931AN
Request a Quote
Prices shown are for the United Arab Emirates only and exclude VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties.
Please Contact Us for further details and pricing for your country or location.
|
Description:
These instruments have to be used in conjunction with the HI8936 transmitters series. Thanks to this installation it is possible to receive a signal without any noise from a distance of up to 300 meters from the measuring point. The dosing type is selectable through a jumper on the rear panel.
Four different models are available with different measurement ranges, each one to be used with the corresponding HI8396 model.
The output configuration for connecting a recorder or a PLC can be chosen between 0-20 or 4-20 mA. The front panel is protected behind a transparent splash-proof cover.
|
|
Range
|
0.0 to 199.9 mS/cm
|
|
Resolution
|
0.1 mS/cm
|
|
Accuracy
|
±2% F.S.
|
|
Input From Transmitter
|
HI8936A / AL
|
|
Recorder Output
|
4-20 mA (isolated)
|
|
Setpoint Relay
|
1, isolated, 2A, Max. 240 V, resistive load, 1,000,000 strokes
|
|
Alarm Relay
|
1, isolated, 2A, Max. 240 V, resistive load, 1,000,000 strokes
|
|
Power Supply
|
115/230 ±10% Vac; 50/60 Hz
|
|
Enclosure
|
black anodized aluminum body; front and back with ABS;
transparent splash-proof front cover |
|
Environment
|
-10 to 50°C (4 to 122°F); RH max 95% non condensing
|
|
Panel Cutout
|
141 x 69 mm (5.6 x 2.7″)
|
|
Weight
|
1 kg (2.2 lb.)
|
|
Solutions
|
|
|
HI7033L |
84 µS/cm (µmho/cm)
1 x 500 mL bottle |
|
HI7031L |
1413 µS/cm (µmho/cm)
1 x 500 mL bottle |
|
HI7030L |
12880 µS/cm (µmho/cm)
1 x 500 mL bottle |
|
HI7034L |
80000 µS/cm (µmho/cm)
1 x 500 mL bottle |
|
Accessories
|
|
|
HI8936A |
Conductivity Transmitter (High Range @ 199.9 mS/cm) Using 4-Ring Technology
|
|
HI8936AL |
Conductivity Transmitter (High Range @ ) Using 4-Ring Technology
|
