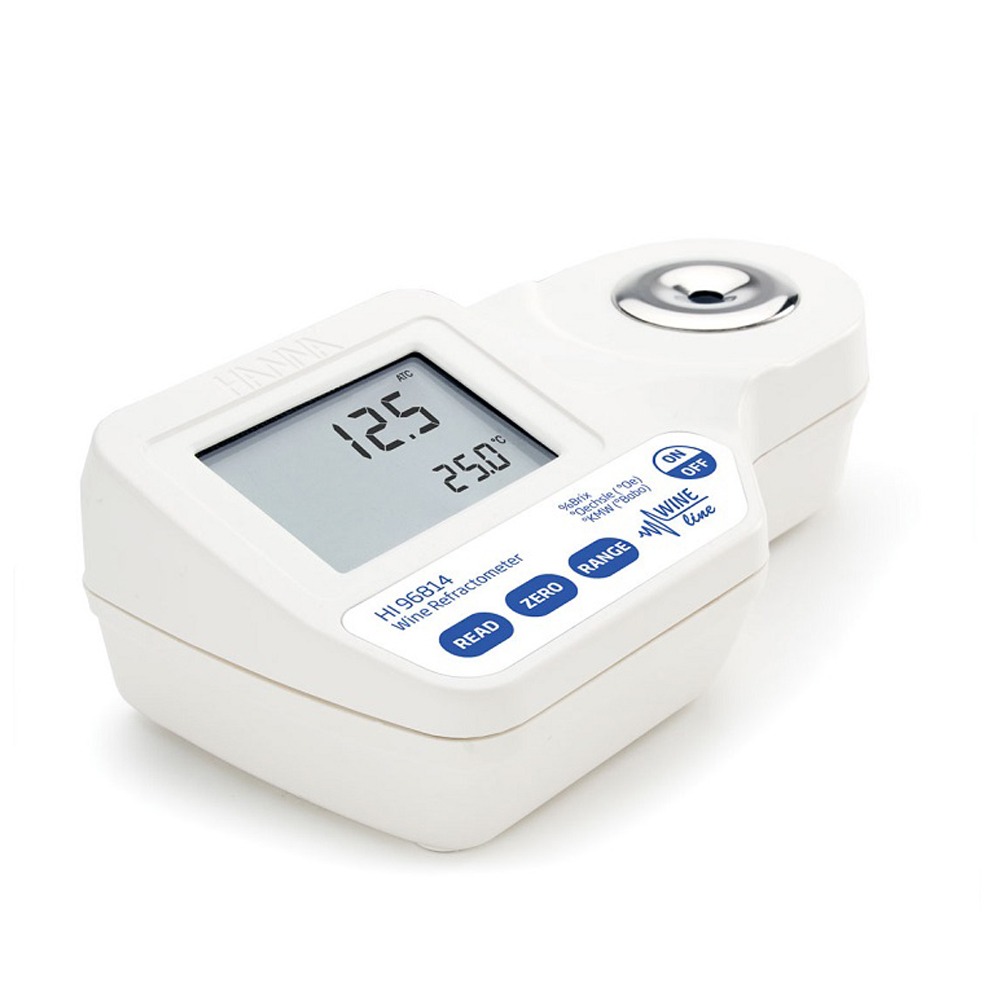

Hanna Instruments Wine Refractometer Oechsle Babo and Brix Scale

Hanna Instruments HI96814

Prices Start From Call for price

Prices shown are for the United Arab Emirates only and are excluding VAT @ 5% Local Rate (Unless Otherwise Stated).

Other countries may incur additional import duties – Please Contact Us for further details and pricing for your location.

Link Gulf HI96814
Wine Refractometer Oechsle Babo and Brix Scale
Hanna Instruments HI96814


Description:
  • The dual-level LCD displays measurement and temperature readings simultaneously
  • Automatic Temperature Compensation for accurate measurements
  • Easy measurement; place a few drops of the sample in the well and press the READ key
  • BEPS (Battery Error Prevention System) alerts the user in the event that low battery power could adversely affect readings.
  • IP65 water protection; built to perform under harsh laboratory and field conditions.
  • Quick, accurate results, readings are displayed in approximately 1.5 seconds.
  • Single point calibration with distilled or deionized water
  • Small sample size, can be as small as 2 metric drops.
  • Automatic shut-off after three minutes of non-use
  • Stainless steel sample well, easy to clean and corrosion resistant
  • ABS thermoplastic casing

The HI96814 Digital Wine Refractometer is rugged, lightweight and waterproof for measurements in the lab or field.

This optical instrument employs the measurement of the refractive index to determine parameters pertinent to the wine industry.

The actual measurement of the refractive index is simple and quick and provides the vintner a standard accepted method for sugar content analysis. Samples are measured after a simple user calibration with deionized or distilled water. Within seconds, the instrument measures the refractive index of the grape must. These digital refractometers eliminate the uncertainty associated with mechanical refractometers and are ideal for fast, reliable measurements in the field.

In addition to %Brix, HI96814 includes two other scales used in the wine industry: °Oechsle and °KMW.

°Oechsle (°Oe) is mainly used in the German, Swiss and Luxenburgish winemaking industry to measure the sugar content of must. The °Oe scale is based on specific gravity at 20°C (SG20/20) and is the first 3 digits following the decimal point. 1 °Oe is roughly equal to 0.2 %Brix.

°Oe = [(SG20/20) – 1] x 1000

°Klosterneuburger Mostwaage (°KMW) is used in Austria to measure the sugar content of must.

°KMW is related to °Oe by the following equation: °Oe = °KMW x [(0.022 x °KMW) + 4.54]

1 °KMW is roughly equivalent to 1 %Brix or 5 °Oe. °KMW is also known as °Babo.

“Potential” or “probable” alcohol is an estimation of the alcohol content (% vol/vol) in finished wine based on the conversion between sugar and alcohol. This conversion depends on many factors such as the type of grapes, the grape maturity, the growing region and yeast fermentation efficiency and temperature.

Measures the refractive index and displays % brix, Oechsle (°Oe) or KMW (°Babo) measurements.




Specifications :

Sugar Content Range
0 to 50 % Brix;
0-230° Oechsle;
0-42° KMW
Temperature Range
0 to 80°C (32 to 176°F)
Sugar Content Resolution
±0.1 % Brix;
±1° Oechsle
±0.1° KMW
Temperature Resolution
±0.1°C (0.1°F)
Sugar Content Accuracy (@20°C)
±0.2 % Brix;
±1° Oechsle
±0.1° KMW
Weight
420g (14.8 oz.)

Order Information:
Supplied with battery and instruction manual.
