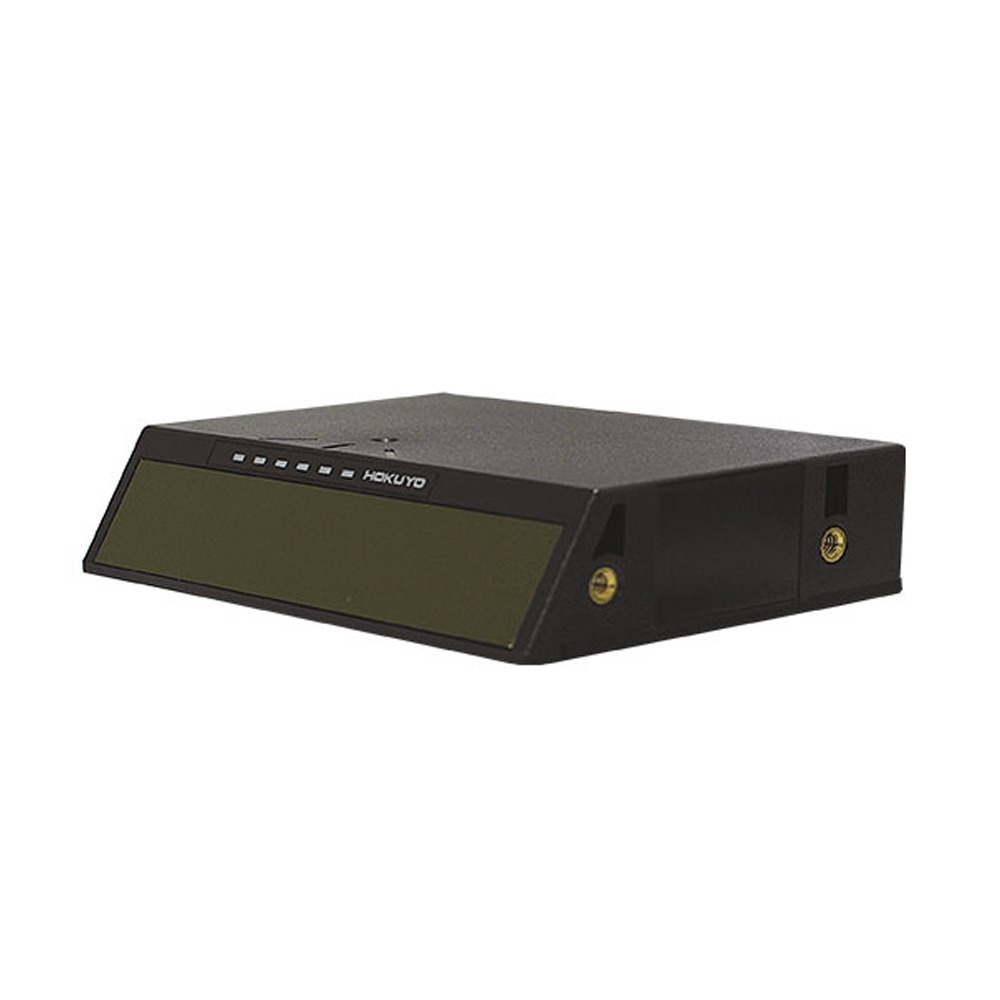

Hokuyo – UCT-10LCM – LiDAR Sensor

The Hokuyo UCT-10LCM LiDAR Sensor is an ultra-slim 3D LiDAR system for industrial automation and robotics. It detects intrusions, obstacles, forklift pallet pockets, and cliffs encountered by AGVs and AMRs.

Its dual functionality combines multi-echo data output with configurable detection areas.

  • Users can define five monitoring regions within a detection range of up to 10 metres.
  • The sensor features three scanning layers and a 100° horizontal by 6° vertical field of view.
  • This configuration provides efficient area coverage for stationary and mobile applications.
  • Additionally, its built-in IMU measures angular rate and acceleration.

This data helps autonomous systems monitor balance and orientation while navigating dynamic environments.

The Ethernet 100Base-TX interface simplifies integration with robotic and industrial automation systems. Furthermore, precise measurement accuracy and 0.125° angular resolution support reliable detection and safer working environments.

Request a Quote

Prices shown are for the United Arab Emirates only and exclude VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties.

Please Contact Us for further details and pricing for your country or location.

The Hokuyo UCT-10LCM LiDAR Sensor is an ultra-slim 3D LiDAR system for industrial automation and robotics. It detects intrusions, obstacles, forklift pallet pockets, and cliffs encountered by AGVs and AMRs.

Its dual functionality combines multi-echo data output with configurable detection areas.

  • Users can define five monitoring regions within a detection range of up to 10 metres.
  • The sensor features three scanning layers and a 100° horizontal by 6° vertical field of view.
  • This configuration provides efficient area coverage for stationary and mobile applications.
  • Additionally, its built-in IMU measures angular rate and acceleration.

This data helps autonomous systems monitor balance and orientation while navigating dynamic environments.

The Ethernet 100Base-TX interface simplifies integration with robotic and industrial automation systems. Furthermore, precise measurement accuracy and 0.125° angular resolution support reliable detection and safer working environments.
