IXRD MINI Residual Stress System from PROTO
Making Residual Stress Measurements Affordable
The portable iXRD Mini is the latest addition to our residual stress x-ray diffraction (XRD) family, providing an affordable and convenient option for residual stress measurements. The system’s built-in mapping stage allows for advanced residual stress experiments without occupying the space of a traditional laboratory diffractometer.

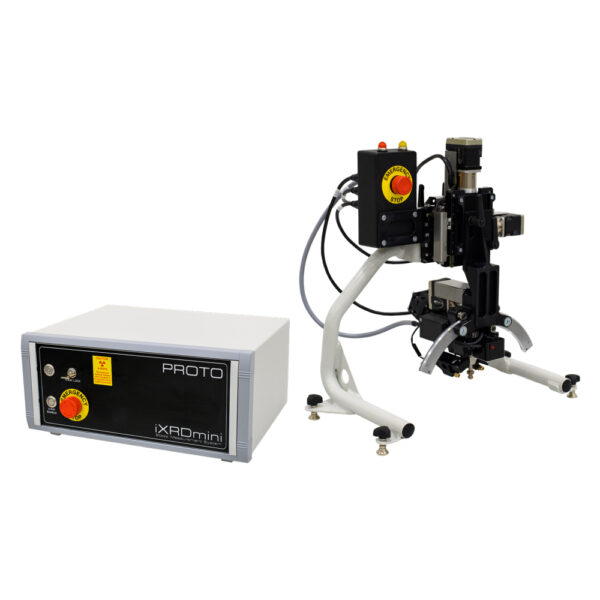

Proto’s iXRD Mini features a compact and portable self-contained control unit. With an integrated high-voltage supply, x-ray tube cooling, motor control, and system electronics, this system provides everything you need to run measurements safely and reliably. Additional safety features include external ports for interfacing with an enclosure or barrier and beacon lights indicating when the shutter and x-ray are on.
The iXRD Mini is the perfect system for basic residual stress measurements. A high-performance goniometer maintains ASTM E915 accuracy in a low-maintenance design. The manual focus pointer enables accurate positioning of the goniometer in complex geometries. The automated focus pointer provides convenient focusing of large residual stress maps. Various x-ray beam apertures are available, including round 0.5, 1.0, and 2.0 mm options and rectangular 0.5×3, 1×3, and 2×5 mm options. High-stress standards, zero-stress powders, and RA standards ensure accurate results. Rapid movement of the z-range is accomplished with easy-adjust locking handles.
Goniometer Dimensions (LxWxH): 250 x 175 x 195 mm
Goniometer Weight: 2.5 kg
Power Unit Dimensions (LxWxH): 250 x 250 x 150 mm
Power Unit Weight: 8 kg
X-ray Beam Apertures: 0.5 mm, 1.0 mm, 1.5 mm; 0.5×3, 1×3, 2×5 mm
X-ray Tube Power: 40 Watts (20 kV / 2 mA)
X-ray Tubes: Ti, V, Cr, Mn, Fe, Co, Cu
X-ray Detectors: Dual photon counting
Detector Width (2θ): 20º
2θ Range: Residual stress: 123º to 171º; Retained austenite: 70º to 171º
Mapping Features: 50-mm linear mapping slide
Software: PROTO XRDWIN®
Power Requirements: 90-240 VAC, 50/60 Hz, single phase
System Compliance: ANSI N43.2, CE, ASTM E915, ASTM E2860, EN15305, and JSMS-SD-10-05
