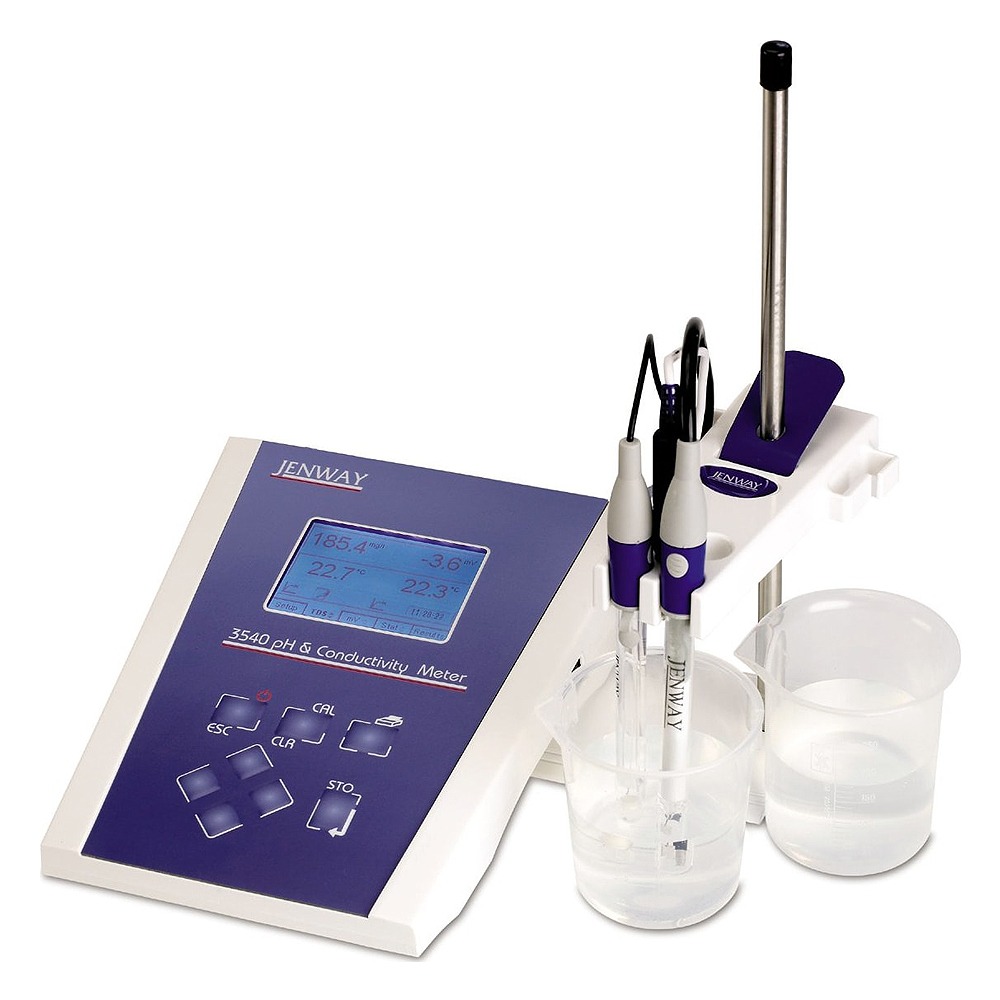

Jenway-3540 Bench Combined Conductivity/pH Meter
Jenway 354 001 / Cole-Parmer EW-99959-96 / Thomas 1200Q35 / Link Gulf 354001
The Jenway-3540 Bench Combined Conductivity/pH Meter is ideal for use in all laboratories where pH and conductivity analyses are required. The setup menu gives quick and easy access to the entire instrument, as well as pH and conductivity measurement options. Calibration of both channels is automatic, with the option to select 1, 2 or 3 calibration points. The pH channel can also display mV values if required.
REQUEST A QUOTE
Prices shown are for the United Arab Emirates only and are excluding VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties – Please Contact Us for further details and pricing for your location.
Jenway-3540 Bench Combined Conductivity/pH Meter
Jenway 354 001 / Cole-Parmer EW-99959-96 / Thomas 1200Q35 / Link Gulf 354001
The Jenway-3540 Bench Combined Conductivity/pH Meter is ideal for use in all laboratories where pH and conductivity analyses are required. The setup menu gives quick and easy access to the entire instrument, as well as pH and conductivity measurement options. Calibration of both channels is automatic, with the option to select 1, 2 or 3 calibration points. The pH channel can also display mV values if required.
| Catalog Number | Description |
| 354001 * | 3540 conductivity/ pH meter supplied with glass combination pH electrode (924 005), glass conductivity probe (K= 1 027 013), electrode stand and holder, ATC probe (027 500), BNC shorting plug, pH buffers and UK power supply |
| 354101 | 3540 conductivity/ pH meter supplied with glass combination pH electrode (924 005), glass conductivity probe (K= 1 027 013), electrode stand and holder, ATC probe (027 500), BNC shorting plug, pH buffers and US power supply |
| 354201 | 3540 conductivity/ pH meter supplied with glass combination pH electrode (924 005), glass conductivity probe (K= 1 027 013), electrode stand and holder, ATC probe (027 500), BNC shorting plug, pH buffers and EU power supply |
| Parameter | 3540 |
| pH range | – 2.000 to 20.000 |
| pH resolution | 0.001/ 0.01/ 0.1 |
| pH accuracy | ± 0.003 |
| mV range | ± 1999.9mV |
| mV resolution | 0.1mV |
| mV accuracy | ± 0.2mV |
| Conductivity range | Auto-selected from 0.01µS to 1.999S |
| Conductivity resolution | 0.01µS to 1mS |
| Conductivity accuracy | ± 0.5 ± 2 digits |
| Temperature range | – 10 to 105°C |
| Temperature resolution | 0.1°C |
| Temperature accuracy | ± 0.5°C |
| ATC and manual | 0 to 100°C |
| Temperature coefficient | 0.00 to 4.00% / °C |
| Reference temperature | 18, 20, 25°C |
| GLP | Calibration reminder interval, operator, sample ID and security coded setup |
| Outputs | Analogue, RS232 and IrDA interface |
| Connectors | BNC (pH) and 7-pin DIN (conductivity) |
| Power | 9V AC ± 10% @ 50/ 60Hz |
| Size (l x w x d) | 210 x 250 x 55mm |
| Weight | 850g |
