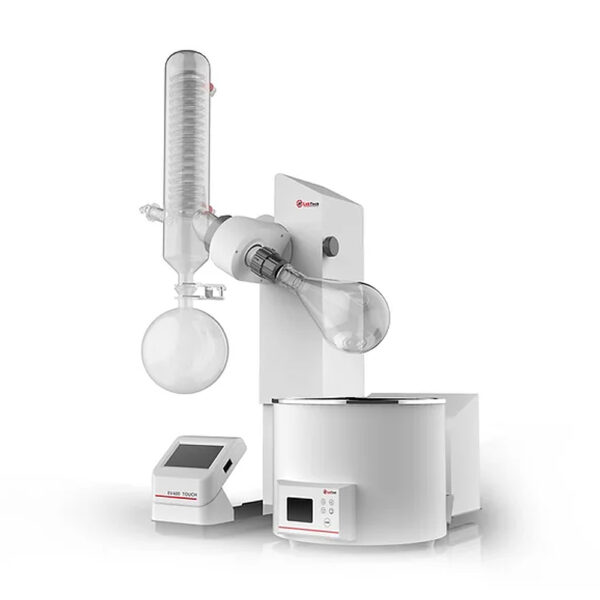

Rotary Evaporator LabTech EV400VAC
LabTech LEV400V-L


The LabTech evaporation solutions introduce a new concept in routine distillation/evaporation processes: safety, efficiency and durability to support the lab user work! With an innovative and ergonomic design, the EV series rotary evaporators include color digital display to monitor and control rotation speed and temperature, motorized vertical lift, evaporation fl asks, on line sample adding through PTFE valve and can be completed with the LabTech vacuum and cooling accessories to reach top efficiency of process. The stand alone heating bath guarantees maximum safety in operations and easy maintenance.

Automated and Intelligent Distillation with Colorful Touch Screen Controller

  • Auto-D automatic distillation mode. System can automatically identify the solvent boiling point and capture the optimized distillation parameters
  • Programmable rotation and vacuum pressure control, being convenient for multiple solvents evaporation
  • Colorful touch screen controller with intuitive digital display and built-in distillation curves

One-touch Distillation

  •  Built-in solvent library, quickly start your distillation process by pressing a button

Precise Distillation

  • Precise digital vacuum control ensures the high repeatability of the whole process and satisfies the strictest application.
  • Vapor temperature sensor, accurately monitoring the temperature of vaporized sample
  • Digital display of rotating speed, heating temperature, graphical distillation curves, etc

Safe and Easy

  •  Automatically stop heating in dried bath condition
  •  High temperature alarm
  •  Automatic lift-up protection in case of power failure
  •  Automatic end-point identification of vertical stroke

Excellent Sealing System

  •  PTFE seal loop ensures high elasticity and anti-corrosion to the high temperature solvent



Model EV400 EV400Touch EV400VAC
Product Number
LEV400-V
LEV400T-V
LEV400V-V

LEV400-L
LEV400T-L		 LEV400V-L *
Display LCD Colorful Touch Control Colorful Touch Control
Max. Rotation Speed 300 rpm 300 rpm 300 rpm
Lift Up/Down Motor Motor Motor
Lift Stroke  160 mm 160 mm 160 mm
Head Tilt Angle 0 – 60 degree 0 – 60 degree 0 – 60 degree
Bath Temperature Ambient – 210℃ Ambient – 210℃ Ambient – 210℃
Temperature Accuracy ±1℃ ±1℃ ±1℃
Heating Power 1300 W 1300 W 1300 W
Bath Volume 5 L 5 L 5 L
Rotation Flask 50 – 3000 mL 50 – 3000 mL 50 – 3000 mL
Condenser 1200 cm 2 (Standard)/ 1500 cm 2
V: Vertical Condenser L: Diagonal Condenser
Clockwise/counter-clockwise Rotation –  Yes  Yes
Gradient Distillation –  Yes Yes
Built-in Vacuum Controller – – Yes
Solvents Library –  –  Yes
Vapor Temperature  – Option Option
Auto-Distillation  – – Option
