2,5-12,5mm, 0,001mm
Prices Start From Call for price
Prices shown are for the United Arab Emirates only and are excluding VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties – Please Contact Us for further details and pricing for your location.
Description

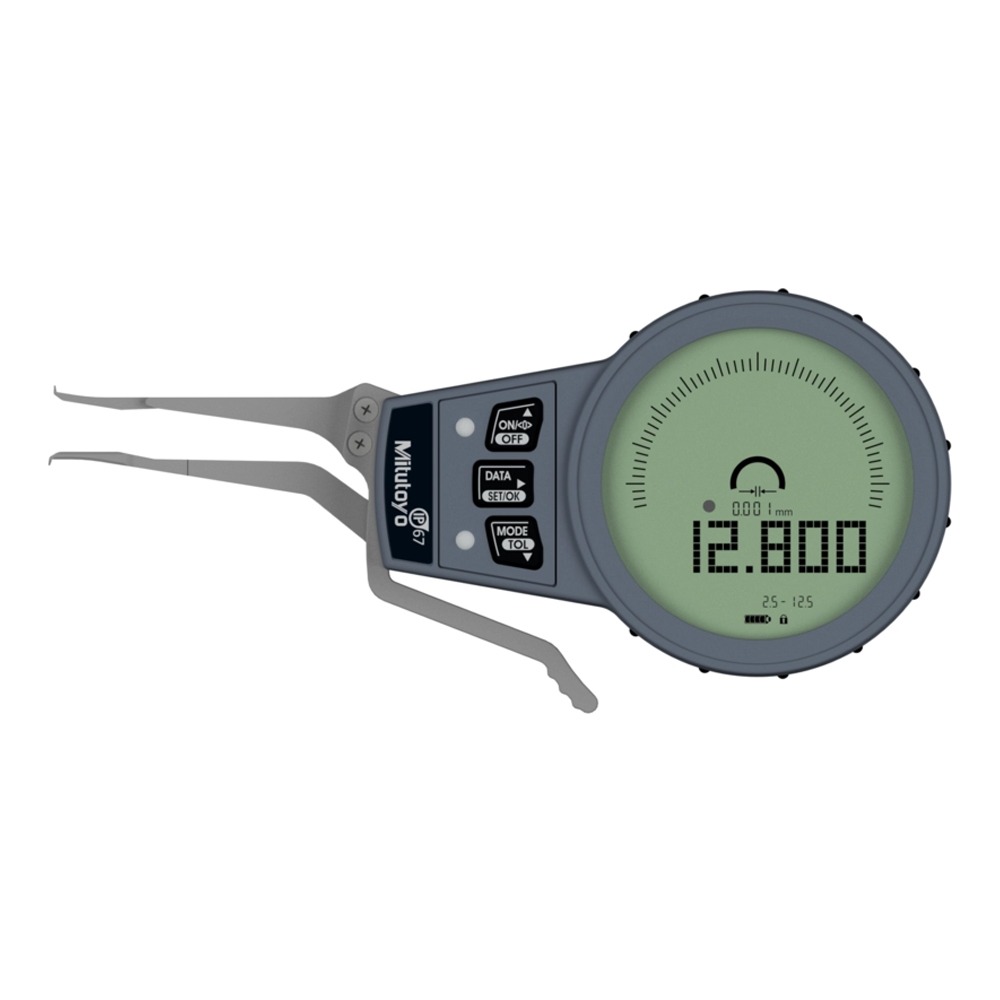

A Mitutoyo internal digital caliper gauge designed for use as a comparator, to be set up using a setting ring or micrometer. The caliper is spring loaded and makes point contact at constant measuring force.
| Inch-Metric: |
Metric/Inch
|
| Graduation: |
0.001 mm
|
| Range: |
2.5 – 12.5
|
| Resolution: |
0,001 / 0,002 / 0,005 / 0,010 mm
|
| Accuracy: |
0,01 mm
|
| Measuring force: |
0,8-1,3 N
|
| Mass: |
160 g
|
| Power supply: |
Lithium-Polymer power pack
|
| Analog bar resolution switchable: |
Yes
|
| Auto Power OFF after 1/5/10 min. non use: |
YES
|
| OFFSET: |
Yes
|
| Type: |
Fig. 4
|
| mm/inch conversion: |
Yes
|
| HOLD: |
Yes
|
| SET key: |
Yes
|
| DATA key: |
Yes
|
| DATA-Logger (100 measured values): |
Yes
|
| ABS/INC switchable: |
Yes
|
| Max. reading: |
Yes
|
| Min. reading: |
Yes
|
| Tolerance LED (green/red): |
Yes
|
| Tolerance judgement: |
Yes
|
