0-25mm, Disk=20mm
Prices Start From Call for price
Prices shown are for the United Arab Emirates only and are excluding VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties – Please Contact Us for further details and pricing for your location.
Description

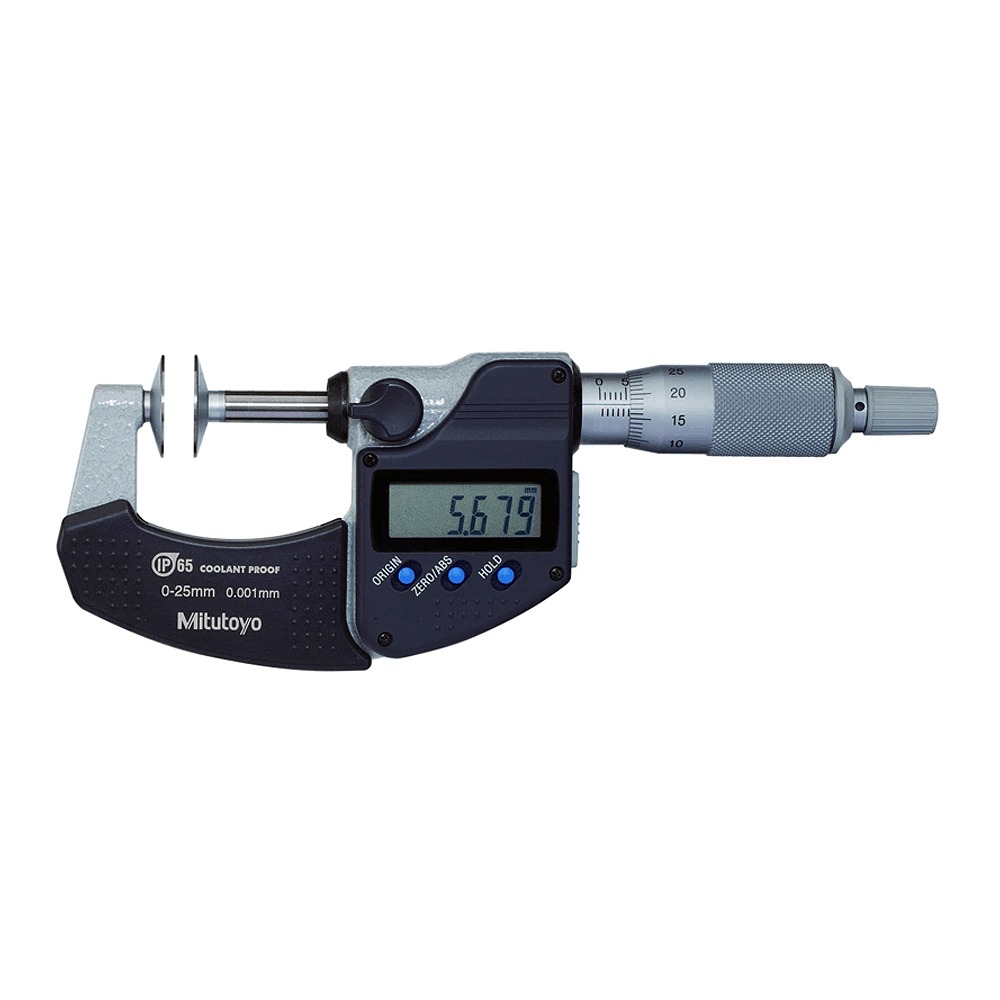

This Digimatic Disc Micrometer enables you to measure hard-to-reach features,
offering you the following benefits:
| Digital/Analog: |
Digital
|
| Inch-Metric: |
Metric
|
| Range: |
0 – 25 mm
|
| Digital step: |
0,001 mm
|
| Maximum Permissible Error J MPE: |
±4 µm
|
| Accuracy: |
±4 µm
|
| Flatness: |
1 µm
|
| Parallelism: |
4 μm
|
| Display: |
LCD, character height 7.5 mm
|
| Measuring spindle: |
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
|
| Scale: |
Thimble and sleeve satin chrome finish, ø18 mm
|
| Measuring force: |
3 – 8 N
|
| Measuring force: |
3 – 8 N
|
| Power supply: |
1 battery SR-44
|
| Battery life: |
Approx. 2,4 years
|
| Measurable module: |
0.5 – 6
|
| Delivered: |
Including box, setting standard (from 25 mm upward), key, 1 battery
|
| ABS / INC (INC ZERO): |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| Function lock: |
Yes
|
| HOLD: |
Yes
|
| Mass: |
290 g
|
