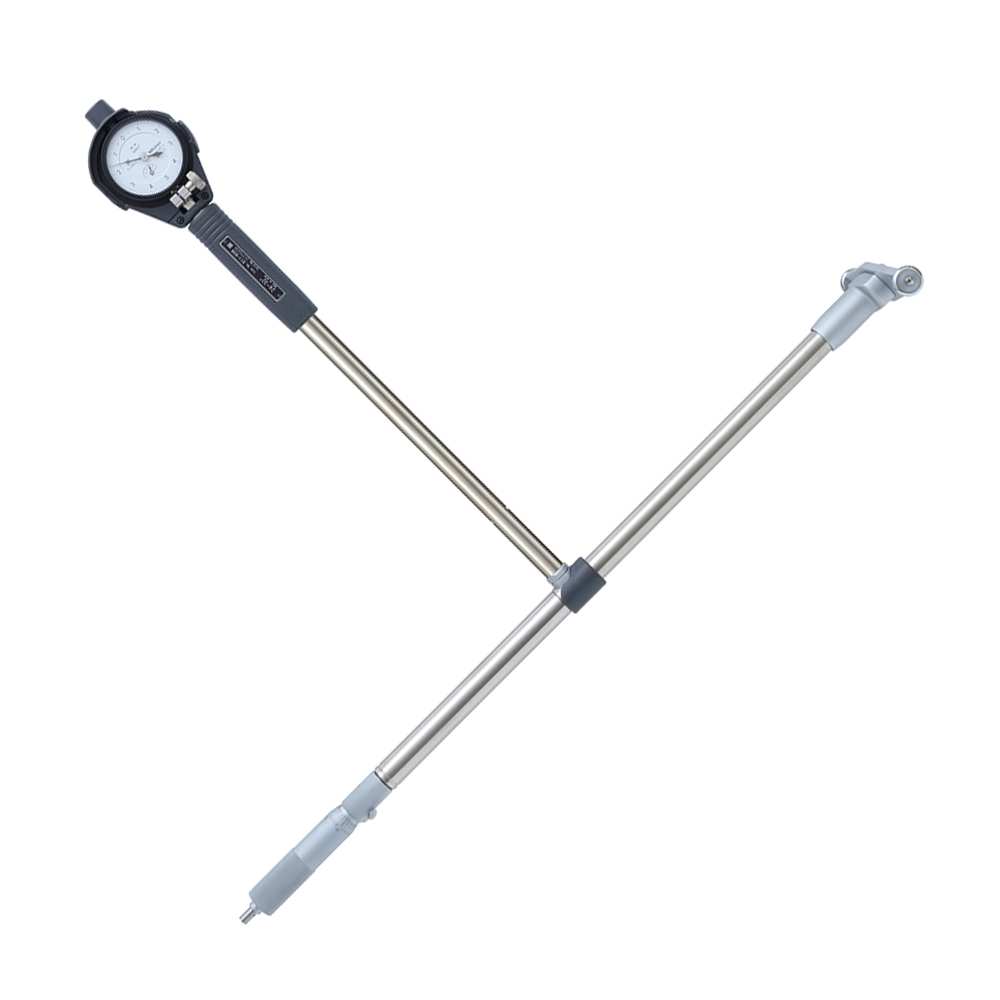

Mitutoyo 511-843-858-20 2-Point Inside Measuring Instrument

Bore Gauge with Micrometer Head, 2,4-4″, 0,0005″

REQUEST A QUOTE

Prices shown are for the United Arab Emirates only and are excluding VAT @ 5% Local Rate (Unless Otherwise Stated).

Other countries may incur additional import duties – Please Contact Us for further details and pricing for your location.

Description

This is a micrometer head that enables measurements without interchangeable anvils.
It offers you the following benefits:

A long plunger stroke gives you amazing accuracy.
Contact points are carbide (>18 mm range), giving you high durability and wear resistance.
A large grip reduces heat transfer from the operator by 50%.
Wide measuring range with sub-anvils.

Digital/Analog:	Analog
Inch-Metric:	Inch
Range:	2.4 – 4 “
Graduation:	0.0005″
Measuring depth:	6″
No. Dial Indicator:	2922AB
Micrometer Head stroke:	0.4″
Accuracy:	2 µm
Repeatability:	0,5 µm
Sub anvils:	0.4, 0.8″
Delivered:	Including box, dial indicator, plastic cover for indicator
Mass:	430 g
