Movella Xsens MVN Awinda – Motion seamlessly captured

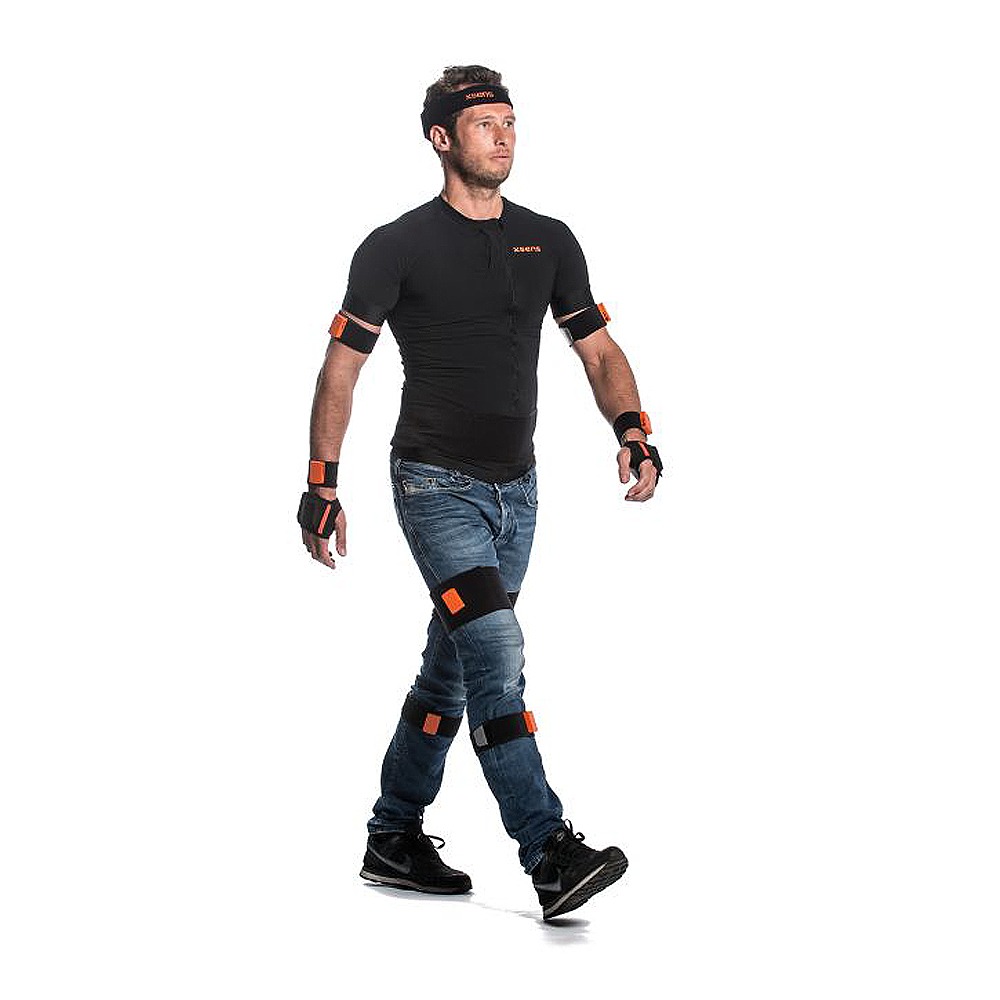

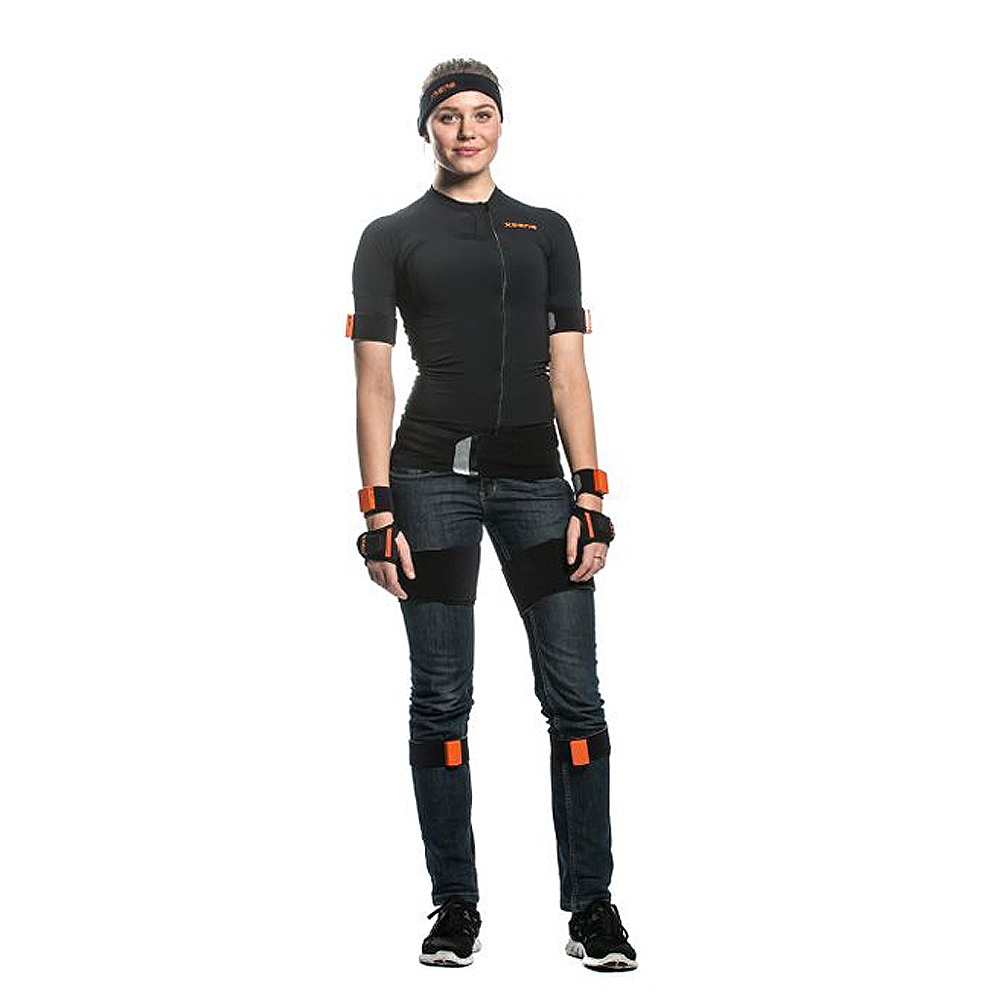

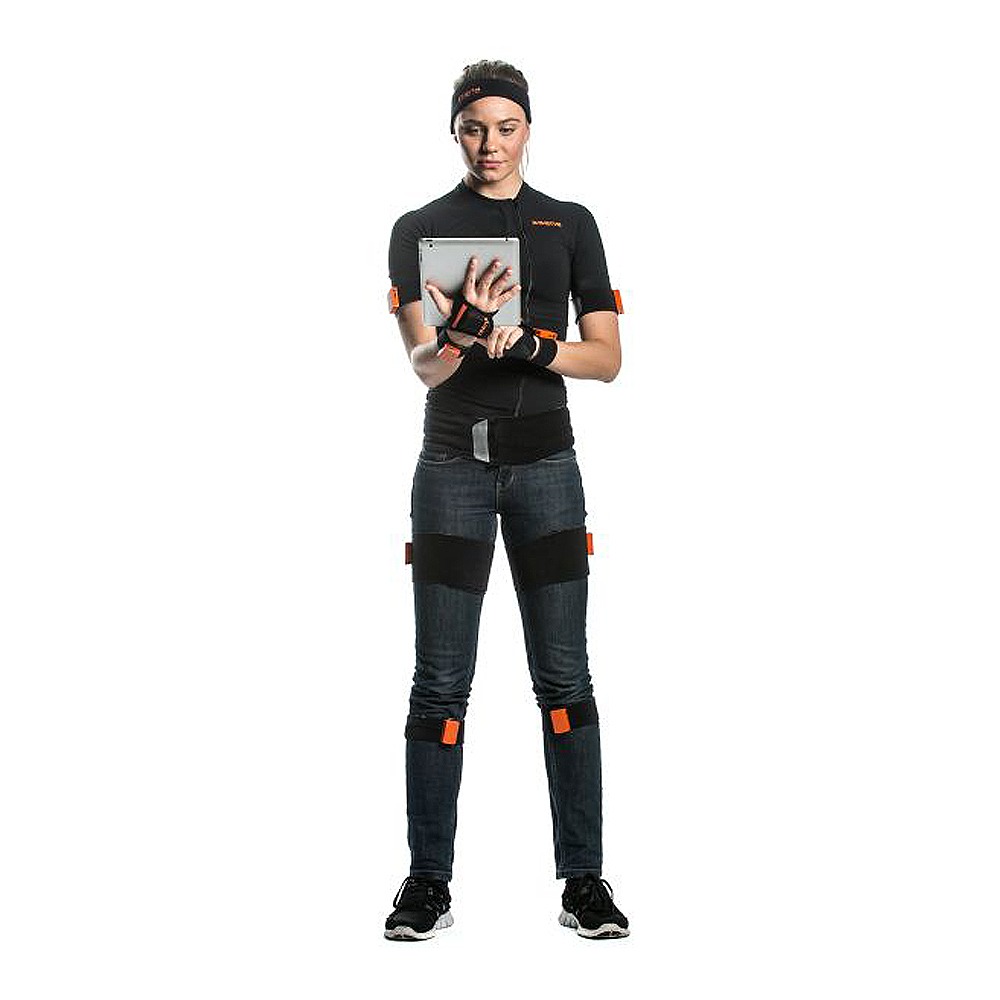

Xsens Awinda is a motion capture system with 17 wireless sensors fitted on the body with adjustable straps. It supports fast, easy, and reliable motion capture, making it ideal for regular motions and multiple actors using the same setup.
Xsens Awinda – Intermediate performance:
Request A Quote
Prices shown are for the United Arab Emirates only and are excluding VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties – Please Contact Us for further details and pricing for your location.
Movella Xsens MVN Awinda – Motion seamlessly captured
Xsens Awinda delivers motion capture through 17 wireless sensors, which you attach to the body using adjustable straps. Because the system supports fast, easy, and reliable capture, you can quickly record regular motions or switch between multiple actors.
Moreover, the system offers a range of up to 50 meters, so you can apply it across diverse fields. For example, professionals use it in occupational health and safety, rehabilitation, injury prevention, animation, entertainment, biomechanics, and human factor research.
In addition, you can wear the sensors comfortably over clothing, which makes the setup even more flexible.
Inertial motion capture works by attaching sensors directly to the body to record movement. However, that represents only part of the solution. To complete a motion capture system, you also need powerful hardware and software working together seamlessly.
Xsens Awinda – Intermediate performance:
| Update rate | Latency | Hardware synchronization |
| Up to 60 Hz | 30 ms | Includes, via BNC connectors, third-party e.g. EMG sensors, force plates (with Awinda station) |
| Wireless range | On-body buffering | Casing |
| 50 m | 30 sec | Sturdy neoprene case |
| Battery life | Sensors | Finger tracking |
| 12 hr (for orders after Oct 1, 2024) | 17 wireless sensors (and 1 prop sensor) | Full compatibility with Xsens Metagloves by Manus, Xsens gloves by Manus, Manus Prime II, and Stretchsense gloves |
| Wireless communication | Clothing | |
| Radio protocol (Awinda protocol) | Full body strap set (including 3 Awinda shirts in size S, L, & XL) | |
| Wireless datalink | Charging | |
| Awinda recording and docking station | Charging stations |
