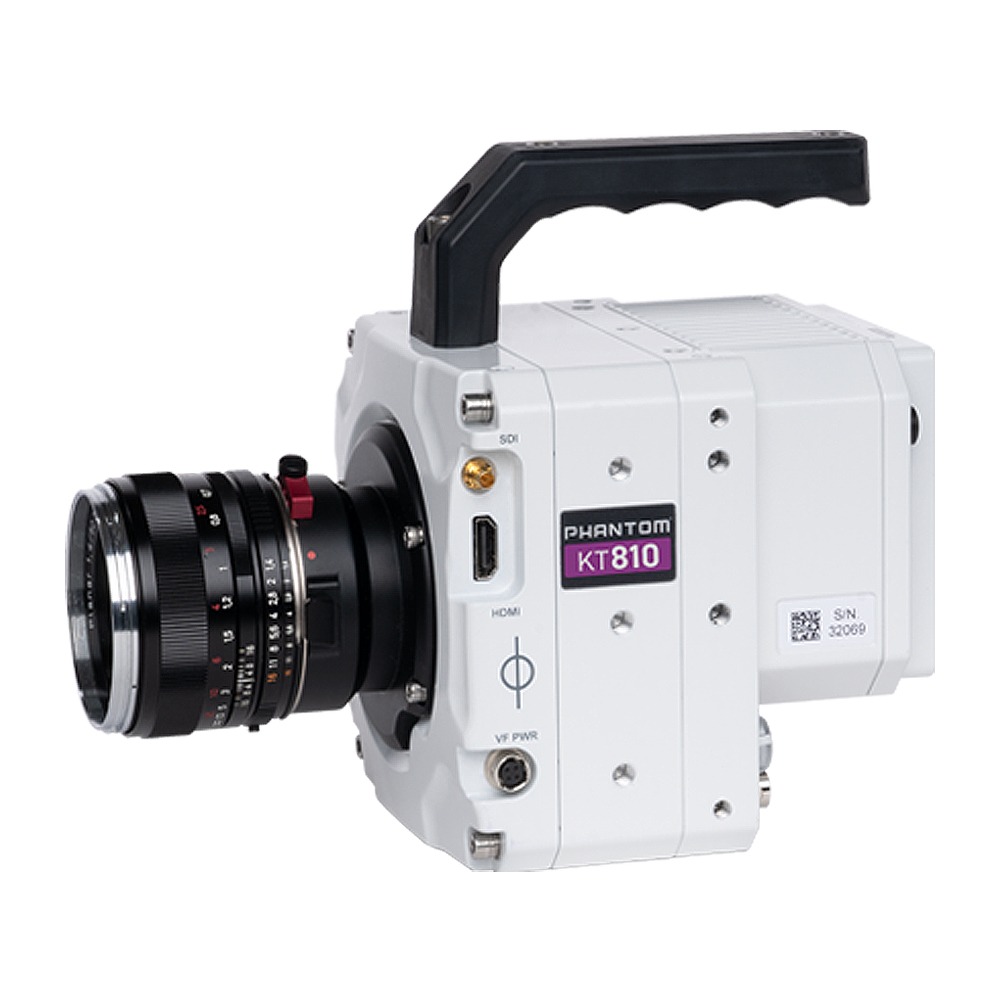

The Phantom KT810 features the latest backside illuminated (BSI) sensor technology at 1280 x 832-pixel resolution, ensuring optimal response in light-starved conditions. These features make it ideal for advanced high-speed techniques like DIC and industrial material analysis applications.

• 7,750 fps – At 1280 x 832 – 1 Mpx
• 916,600 fps  – At 128 x 64 – Max. Frame Rate
• 84.6% – QExFF (Mono) – Quantum Efficiency
• 190 ns* – *With FAST option export controlled – Min. Exposure

Precision Imaging for High-Speed Research

Engineered for advanced scientific imaging, the KT810 captures 1-Mpx resolution at high frame rates — ideal for analysing fine details and fast-moving fragments. Its compact 3.2-kg build reduces setup complexity, making it perfect for tight lab spaces and intricate experimental configurations.

• Seamless integration: Programmable I/O capabilities let you customise triggering and synchronisation precisely to your research needs.
• Premium features: Capture remarkable detail with Extreme Dynamic Range (EDR) that effectively manages pixel saturation for luminous events.
• Streamlined workflow: Save time with image-based auto-trigger (IBAT), multi-Cine partitions and continuous recording through PCC software.

Features to Enable Advanced Scientific Applications

Phantom KT-Series cameras come equipped with features that enable portability for remote field work and the connectivity required for both simple and advanced scientific applications in a laboratory or research environment.

• Operate remotely in the field: Alternatively, use the camera’s on-camera control interface and save to removable CF-Express cards for a standalone, untethered workflow.
• Standard 10Gb Ethernet: Reliably control and efficiently download via PCC software.
• Designed for scientific imaging: The KT810 performs exceptionally in advanced scientific applications with limited available light, including stress, strain and impact analysis, material analysis experiments, product drop tests and vibration FFT studies.

NEXT-GEN SENSOR PERFORMANCE

The KT810’s proprietary sensor technology features a stunning 1280 x 832-pixel resolution BSI sensor where photons have direct access to photodiodes for optimal response in light-starved conditions.

BSI sensor architecture achieves a QExFF (Quantum Efficiency x Fill Factor) of 84.6% (mono).

Binned mode combines pixels for a frame rate boost and improved aspect ratio at 640 x 384 and below.

Unrivalled performance standards: Comprehensive test reports following the EMVA 1288 standard provide clear verification of the sensor’s superior performance. This highlights the exceptional pixel response in challenging light conditions.

SOLVING YOUR MOTION ANALYSIS CHALLENGES

MINIMIZED MOTION BLUR – Eliminates motion blur with exposure times as short as 190 ns.
SUPERIOR RESOLUTION – High sensor resolution can contribute to superior spatial resolution in images.
THE ULTIMATE IN COMPATIBILITY – Compatible with industry-standard software packages for seamless workflow integration.
PURE DATA = PRECISE INSIGHTS – Provides raw files with the ability to disable image correction for more precise analysis.
