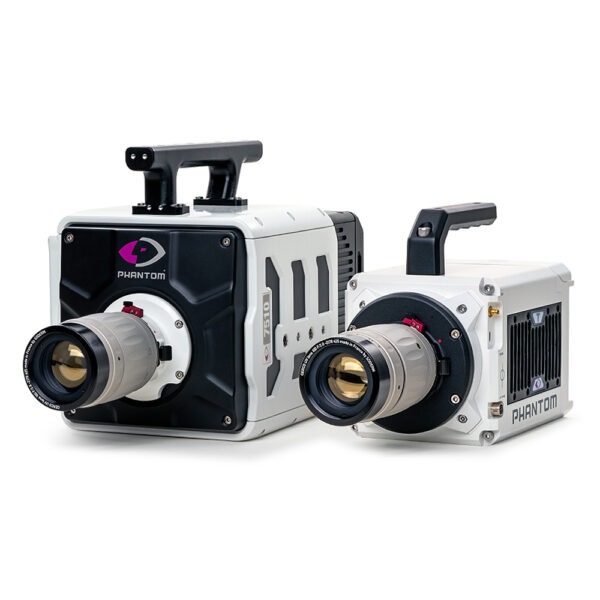

Phantom UV-Extended T Series Cameras
The Phantom T3610, T2410, T2110, and TMX High-Speed cameras (TMX 7510/6410/5010) have a special variant for UV capture. These cameras capture events in the ultraviolet (UV) spectrum down to 250nm, with over 70% QE at 300nm.
As “Extended range” cameras, they also operate in the visible and near-infrared (NIR) spectrums. Their performance matches standard monochrome cameras. They offer the same frame rates, resolutions, modes, Phantom features, and FAST options, plus UV capability.
Request a Quote
Prices shown are for the United Arab Emirates only and are excluding VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties – Please Contact Us for further details and pricing for your location.
Phantom UV-Extended T Series Cameras
The Phantom T3610, T2410, T2110, and TMX High-Speed cameras (TMX 7510/6410/5010) have a special variant for UV capture. These cameras capture events in the ultraviolet (UV) spectrum down to 250nm, with over 70% QE at 300nm.
As “Extended range” cameras, they also operate in the visible and near-infrared (NIR) spectrums. Their performance matches standard monochrome cameras. They offer the same frame rates, resolutions, modes, Phantom features, and FAST options, plus UV capability.
Phantom UV cameras require just a UV lens and the wavelength band filter for your application. If more signal is needed, the cameras can also connect to an intensifier or be used in conjunction with a laser.
Phantom UV cameras also accept standard lenses for applications in the visible light spectrum.
Yes, the UV cameras may have the FAST option. Please note that the FAST option is export-controlled.
Unfortunately, no. Phantom UV cameras are available only in monochrome.
Which UV camera model is best for my application?
Your application’s required frame rate and duration will help determine which UV camera is most suitable. The table below can help narrow down the most suitable camera.
| T2110-UV | T2410-UV | T3610-UV | TMX 5010-UV | TMX 6410-UV | TMX 7510-UV | |
| FPS at 1 Mpx | 21,010 | 24,270 | 38,040 | 50,725 | 65,940 | 76,000 |
| Maximum FPS | 483,330 | 525,000 | 525,000 | 583,330 | 736,280 | 744,670 |
| (Without FAST) | ||||||
| Memory (GB) | 32, 64, 128, 256 | 64, 128, 256 | 64, 128, 256 | 128, 256, 512 | 128, 256, 512 | 128, 256, 512 |
