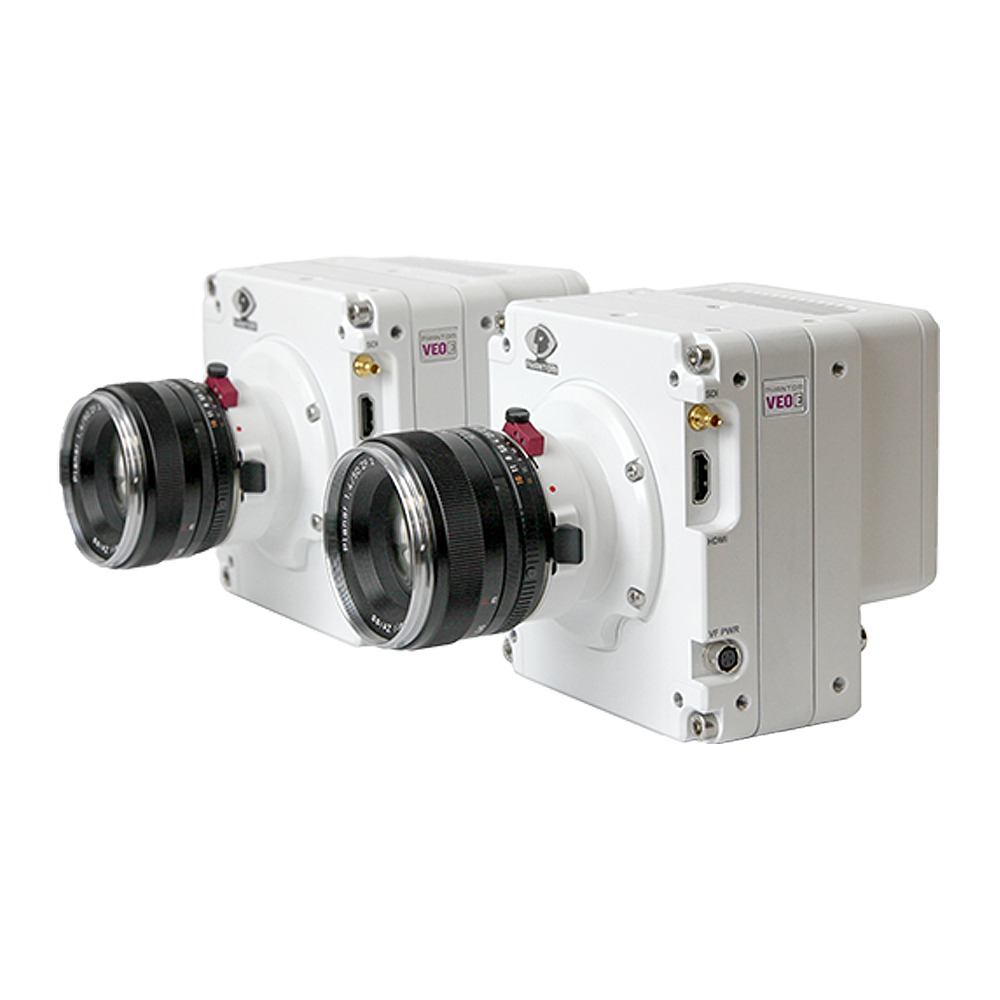

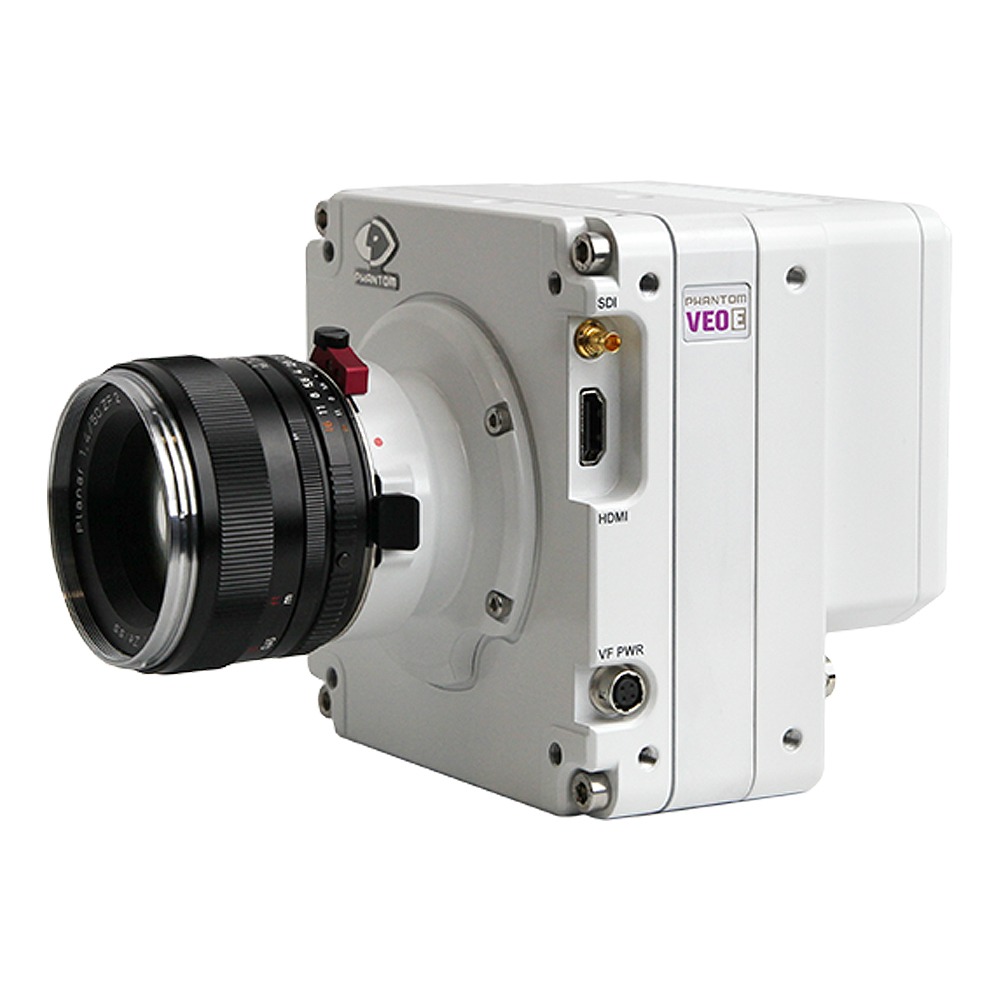

Phantom VEO-E 310L High-Speed Camera

LINK GULF SKU PHA083-0036 CATEGORY TAGS , ,

The Phantom VEO-E 310L is compact, lightweight, and cost-effective. It uses the reliable Phantom VEO base, ideal for software-based high-speed imaging.

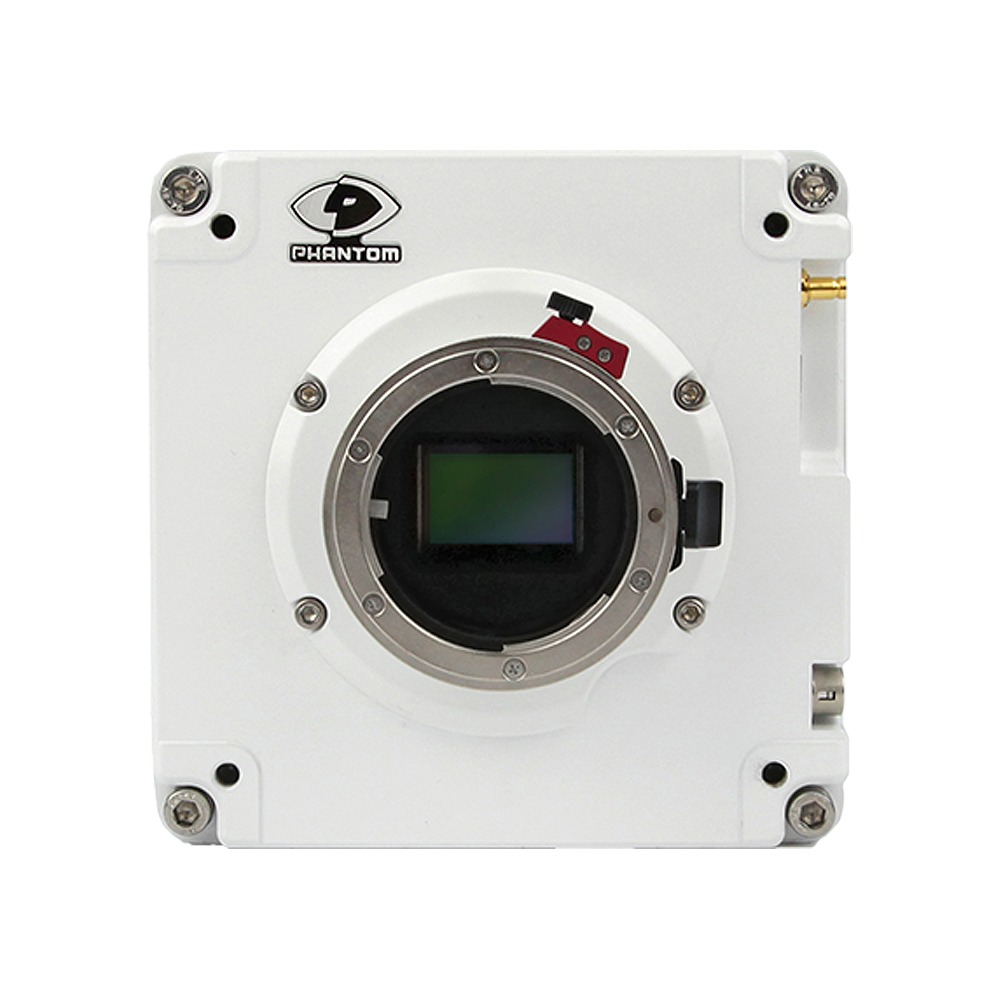

Flexibility is crucial for research tools at colleges and universities. The VEO-E 310L offers interchangeable lens mounts, allowing users to choose the best lens for each activity. It supports Nikon, PL, C, and Canon EF (with electronic control) lenses. Switching lenses is quick and easy.

  • 3,200 fps at 1280 x 800
  • Sensitivity: Quantum Efficiency*
    • Mono: 33.9%
    • Colour: 29.5%
  • 18 or 36 RAM
  • Streamlined Connectivity

*QExFF at 532nm

Request a Quote

Prices shown are for the United Arab Emirates only and are excluding VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties – Please Contact Us for further details and pricing for your location.

Description
Specifications
Request A Quote

The Phantom VEO-E 310L is compact, lightweight, and cost-effective. It uses the reliable Phantom VEO base, ideal for software-based high-speed imaging.

Flexibility is crucial for research tools at colleges and universities. The VEO-E 310L offers interchangeable lens mounts, allowing users to choose the best lens for each activity. It supports Nikon, PL, C, and Canon EF (with electronic control) lenses. Switching lenses is quick and easy.

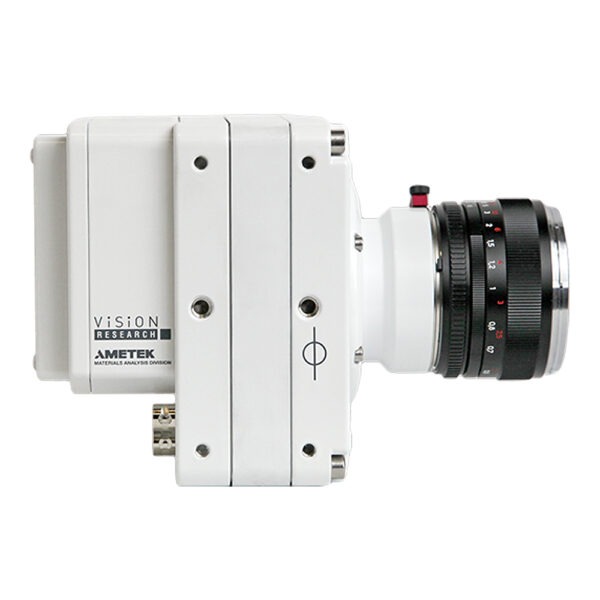

The VEO-E 310L body is made of milled aluminium, making it extremely lightweight. At just 4 lbs (1.8 kg), it is the lightest of the VEO series. The body protects sensitive internal components. Sealed electronics prevent airflow, reducing dust buildup on the sensor.

Key Features
  • HDMI and SDI video outputs
  • Image-Based Auto Trigger (IBAT)
  • Programmable I/O
  • Cine RAW file format
What’s in the box?
  • Power supply with XLR extender
  • Ethernet Cable
Resolution FPS
2560 x 1600 800
1600 x 1600 1,190
2048 x 1080 1,460
1280 x 720 3,310
640 x 480 8,570
128 x 4 287,000*

*Standard Model. The 310L-E225 model is limited to 225,000 fps.

Common resolutions and frame-rates, other resolutions available.

  • Phantom VEO-E cameras are compact, lightweight and built for efficient image capture.  The 340 model captures at over 800 frames per second at four megapixel resolution.
  • Features include Programmable I/O, HDMI video, and Canon EOS lens support.

Throughput/Speed

  • 3 Gpx/second
  • Max speed at full resolution of 2560 x 1600 is 800 fps
  • Max speed at reduced resolution of 128 x 4 is 280,000 fps
  • Max speed of 340L-E225 is 225,000 fps
  • Minimum frame rate of 24 fps



Sensor Specifications

  • CMOS sensor
  • 2560 x 1600 pixels
  • 10 µm pixel size
  • 12-bit depth
  • TE cooled
  • CAR in 128 x 4 increments
  • EMVA 1288 measurements at 532nm
    • Quantum Efficiency: 60.2% mono; 43.6% colour
    • Max. SNR: 41.6 dB
    • AST (p) 40.4 mono; 54.1 colour
    • Saturation Capacity (e-): 14512 mono; 14335 colour
    • Temporal Dark Noise: 23.8e
    • Dynamic Range: 55.5 dB

Exposure

  • 1 µs minimum exposure
  • Global electronic shutter
  • Exposure Index (E.I.) for controlling apparent ISO
  • Extreme Dynamic Range (EDR)
  • Auto Exposure
  • Shutter Off mode for PIV

Memory

  • 18 GB, 36 GB high-speed internal RAM

Record Times

7.5 seconds at maximum frame rate, largest resolution and maximum internal memory

Special Features

  • Segment memory for up to 63 cines in multi-cine mode
  • Continuous recording
  • Programmable I/O
  • HD-SDI and HDMI video
  • Event marking
  • Frame timestamp (IRIG SMPTE or MISP)
  • IRIG in/out (modulated and unmodulated)
  • Shutter off mode for PIV exposure
  • 1.71 μs straddle time
  • Standard Internal mechanical shutter for automatic/remote Current Session Reference (CSR)
  • Image-Based Auto-Trigger (IBAT)
  • One 12 VDC, 6W auxiliary power port
  • Secondary IP address
  • Field-based firmware upgrades

Triggering

  • Programmable trigger location (pre/post trigger recording)
  • Image-Based Auto-Trigger
  • Trigger from software
  • Hardware trigger BNC
  • High Voltage (HV) trigger compatible

Timing and Synchronisation

  • Frame synchronisation to internal or external clock (FSYNC)
  • IRIG in/out (modulated or unmodulated)

Signalling

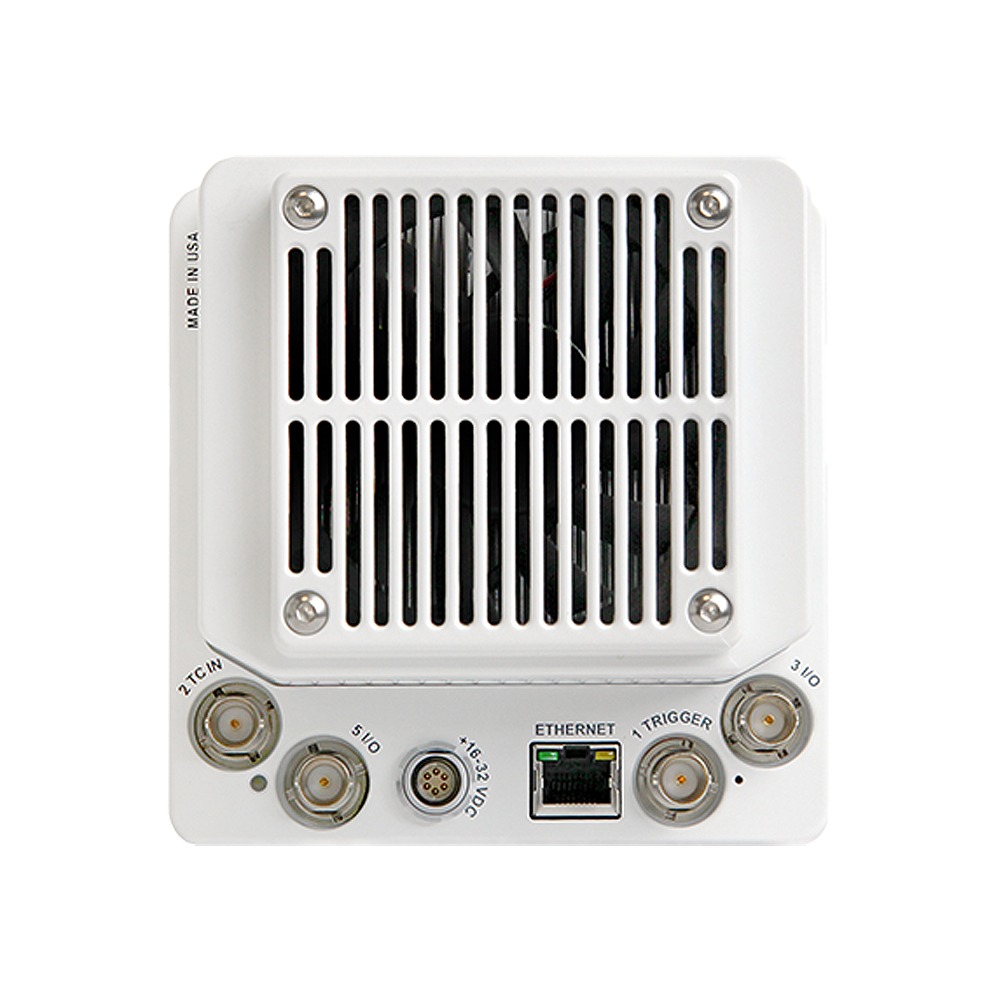

  • Dedicated Trigger and Timecode in BNCs on the camera body
  • Programmable I/O ports include adjustable (assign and define) signals, including F-sync, strobe, event, trigger output, ready and more

Connectivity

  • Gb Ethernet for control and data downloads.
  • Standard RJ45 port.

Camera Control

  • Phantom Camera Control (PCC)
  • SDK available

Video Out

  • 3G HD-SDI and HDMI on all VEO models.
  • Supports up to 1080p 60.

Lensing

  • Nikon F-mount standard supports F & G style lenses
  • A Canon EOS mount is optional
  • PL-mount optional
  • C-mount optional
  • (lens not included)

Video Processing

  • Brightness
  • Gain
  • Gamma
  • Saturation
  • White Balance
  • Pedestal
  • Tone curve
  • Filters
  • Color matrix
  • Image flip and rotate
  • Crop
  • Scale

Data Acquisition

National Instruments M- and X-Series DAQ modules with integrated support in PCC

Motion Analysis

  • Basic measurements via Phantom Application:
  • Distance
  • Speed
  • Acceleration
  • Angles and Angular Speed
  • Manual and Automatic point collection for target tracking
  • Compatible with 3rd-party solutions

Supported File Formats

  • Cine RAW & Cine Compressed
  • AVI
  • h.264 mp4
  • Apple ProRes .mov
  • Multipage TIFF
  • MXF PAL & MXF NTSC
  • Uncompressed QuickTime
  • Windows BMP
  • LEAD
  • JPEG
  • JTIF
  • RAW
  • DNG
  • DPX

Power

  • 100 – 240 VAC, 16-32 VDC via primary power input.
  • 80 Watt 24V power supply included

Mechanical Specifications

  • Size (without lens):5 x 5 x 4.4″ (127 x 127 x 111 mm) (L x W x H);
  • Weight: 4 lbs (1.8 Kg)

Environmental Specifications

  • Operating Temperature: -10°C – 50°C
  • Shock: MIL-STD-202G Method 213-B. Rated
    • 30G with shutter;
    • 100G without shutter;
    • sawtooth wave, 11ms, +/- 10 pulses all axes(60 total)
  • Vibration: Rated 12Grms; Figure 2A-1, Test Condition D,15 min per axis(without lenses)

APIs

  • Phantom SDK
  • LabView
  • MatLab

Ships Standard With

  • Power supply
  • Ethernet cable
  • SDI DIN Cable
  • Phantom PCC software
  • Getting Started Guide

Options

  • Canon EOS lens mount
  • PL-mount
  • C-mount

Popular Accessories
