Revopoint Metrohub 3D System

Boost productivity with the collaborative Metrohub, enabling automated batch object 3D scanning and measurement in labs and production lines. Work safely alongside it, as its sensitive force sensors detect even the slightest contact, preventing collisions immediately.

Flexible, Automated, Accurate and Fast Robotic Scans

• Volumetric Accuracy – 0.025 mm + 0.04 mm x L (m)
• Agile Motion – 6-axis, ±360° Movement
• 1 Blue Single Laser Line
• 30 Blue Cross Laser Lines
• Rapidly Capture 1,500,000 Points
• 919 mm – Working Radius
• 5 Kg Max Payload
• 1N Force Sensitivity

Automate Complex Scans

• Easily automate point cloud capture of complex shapes up to 0.5 m in diameter using the flexible six-axis Vbot 9 fitted with the Revopoint Metrohub 3D System
• Volumetric Accuracy: 0.025 mm + 0.04 mm x L (m)
• Agile Motion: 6-axis, ±360° Movement

Real-Time High Speed Automated Inspection

• With 30 cross-line blue lasers capable of measuring up to 1.5 million times per second, and marker-free tracking.
• The Metrohub seamlessly integrates into production lines, enabling efficient automated inspection, greatly enhancing efficiency.

6-Axis Force Sensing

• High-Precision Force Detection
• Equipped with advanced integrated 6-axis force sensors, the Vbot 9 provides ultra-sensitive force feedback with rapid response times.
• This enables real-time, dynamic multi-axis force measurement and exact force control, empowering high-accuracy, complex manipulation tasks across demanding industrial and research applications.

Smooth Drag-to-Teach Operation

The intuitive drag-to-teach function enables beginners to configure even complex tasks simply by moving the robot.

Plug-and-Play 3D Automation

Quickly set up complex automated scans using the system’s drag-to-teach, CAD-to-path, or vision-to-path features, significantly reducing programming time and complexity by enabling intuitive, flexible, and accurate path creation.

Fully Integrated with Revo Software

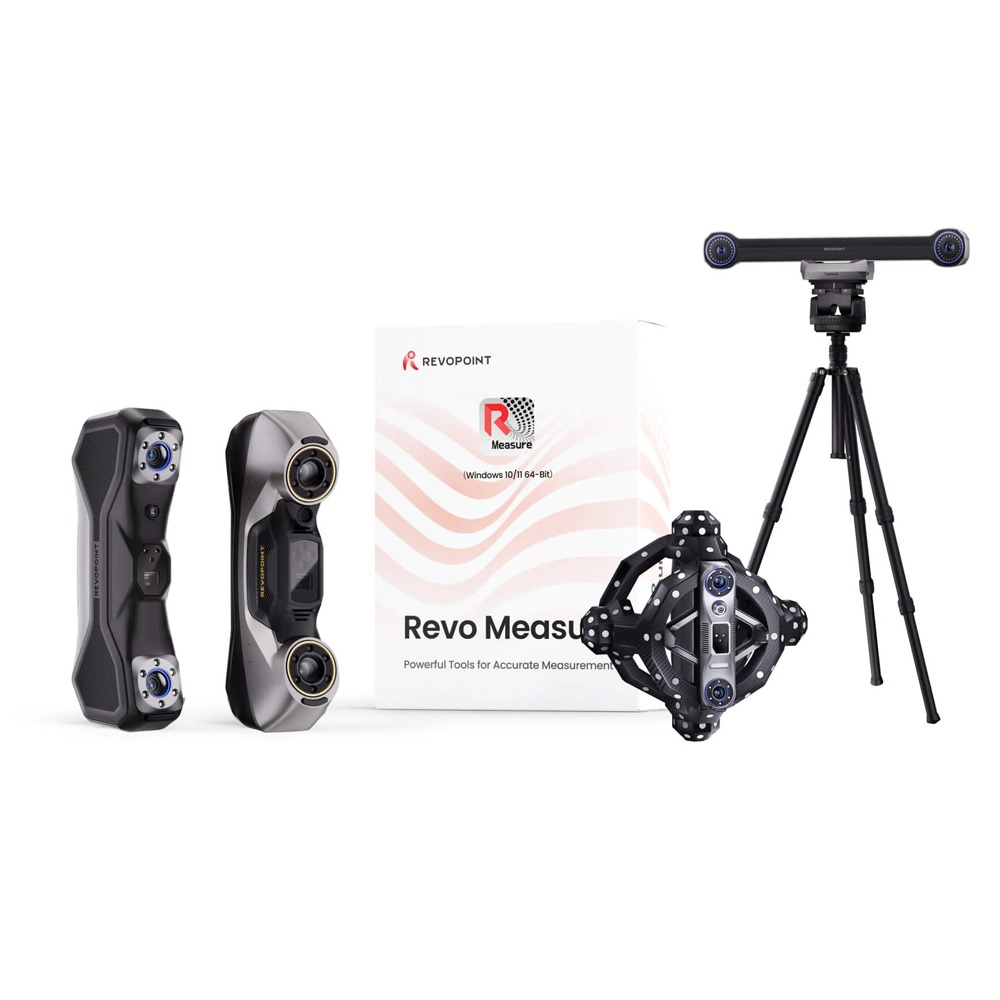

• Fully integrated with Revo Measure for streamlined data analysis and reporting. Supporting automatic CAD import, mesh and point cloud comparisons to CAD, and GD&T measurement for one-click measurements with unmatched efficiency.
• Effortlessly connect with Revo Design for seamless scan-to-CAD workflows, enabling fast and accurate reverse engineering.
  Calibrate in Minutes
• Skip complex, lengthy calibrations and achieve perfect multi-pose calibration free of human error with Trackit and Vbot’s auto-calibrating system, ensuring reliable, accurate, and easy calibration in only 25 minutes.

Safe by Design

Safely work alongside the robot without requiring safety fences or separate zones, with its 1N force sensitivity, ensuring complete collision protection.

Third-Party Development Kit

Its TCP/IP-based software control protocol enables easy integration with third-party control software for factory automation, inspection, batch 3D scanning, and other applications.

Detachable & Flexible

The Scanner is detachable for independent use, enhancing application flexibility.

Applications – Automated, Accurate, and Application-Ready 3D Scanning

Automated 3D Scanning

The robot autonomously scans turbine blades in a full 360° rotation, achieving 98% coverage in a single scan.

Additive Manufacturing

Generate production-ready STL files with intelligent robotic path planning, ensuring complete coverage and eliminating blind spots on complex geometries.

Casting and Forging

Perform in-line scanning of high-temperature castings with real-time thermal compensation, reducing mould adjustment time by up to 70%.

Plastics

Optimisation in all phases of injection moulding, blow moulding, and thermoforming.

Metal Forming

Inspect weld seams on automotive body panels to enable high-precision, automated quality assurance.

Battery Inspection

Scan prismatic battery cases with full coverage in minutes, dramatically faster than traditional CMM methods that can take hours.

Revopoint Metrohub 3D System Package Contents

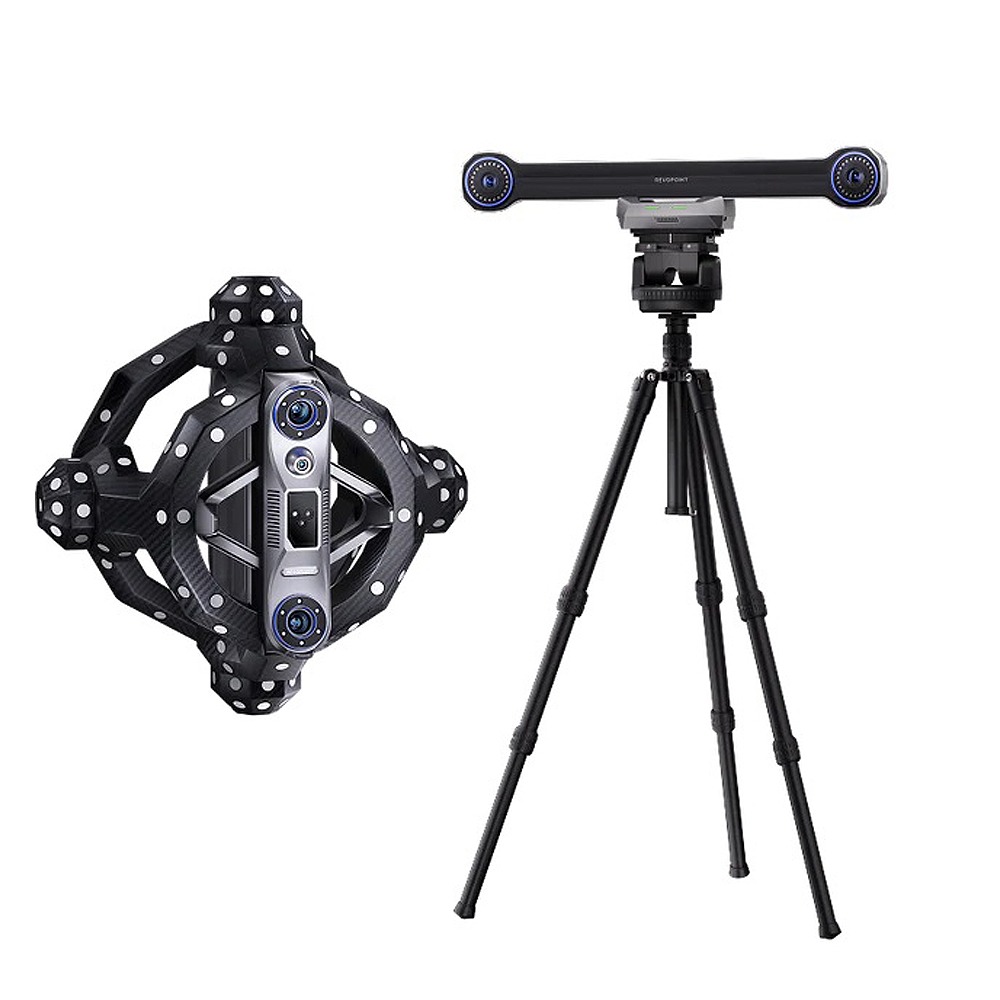

• Trackit Tracking 3D Scanner
• Vbot 9 Robot

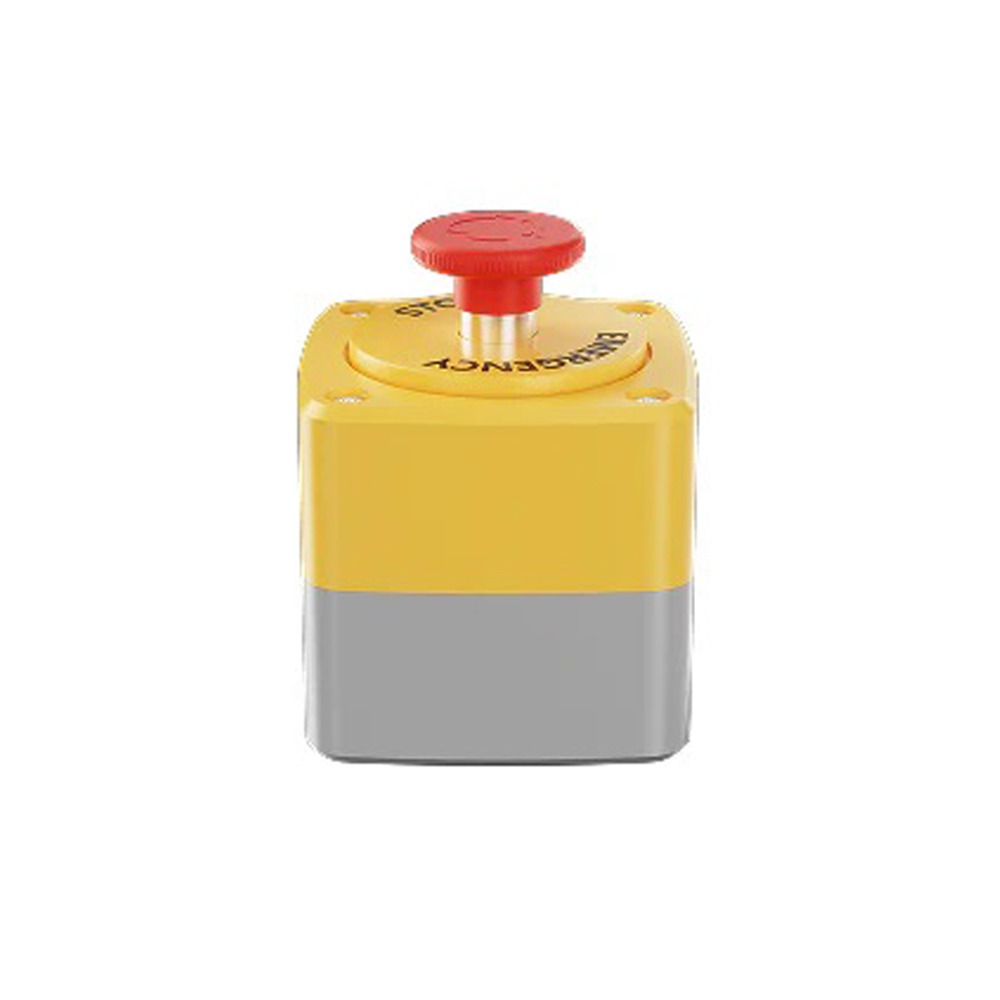

• Emergency Stop Button

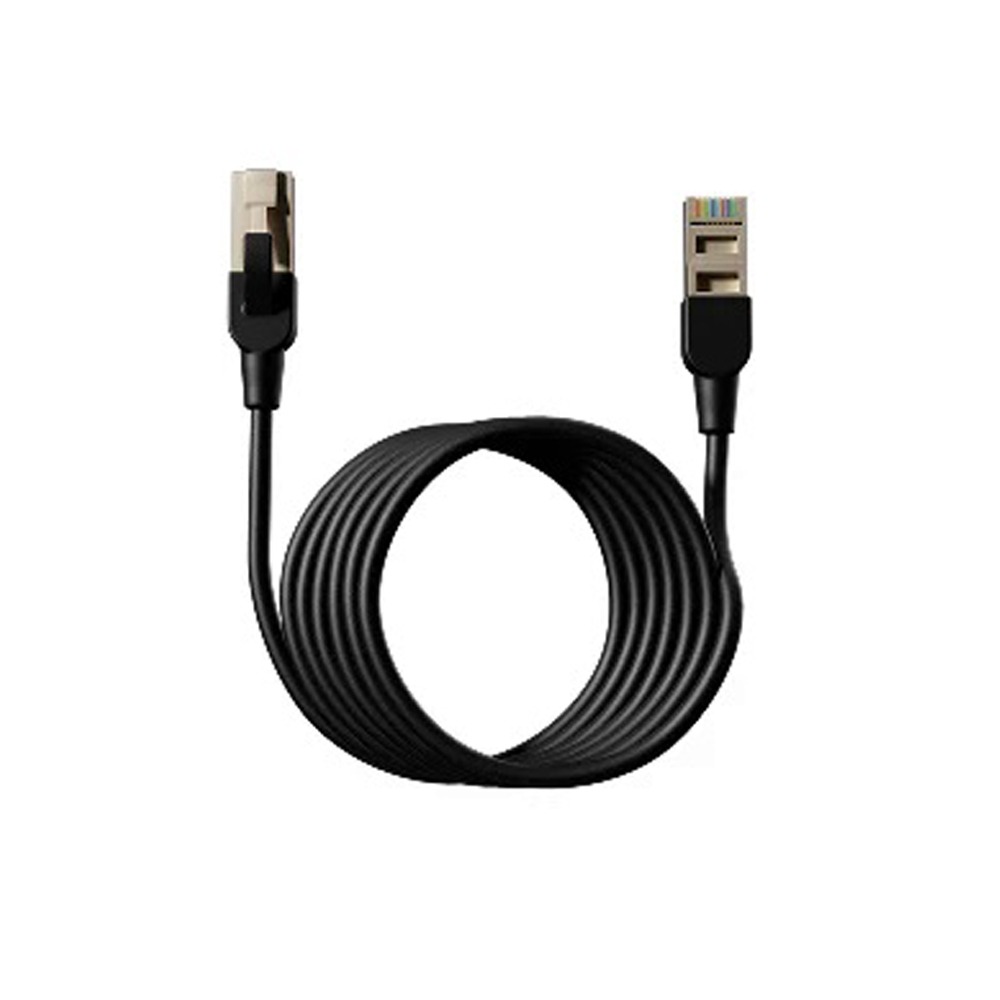

• Ethernet Cable

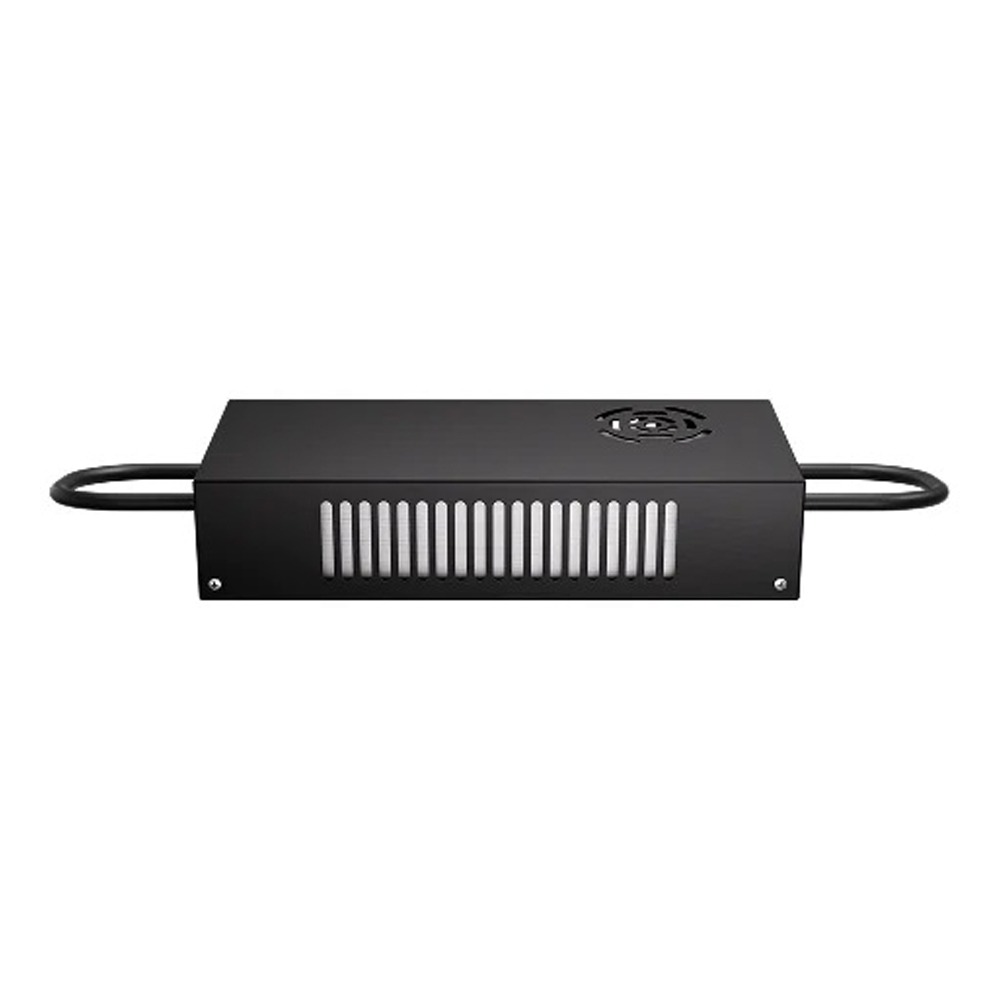

• Robot Power Adapter

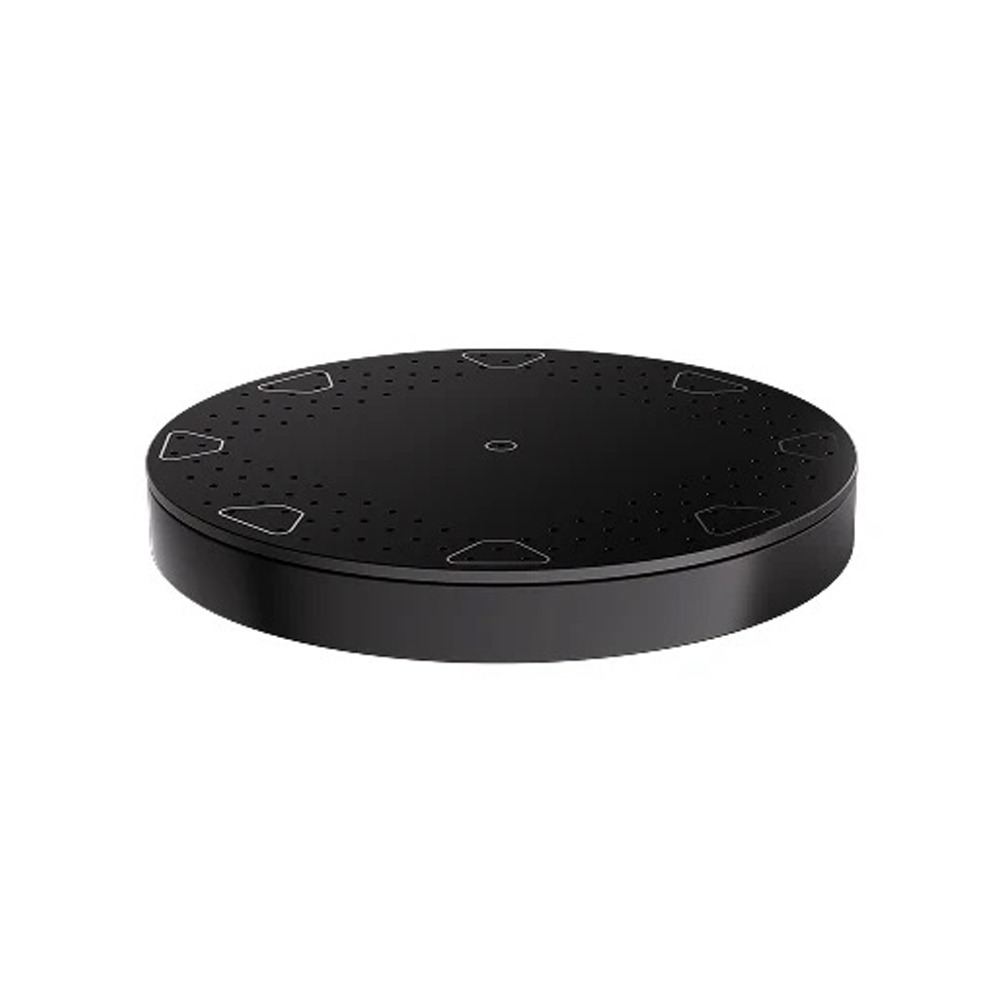

• Electric Large Metal Turntable

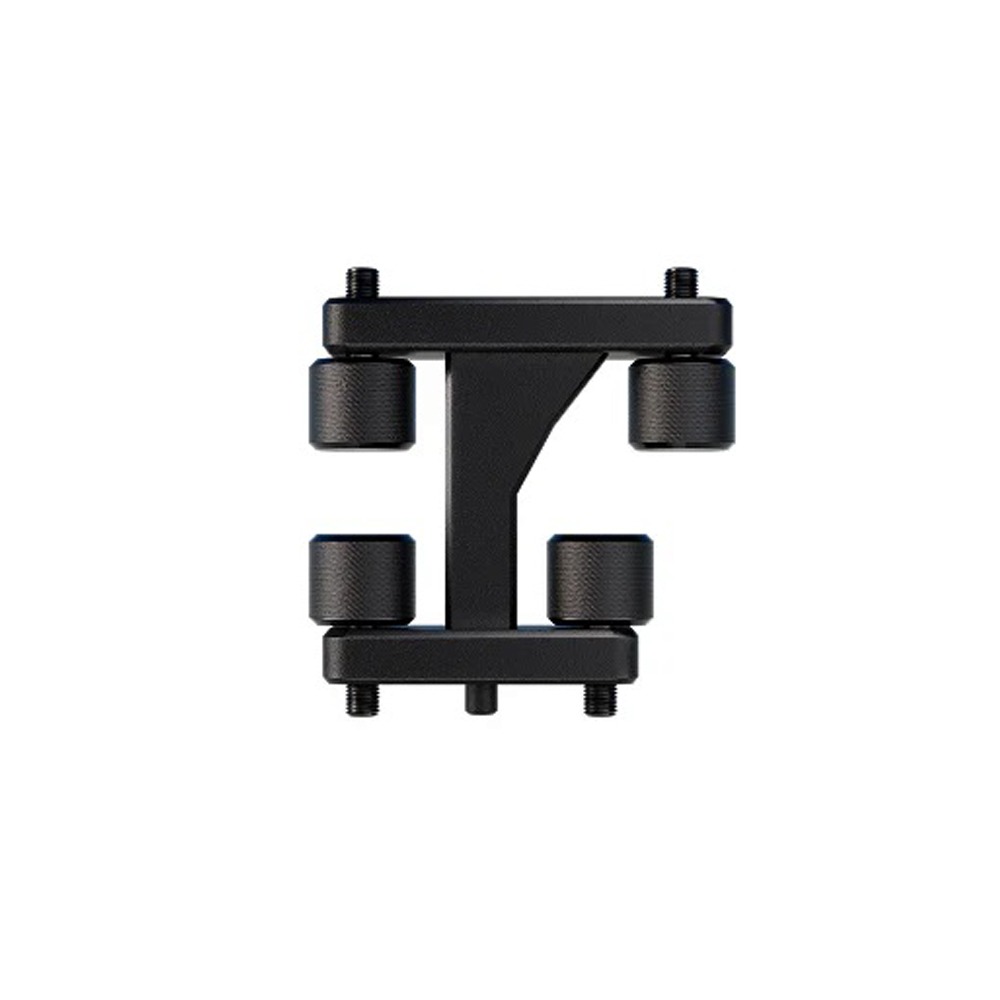

• Scanner Adapter
• T-shaped Target Bar (*8)

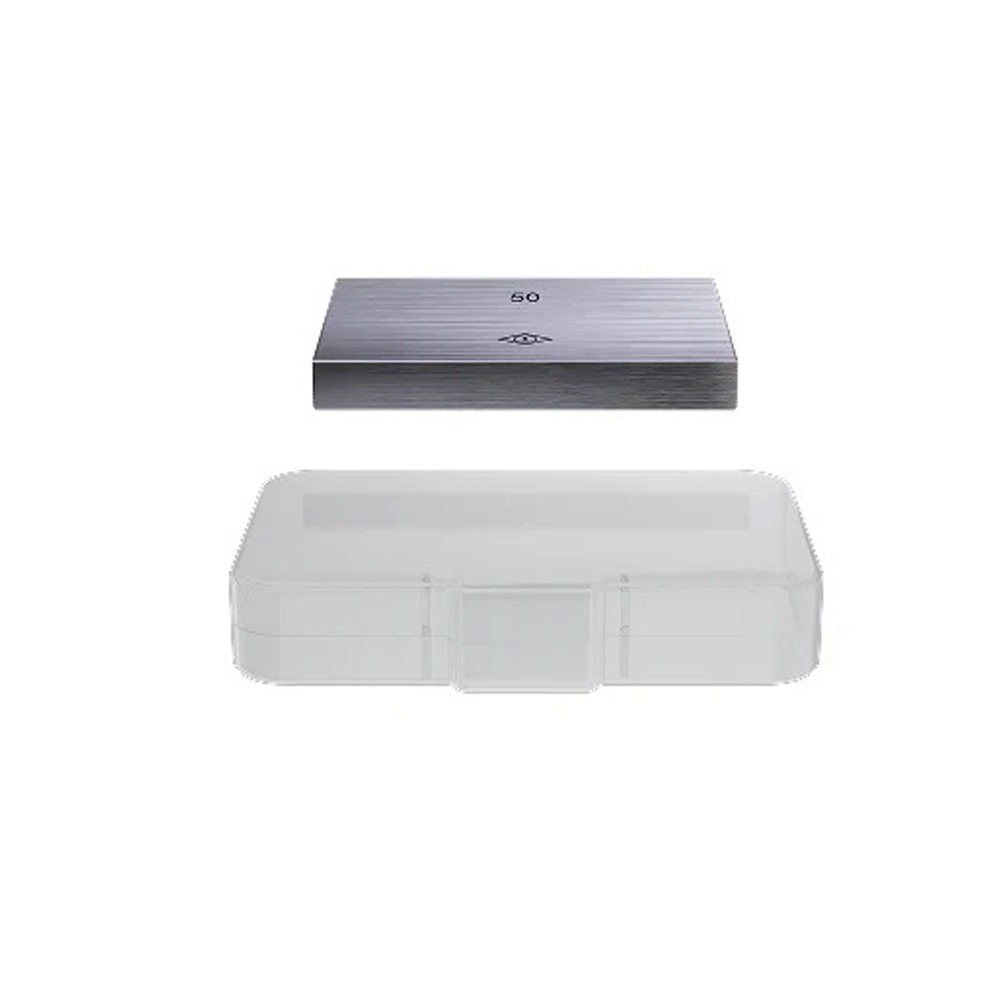

• Gauge Block

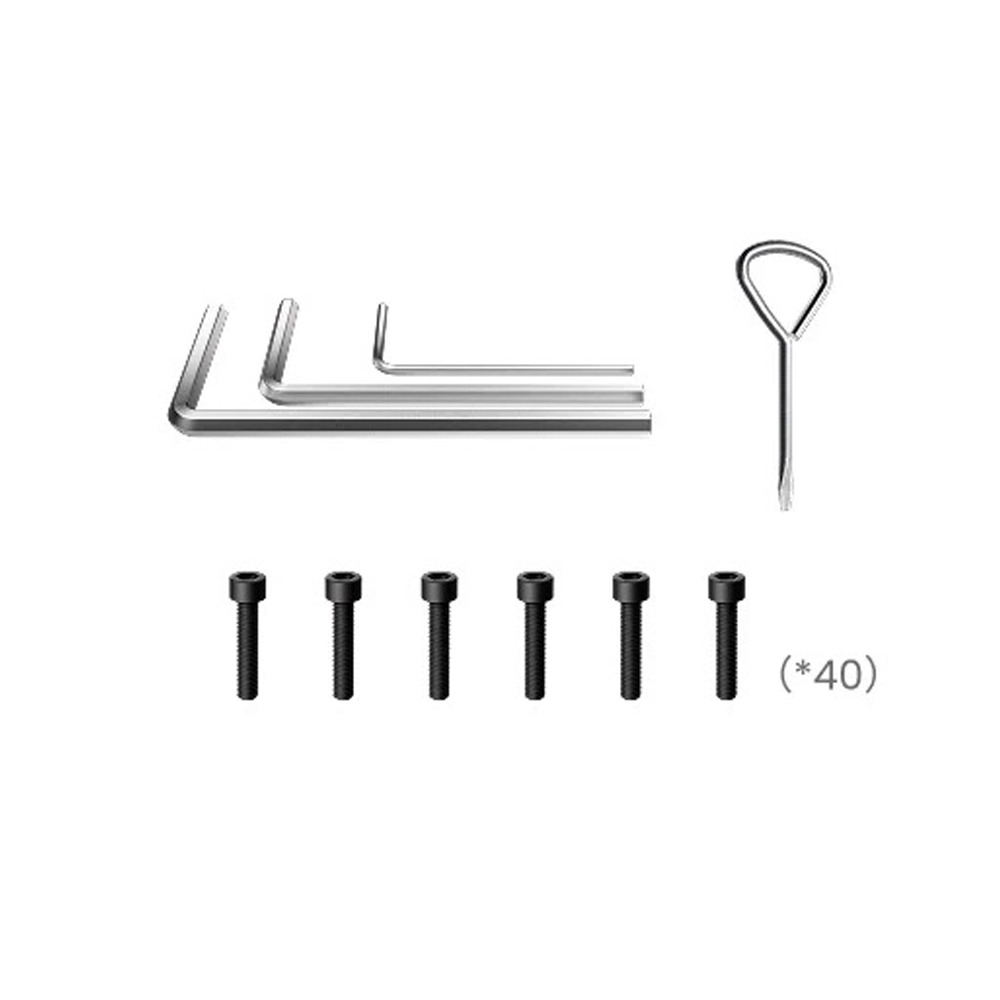

• Hex Screw Kit、
• Flat Head Screwdriver

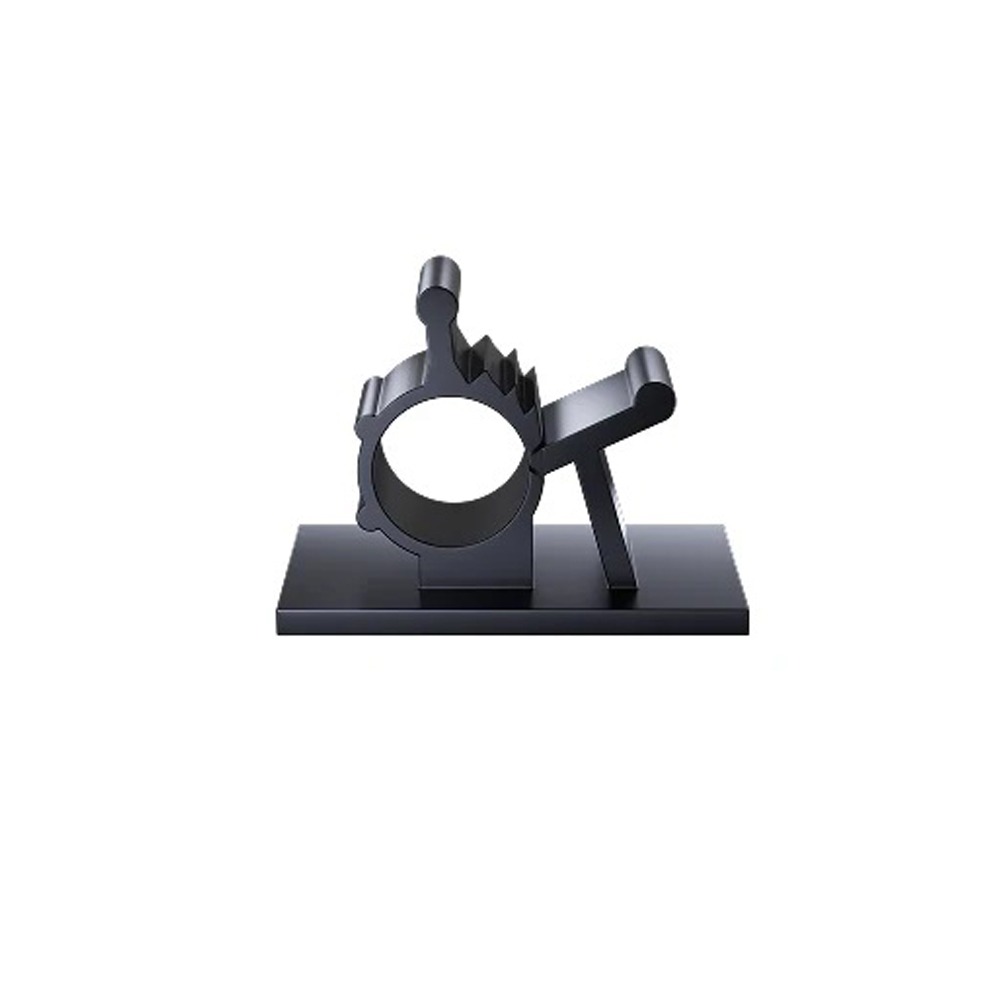

• Cable Clip (*20)

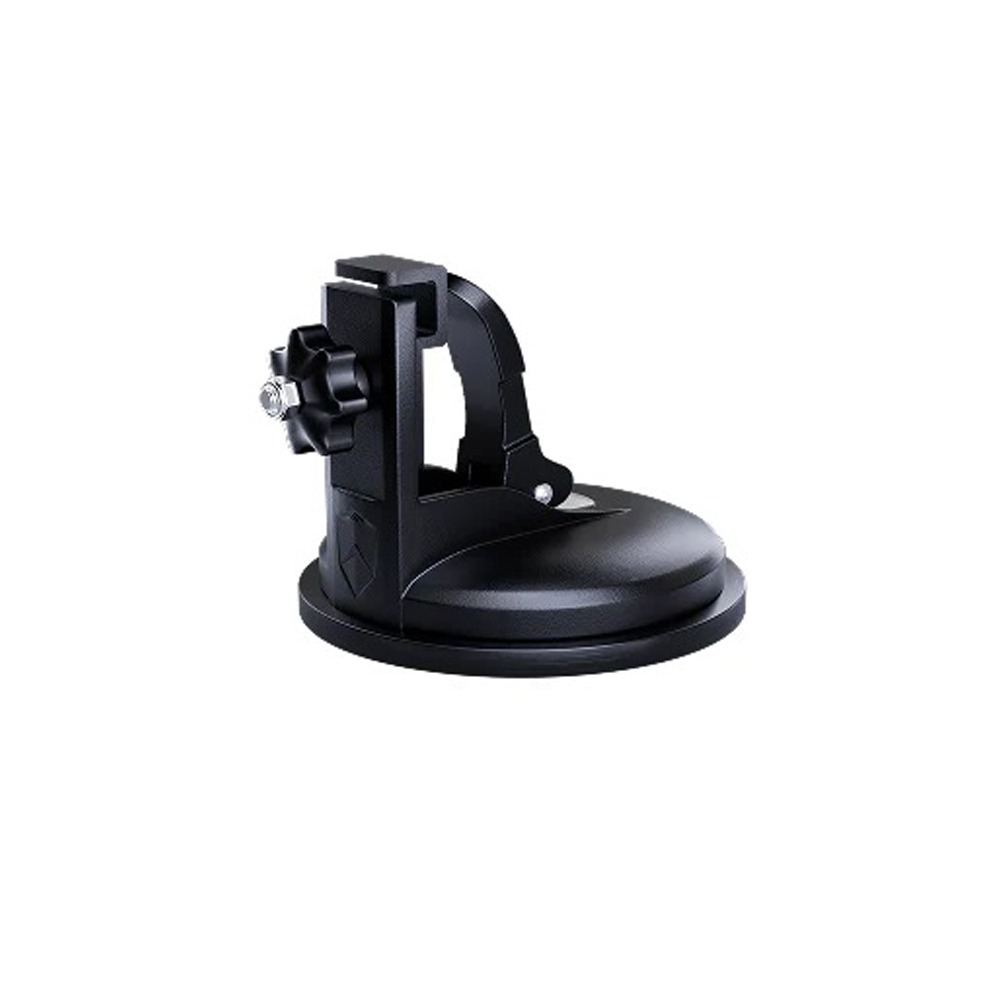

• Suction Cup Cable Holder

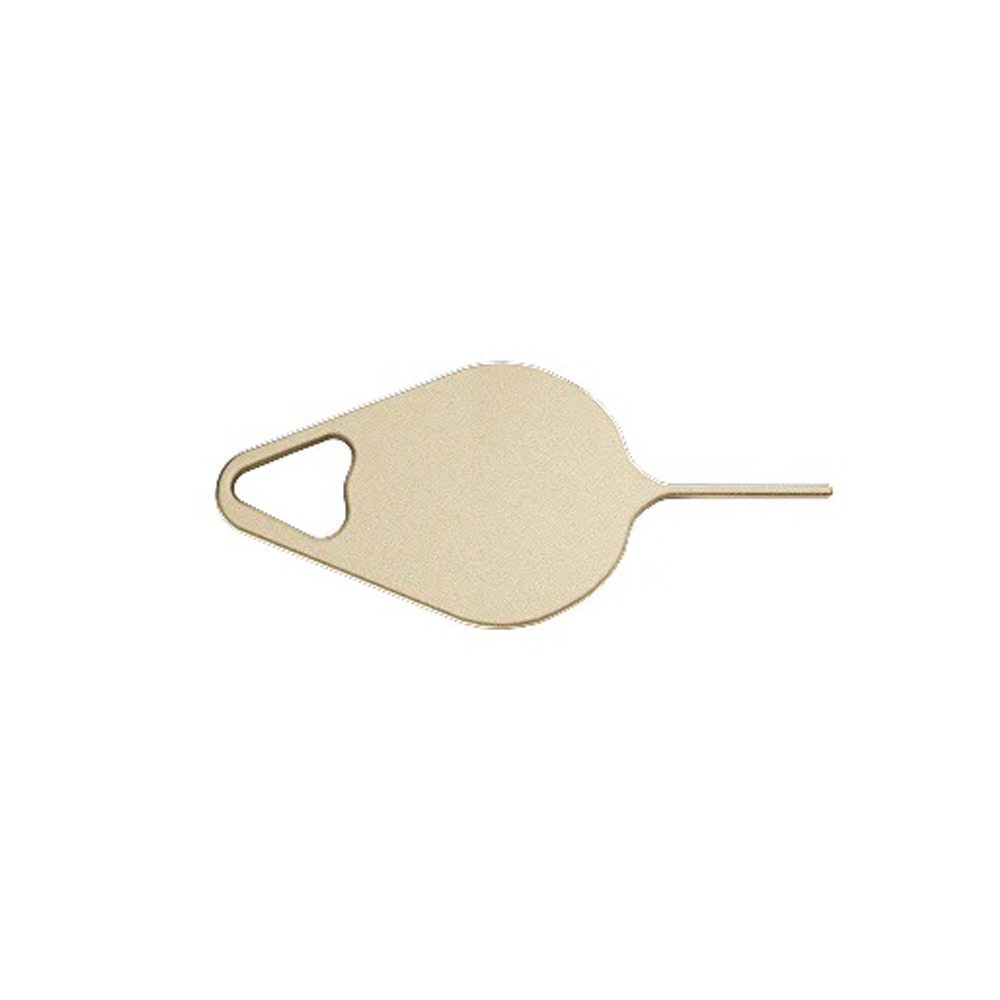

• Pin Tool
