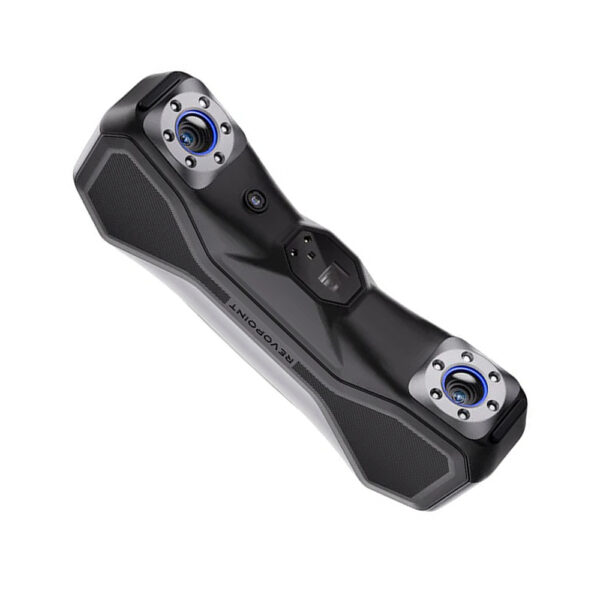

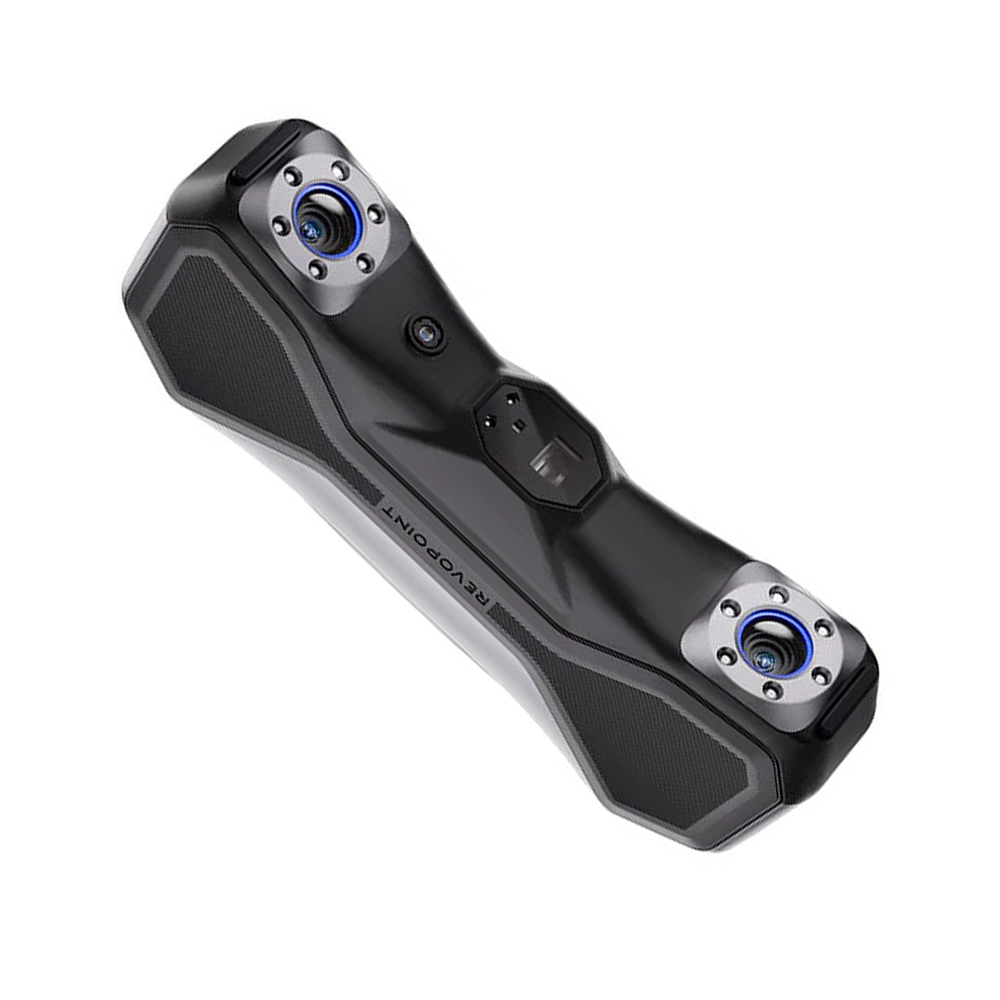

Revopoint MetroX Advanced: Blue Laser Line and Full-field Structured Light 3D Scanner.

• 4 Flexible Scanning Modes
• Metrology-grade Accuracy: Up to 0.03 mm
• Volumetric Accuracy: Up to 0.03 mm + 0.1 mm × L(m)
• Up to 7,000,000 Points/s in Full-field Structured Light Mode
• Up to 800,000 Points/s in Multi-line Laser Mode
• 14 Blue Laser Cross Lines
• 7 Blue Laser Parallel Lines
• 62 Line Blue Full-field Structured Light
• Automated Turntable Scanning Mode

Cross Lines – Up to 800,00 points per second with GPU-accelerated* 14 crossed blue laser lines.

*GPU Compatibility: Only NVIDIA RTX 30 and 40 Series GPUs are currently supported – Windows Only

Parallel Lines – Capture objects with 7 high-powered parallel blue laser lines.

Full-field Blue Structured Light – Get it scanned fast at up to 7 million points per second using 62 lines of structured blue light.

Auto Turntable – One-click scans with the Dual-axis Turntable, Revo Scan, and MetroX working in unison.

Metrology-grade Accuracy

• Precision: Up to 0.01 mm
• Accuracy: Up to 0.03 mm

Flexible Single Capture Area

• 160 x 70 mm at 200 mm
• 320 x 215 mm at 400 mm

No Spray Needed – Scan Shiny or Black Surfaces

Get Scans Done Fast

• Up to 7,000,000 Points/s in Full-field Structured Light Mode
• Up to 800,000 Points/s in Multi-line Laser Mode

Marker Blocks Help Scan Faster – This handy set of shaped marker blocks makes setting up featureless object scans much faster.

Powerful Software Revo Scan 5 MetroX

Revo Scan 5 MetroX does everything from point cloud creation to fusion, meshing, editing, merging, importing, and exporting.

Fast GPU-Powered Scans – Up to 60 FPS, Easy to Control, 4 Buttons

HD RGB Camera – Create Vibrant 3D Models

Multiple Applications

Reverse Engineering – Whatever your workpiece, MetroX streamlines your reverse engineering processes with metrology-grade 3D models ready for scan-to-CAD processes.

Quality Control – With MetroX’s high-quality 3D models, defects and deviations in the manufacturing process can be rapidly identified to ensure that even complex parts or products meet the design tolerance requirements.

Additive Manufacturing – Use MetroX to create an ultra-accurate digital twin of nearly any small to medium object for consistent 3D-printed reproductions.

Rapid Prototyping – Accelerate rapid prototyping by using MetroX to capture accurate dimensions of objects, ensuring the prototype meets design requirements, minimises iterations, and saves time and resources.
