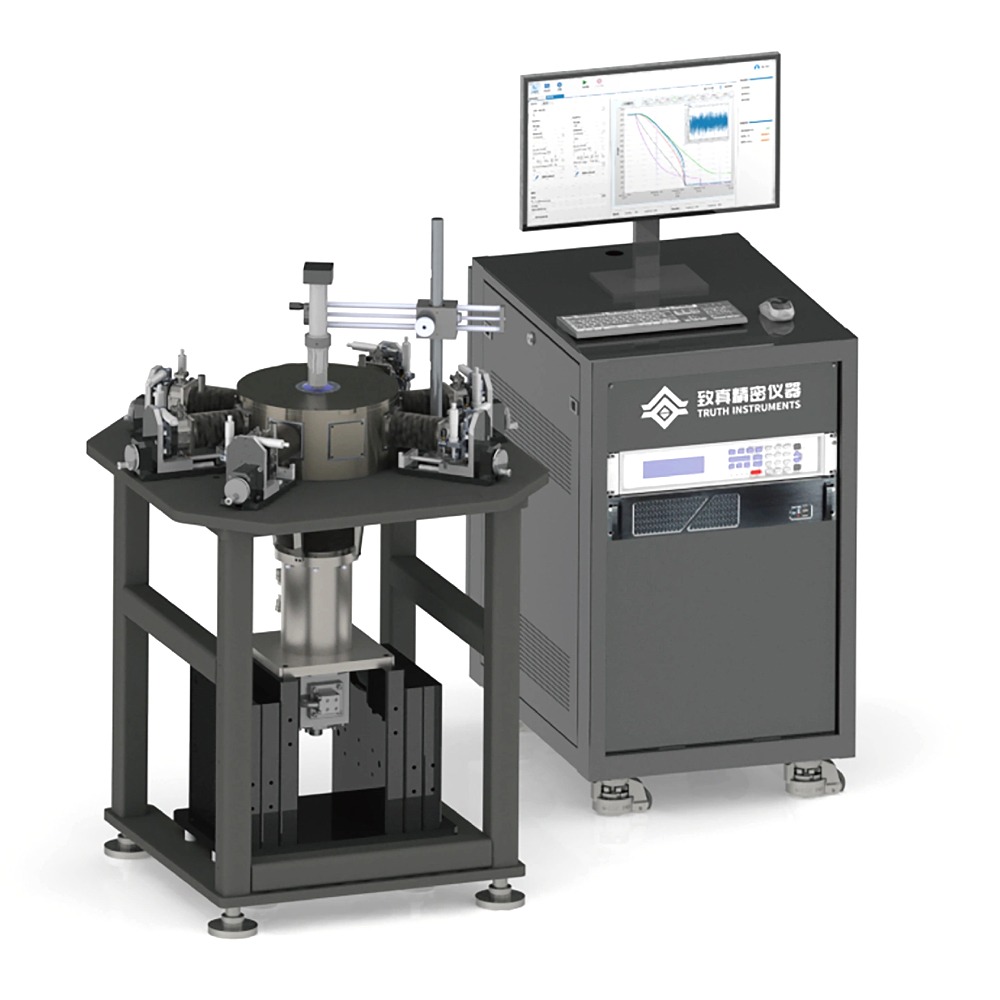

The Cryogenic Probe Station, PS-Cryo, is a closed-loop 4 K system with a GM refrigeration mechanism. This requires no consumable liquid helium and provides a low-temperature environment down to 4 K. It can accommodate 2-inch samples and meets standard I-V, C-V, microwave, and optoelectronic testing needs.
Highly integrated and systematised, the software operation allows one-click temperature control and electrical testing, making it the most cost-effective choice for cryogenic electrical testing.
Core Operations
Request a Quote
Prices shown are for the United Arab Emirates only and exclude VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties.
Please Contact Us for further details and pricing for your country or location.
The Cryogenic Probe Station, PS-Cryo, is a closed-loop 4 K system with a GM refrigeration mechanism. This requires no consumable liquid helium and provides a low-temperature environment down to 4 K. It can accommodate 2-inch samples and meets standard I-V, C-V, microwave, and optoelectronic testing needs.
Highly integrated and systematised, the software operation allows one-click temperature control and electrical testing, making it the most cost-effective choice for cryogenic electrical testing.
Core Operations
| Sample Temperature | 4 K-420 K |
| Temperature Stability | <±20 mK(4 K~420 K) |
| Vibration | Sample stage vibration <1 μm (peak-to-peak) |
| Vacuum | Low-temperature vacuum <1.2 E-3 Pa |
| Probe Arm Stroke | X-Y-Z,50 mm-25 mm-25 mm |
| Needling Range | Any point within 25 mm diameter |
| Number of Probe Arms | Standard 4 probe arms, up to 8 supported |
| Thermal Anchor | Probe arms and sample stage temperature difference <10 K |
| Sample Space | Sample holder diameter up to 51 mm |
| Sample Holder Type | Ground, coaxial, triaxial options |
| DC Probe | ZN50, tip material tungsten or beryllium copper |
| Frequency Range | 0-50 MHz with low-temperature coaxial cable, 0-1 GHz with semi-rigid coaxial cable |
| Microwave Probe | GSG, tip material tungsten |
| Frequency Range | 0-40 GHz with K-type connector, 0-67 GHz with 1.85 mm connector |
| Electrical Leakage Current | <100fA@1 V |
| Optical Microscope | 0.75 X~3.75 X continuous zoom |
