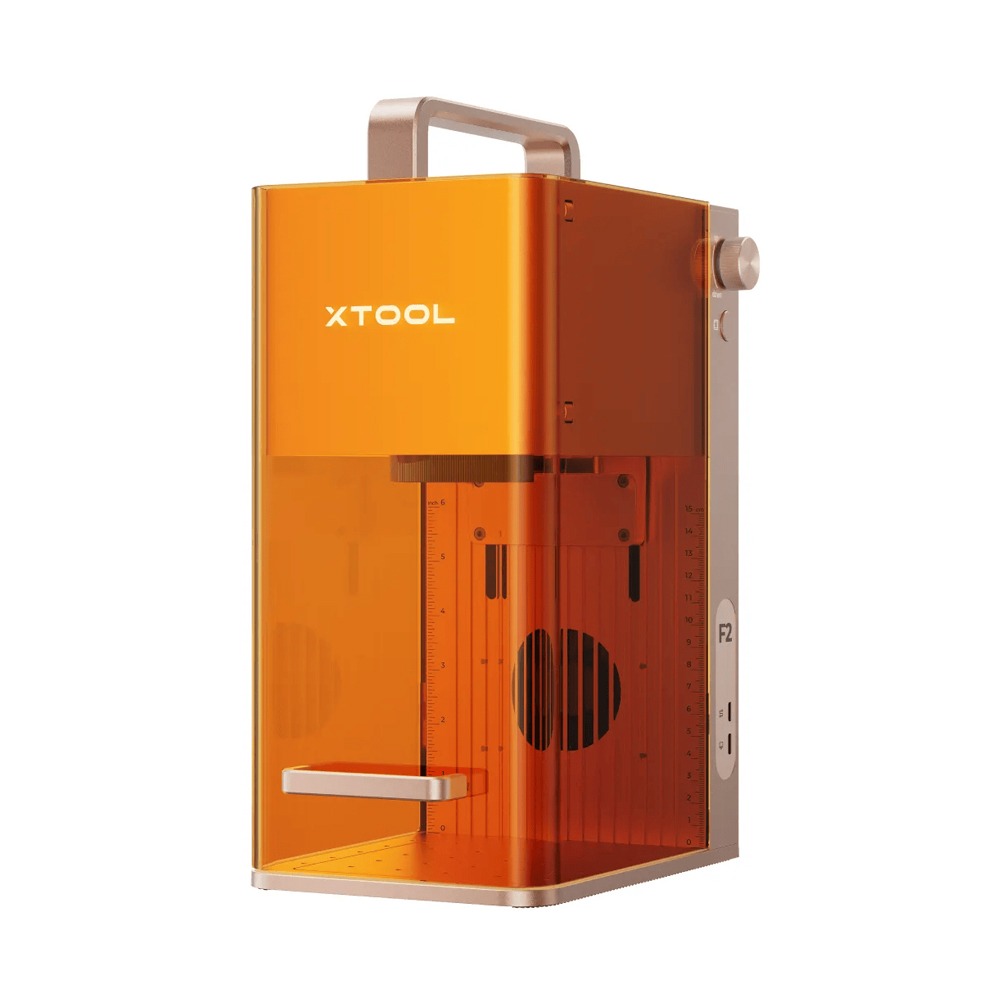

xTool F2Laser Engraver
A portable dual-laser engraver that combines a 15W blue diode laser and a 5W infrared (IR) galvo laser into one enclosed machine. It is designed for fast, high-precision engraving and cutting on a wide range of materials, including wood, acrylic, metal, and plastic.
Key Features:
Pre-Order Now
Prices shown are for the United Arab Emirates only and are excluding VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties – Please Contact Us for further details and pricing for your location.
xTool F2 Laser Engraver – 5W IR & 15W Diode Portable Dual Laser Engraver
Unlocks more in a portable — colour engraving, 3D relief, and deep black-on-metal.
Full workspace live preview with up to 0.1 mm alignment accuracy on small pieces.
Compact design with eye-protection cover — ready for on-site personalisation and small-batch runs.
Up to 6,000 mm/s marking for crisp detail and shorter cycle times.
Pre-assembled, intuitive operation, with live position preview.
F2 = 15W blue + 5W IR vs F1 = 10W blue + 2W IR
Built-in 50MP camera (F1 has none) with autofocusing, precise visual alignment, live preview, one-click auto-fill, and batch processing
Up to 6000 mm/s (F2) vs up to 4000 mm/s (F1)
Curved-surface engraving, relief engraving, batch processing, and autofocus (not available on F1)
* For most users—especially business users who want to start earning sooner and enthusiasts who value a smooth experience—F2 is the smarter choice.
| xTool F2 | |
| Processing Capacity | |
| Laser Type | 15W Diode Laser + 5W 1064nm Infrared Laser |
| Processing Mode | Laser Engraving |
| Laser Cutting | |
| Supported Materials | Laser Cuttable: |
| 15W Diode Laser: Paper, Wood, Leather, MDF, Felt, some dark opaque acrylic. | |
| Laser Engravable: | |
| 15W Diode Laser: Paper, Wood, Leather, Coated Metal, Some Dark Opaque Acrylic, etc. | |
| 5W Infrared Laser: Plastic, Gold, Silver, Platinum, Stainless Steel, etc. | |
| Working Area | 4.53″ × 4.53″(115mm × 115mm) |
| 15.75″ × 4.53″(400mm × 115mm) with Extension | |
| Max. Working Speed | 236.22 ips (6000mm/s) |
| Max. Laser Cutting Capacity (Basswood) | 0.59″ (15mm) in Multiple Pass |
| Max. Laser Cutting Capacity (Acrylic) | 0.47″ (12mm) in Multiple Pass |
| Max. Processing Height | 4.72″ (120mm) |
| Max. Rotary Engraving Diameter | 4.72″ (120mm) |
| Smart Software | |
| Supported Software | xTool Studio |
| Operating System | Windows / macOS |
| Connection Method | Wi-Fi / USB / IP |
| Supported Files | SVG/DXF/JPG/JPEG/PNG/BMP, etc. |
| Almake Compatibility | Yes |
| Easy Operation | |
| Pre-assembled | Yes |
| Built-in Camera | 50 MP Smart Camera |
| Positioning Method | Framing Positioning |
| Camera Positioning | |
| Focus Mode | Auto Focus |
| Manual Focus (Two dots alignment) | |
| Framing Mode | Rectangle Framing |
| Outline Framing | |
| Polygon Framing | |
| Preview Method | Smart Camera Preview |
| High-speed Light Live Preview | |
| Accuracy & Precision | |
| Laser Spot Size | 15W Diode Laser: 0.00315″ x 0.00236″ |
| (0.08mm x 0.06 mm) | |
| 5W Infrared Laser: 0.00118″ x 0.00118″ | |
| (0.03mm x 0.03 mm) | |
| Motion Accuracy | 0.000078″ (0.00199 mm) |
| General Information | |
| Max. Machine Input Power | 25V 6.0A 150W |
| Product Weight | 10.14lb (4.60kg) |
| Product Dimensions | 6.89″ × 9.33″ × 13.15″(175mm*237mm*334mm) |
| Safety Certification | Class 4 Laser Safety |
| Power Adapter Input Voltage | 100 V – 120 V, AC 50/60 Hz |
