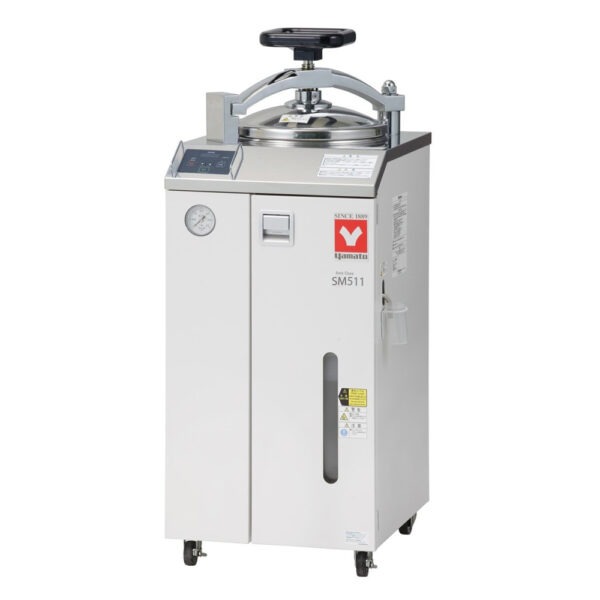

Yamato Scientific Steam Sterilizer with Dryer 47L 220V

Yamato Scientific Steam Sterilizer with Dryer 47L 220V
Yamato Scientific SM511 / Fisher 14-515-105 / VWR 75846-586  / Thomas 1171R36 / Link Gulf SM511

The Yamato Scientific Steam Sterilizer is a high-performance, fully automatic solution from start to finish, with high-pressure steam sterilization and drying steps.

Operation and functions

  • Automatic operations from sterilization to drying carried out with an interactive key input system
  • Quick sample drying capability makes samples ready to use right after sterilization
  • The drying temperature can be set according to sample material, quantity, etc.
  • Timer range from 1~999 hours
  • The drain bottle water level can be quickly confirmed on the front panel level indicator
  • The drain valve is located in the front for easy access
  • The absence of protrusions in the sterilization chamber makes the insertion & removal of baskets, and other items quick and easy
  • Self-diagnostic functions make the operation safer and error recovery quicker
  • Condensation collector neutralizes high-temperature exhaust steam safely

REQUEST A QUOTE

Prices shown are for the United Arab Emirates only and are excluding VAT @ 5% Local Rate (Unless Otherwise Stated).

Other countries may incur additional import duties – Please Contact Us for further details and pricing for your location.

Description
Specifications
Request A Quote

Yamato Scientific Steam Sterilizer with Dryer 47L 220V
Yamato Scientific SM511 / Fisher 14-515-105 / VWR 75846-586  / Thomas 1171R36 / Link Gulf SM511

The Yamato Scientific Steam Sterilizer is a high-performance, fully automatic solution from start to finish, with high-pressure steam sterilization and drying steps.

Operation and functions

  • Automatic operations from sterilization to drying carried out with an interactive key input system
  • Quick sample drying capability makes samples ready to use right after sterilization
  • The drying temperature can be set according to sample material, quantity, etc.
  • Timer range from 1~999 hours
  • The drain bottle water level can be quickly confirmed on the front panel level indicator
  • The drain valve is located in the front for easy access
  • The absence of protrusions in the sterilization chamber makes the insertion & removal of baskets, and other items quick and easy
  • Self-diagnostic functions make the operation safer and error recovery quicker
  • Condensation collector neutralizes high-temperature exhaust steam safely



Model SM201 SM211 SM301 SM311 SM501 SM511 *
System Automatic high-pressure steam sterilization
Operating
temperature		 Sterilization 105 to 123°C 105 to 128°C
Drying 150 to 180°C
Maximum pressure capacity 0.18MPa 0.2MPa
Interior Stainless steel
Heater Sterilization 1.3kW 1.7kW 2.0kW
Drying 1.0kW 1.5kW
Temp. controller PID control by microprocessor
Temp. display Digital display by green LED and setting via / keys
Timer / Timer resolution 1 min. ~ 99 hrs. and 59 min. 100~ 999 hrs. / 1 min. or 1 hr
Safety Device Self-diagnostic functions (detection sensor error, SSR short circuit, heater disconnect, faulty main relay, dry operation), safety valve, electric leakage breaker, drain bottle set-fail switch
Internal dimensions
(Dia x Depth)		 240 x 445 mm 300 x 445 mm 300 x 665 mm
External dimensions (WxDxH) 410 x 470 x 957 mm 440 x 530 x 968 mm 440 x 530 x 1088 mm
*Overall dimensions do not include protrusions
Internal capacity 20L 32L 47L
Power source
(50/60Hz single phase)		 AC115V, 13A
with plug		 AC220V, 7A
no plug,
round terminal		 AC115V,15A
no plug,
round terminal		 AC220V, .5A
no plug,
round terminal		 AC115V, 15A
no plug,
round terminal		 AC220V, 9.5A
no plug,
round terminal
*Power cable is 3 meters
Weight ~65kg /~143lbs ~80kg / ~176lbs ~85kg / ~187lbs
Accessories 2 pcs. stainless steel mesh basket (Dia.205 x D204mm), OSM-60 2 pcs. stainless steel mesh basket (Dia.262 x D204mm), OSM-70 2 pcs. stainless steel mesh basket (Dia.262 x D315mm), OSM-80
Drainboard x 1, chemical indicator strips (30 strips) x 1, drain bottle x 1, condensation collection container with magnetic bracket x 1

Performance-based on 23±5o C room temp, 65%RH±20% damper fully closed and no load.
