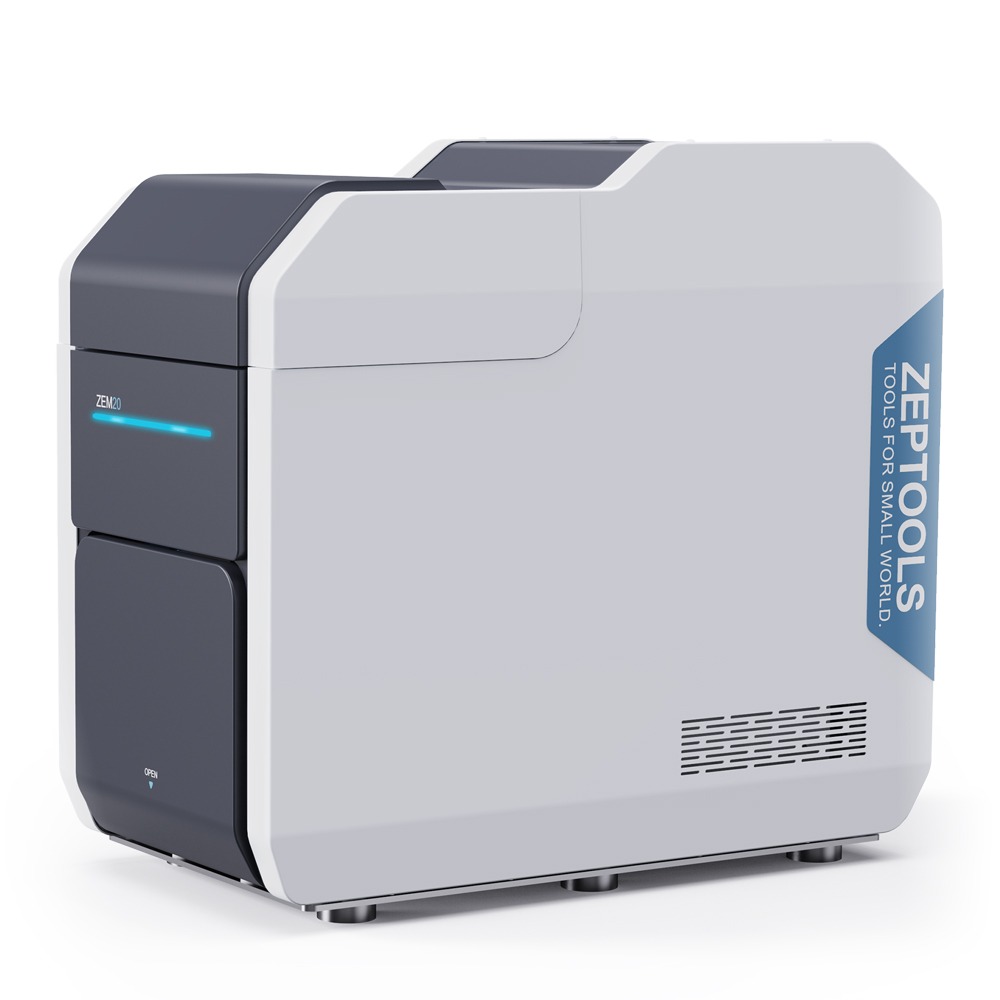

ZEPTOOLS Technology’s ZEM20 Desktop-SEM incorporate numerous innovative technologies, offering not only excellent imaging performance but also portability. This caters to a wide range of application needs. Both domestically and internationally, the ZEM series, with its high-end positioning and diverse models, has achieved advanced standards in imaging clarity, user-friendliness, and system integration.

The series is renowned for its high level of integration and flexible configuration options. The user interface is simple, easy to learn, and operate. This allows even non-expert users to quickly become proficient. Additionally, the accompanying software supports the entire workflow, from sample preparation to parameter adjustment to image analysis. Thus, it provides an integrated and efficient solution.

The ZEM20 Desktop-SEM has demonstrated strong analytical capabilities across multiple fields such as new materials, new energy, biomedicine, and semiconductors. This assists researchers in exploring the mysteries of the microscopic world. Due to its excellent cost-performance ratio, the ZEM series has become a preferred choice for many universities, research institutions, and enterprises seeking a desktop scanning electron microscope.

Product Features:

• Vacuum Separation Technology: Utilises a unique vacuum design where the electron gun and sample chamber have separate vacuums, allowing for sample change in less than 1 minute.
• Extra-Large Sample Chamber: Provides a larger sample storage space for convenient user operation.
• Ultra-High Resolution: Achieves a maximum magnification of 360,000 times with a resolution of 5nm at 20kV.
• Standard Equipped Deceleration Mode: Allows for the observation of weakly conductive samples without gold sputtering.
• In-Chamber Camera: The sample chamber is equipped with a high-definition camera for real-time monitoring of sample changes during in-situ experiments.

Expandable In-Situ SEM Accessories List:

• SEM chip heating stage
• SEM heating furnace
• SEM battery stage
• SEM liquid electrochemical stage
• SEM gas stage
• SEM tensile stage
• SEM-TEC cooling stage
• SEM liquid nitrogen cooling stage
• SEM electrical probe stage
• SEM light transmission
• SEM in-situ testing systems
