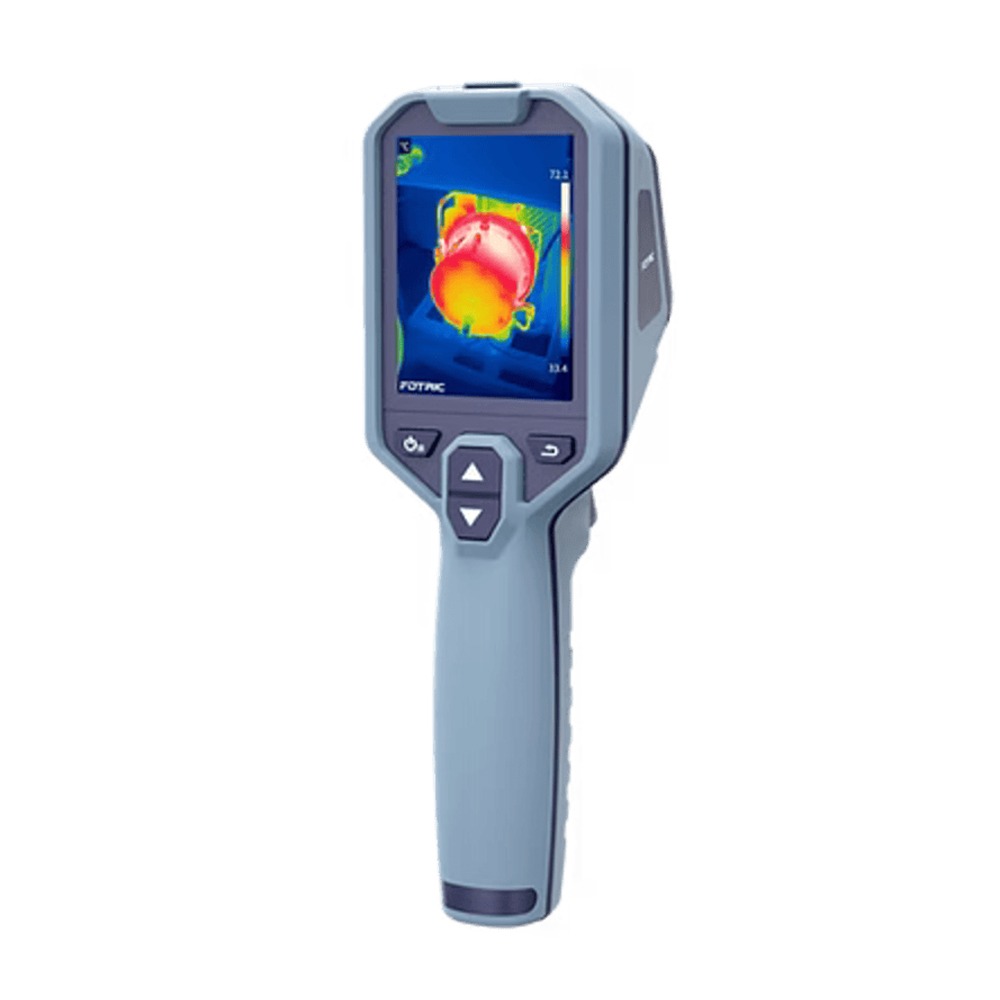

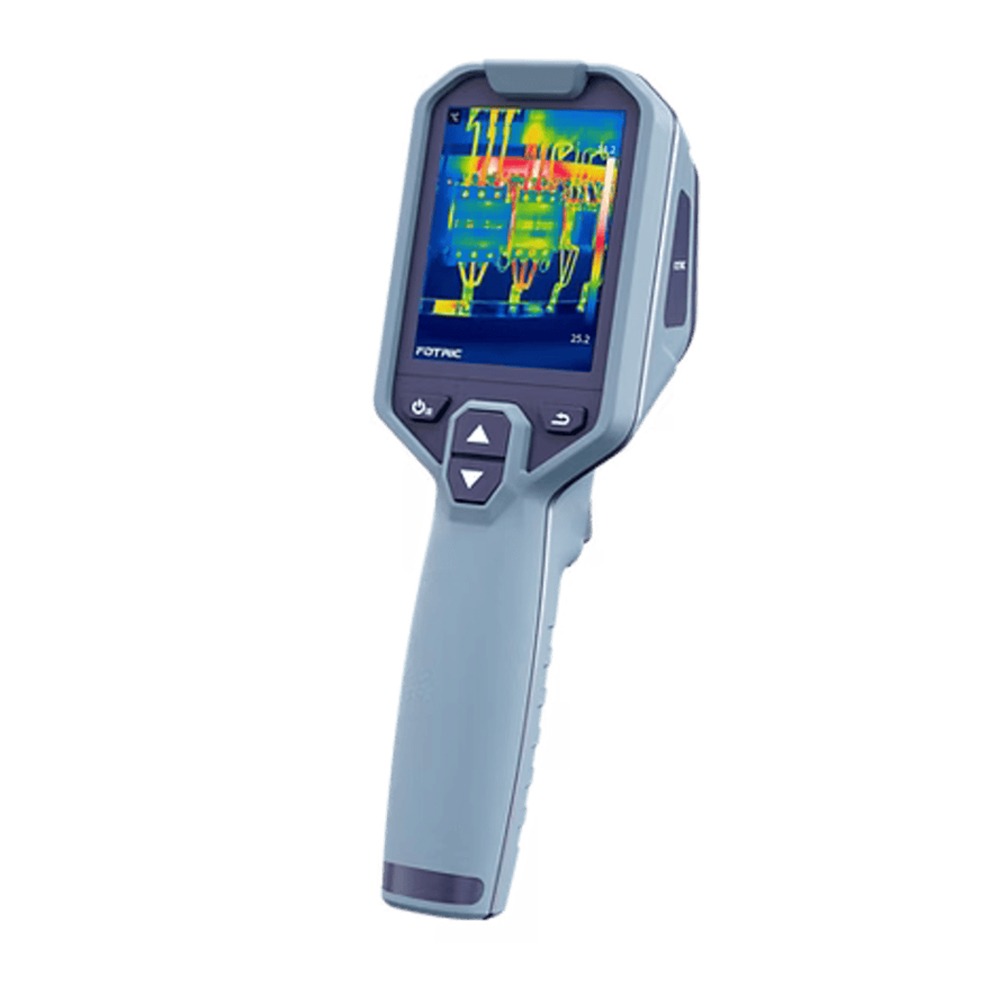

FOTRIC TF3 Thermal Imaging Camera – Portable and Easy to Use
Clearer detail presentation makes it easy to quickly identify temperature distribution and abnormal areas, presenting more delicate and sharper image quality.
Supports four display modes: infrared image, visible light temperature measurement (T-DEF®), Picture-in- Picture and visible light image to meet the observation, positioning and analysis needs in different scenarios.
Request a Quote
Prices shown are for the United Arab Emirates only and exclude VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties.
Please Contact Us for further details and pricing for your country or location.
FOTRIC TF3 Thermal Imaging Camera – Portable and Easy to Use
Clearer detail presentation makes it easy to quickly identify temperature distribution and abnormal areas, presenting more delicate and sharper image quality.
Supports four display modes: infrared image, visible light temperature measurement (T-DEF®), Picture-in- Picture and visible light image to meet the observation, positioning and analysis needs in different scenarios.
Optimise picture performance under large dynamic range, automatically tone the image based on temperature distribution, and help users see more gradients and details in complex environments.
Point and shoot, intuitive design. Made for quick start and avoid temperature measurement deviations caused by inaccurate focus.
The compact body weighs only 430g, making it easy to carry and operate with one hand. Suitable for mobile, on-site inspections and long-term use.
38° × 50° wide FOV for wider coverage, ideal for rapid inspection and short-range large-area measurement.
Thermal imaging cameras rely on passive imaging and are very safe to operate. Thermal imaging cameras are”Temperature Cameras”
Thermal imagers detect infrared energy emitted by objects and convert it into intuitive thermal images, making temperature differences visible at a glance. They quickly reveal overheating, poor connections, heat loss, and other hidden issues without physical contact.
Ideal for electrical inspection, equipment maintenance, building diagnostics, and home safety checks, thermal imagers provide full-scene temperature distribution, faster inspections, and reliable operation even in complete darkness.
| Infrared Resolution | 240 × 320 |
| Detector Type | Uncooled infrared focal plane detector |
| Thermal Sensitivity (NETD) | <30 mK @ 30℃ |
| Spectral Response Range | 8–14 μm |
| Frame Rate | 30 Hz |
| Field of View (FOV) | 38° × 50° |
| Spatial Resolution (IFOV) | 2.76 mrad |
| Focusing Mode | Focus-free |
| Temperature Range | -20 to 450℃ |
| Temperature Accuracy | ±2℃ or 2%, whichever is greater (ambient temperature 15–35℃ , target temperature >0℃ , calibrated at 1 m) |
| Analysis Software | AnalyzIR professional thermal imaging analysis software |
| Display | 3.2-inch, 640 × 480 pixels, IPS LCD display |
| Image Modes | Infrared image, visible-light temperature measurement (T-DEF®), picture-in-picture, visible light |
| Visible-light Temperature Measurement (T-DEF®) | Visible-light temperature measurement; adjustable infrared image transparency from 0% to 100% |
| Palette | Supports 4 general palettes: Rain, Iron, Grey, Rainbow |
| Digital Camera | 2 MP industrial-grade digital camera |
| Battery Type | 3.6 V, 4800 mAh rechargeable lithium battery |
| Battery Runtime | Continuous working time ≥ 6.5 hours(actual runtime depends on ambient and usage conditions) |
| Supported Languages | English, German, French, Spanish, Portuguese, Italian, Polish, Japanese, Korean, Traditional Chinese, Thai, Simplified Chinese |
