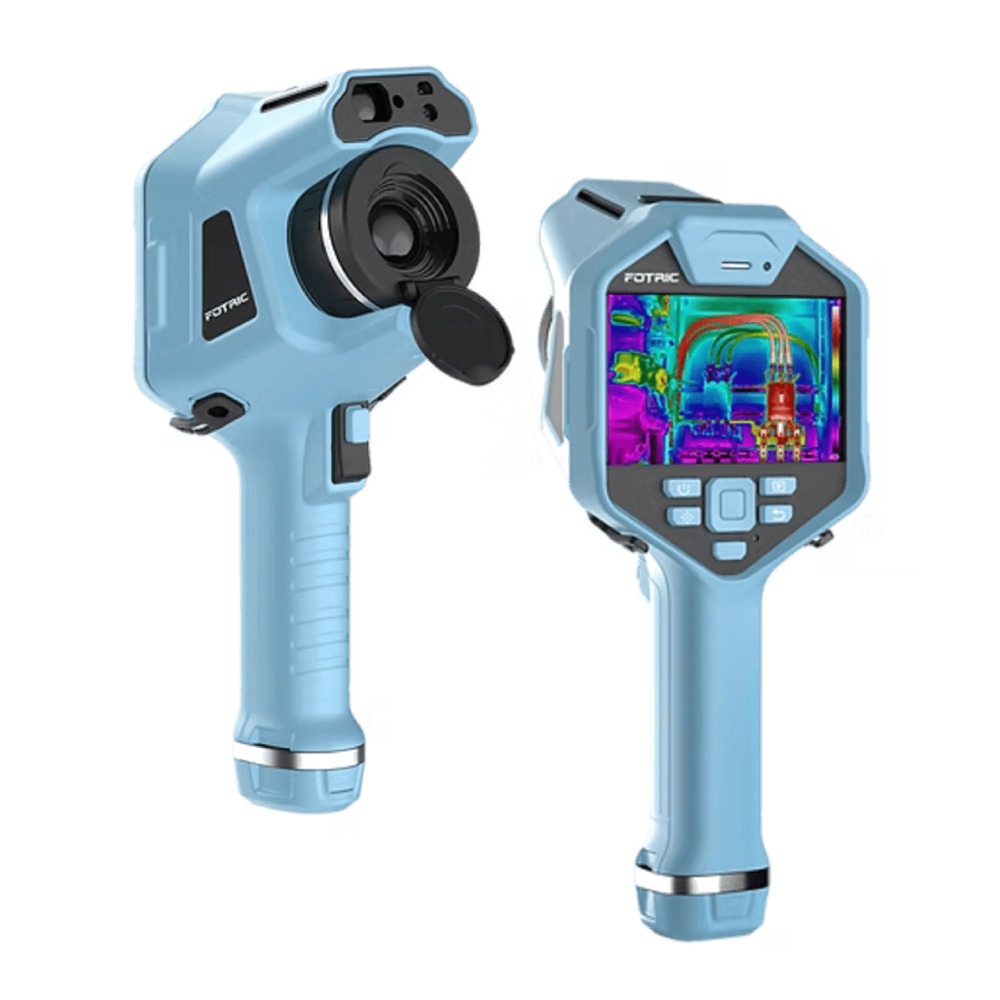

FOTRIC Ti4 Thermal Imaging Camera – Scaling Excellence
Request a Quote
Prices shown are for the United Arab Emirates only and exclude VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties.
Please Contact Us for further details and pricing for your country or location.
FOTRIC Ti4 Thermal Imaging Camera – Scaling Excellence
| Model | Ti4 |
| Thermal Imaging Parameters | |
| Infrared Resolution | 320*240 |
| IR Detector Type | Uncooled infrared focal plane detector |
| Thermal Sensitivity | (NETD) <50mK@30℃ |
| Detector Pitch | 17μm |
| Spectral Range | 8~14μm |
| Image Frame Rate | 30Hz |
| Field of View (FOV) | 44° *33° |
| Spatial Resolution (IFOV) | 2.40mrad |
| Minimum Imaging Distance | 0.1m |
| Focal Length (mm) | 8mm |
| Focus Mode | TurboFocus® system for continuous, laser-assisted, thermal contrast AF, touch AF; Manual focus |
| Lens Identification | Automatic Identification |
| Unique Features | |
| TurboFocus® | TurboFocus® Speedy Intelligent Autofocus system for continuous, laser distance, thermal contrast, and touch focus; Manual focus. |
| IREdge | Contour detail enhancement |
| T-TWB® | Temperature visual representation normalisation option |
| Temperature Analysis | |
| Temperature Range | -20~120℃ (-4~248 ℉ )，0~650℃ (32~1202 ℉ )，Intelligent range |
| Measurement Accuracy | ± 2℃ (3.6 ℉ ) or ± 2 %, whichever is greater（ambient temperature at 15~35° C(59~95 ℉ ) , target object temperature >0° C, calibration at 1 meter) |
| ROI Spot | 4 |
| ROI Line | 3 |
| ROI Area | 4 |
| Measurement Parameters | Emissivity, Partial emissivity, Reflected temperature, Ambient temperature, Humidity, Distance and IR window compensation. |
| On-device Analysis | Support |
| PC Software | AnalyzIR® |
| Image Display | |
| Display Screen | 5-inch touch screen (1280 x 720) |
| Image Mode | Thermal image, Digital Camera, Picture in Picture and High sensitivity mode (only active when the lens is identified as a gas detection lens) |
| Palettes | 10 |
| Temp Span Mode | Auto (Minimum Temp Span 3℃ (5.4 ℉ )), Manual (Minimum Temp Span 2℃ (3.6 ℉ ) ), Touch-screen(Minimum Temp Span 2℃ (3.6 ℉ ). |
| Colour Alarms (temperature alarms) | High temperature, low temperature, and interval isotherms |
| Image Overlay | Display global max, min, and average measurement parameters |
| High/Low Temperature Tracking | Yes, for both global and ROI |
| Digital Zoom | 1-6x, continuous |
| Capture Feature | |
| Digital Camera | 8MP industrial-grade camera |
| Storage Card | Micro SD card, 64G, expandable up to 1TB |
| Time-lapse Capture | Set the time interval from 2 seconds to 1 hour to save the images of corresponding modes in thermal image mode (IR image, T-DEF®, Picture-in-Picture) |
| Image Format | Radiometric thermal photo (JPEG.), non-radiometric digital camera photo |
| Gallery | Support viewing images and videos in the gallery as icons. |
| Support previewing images and videos in the gallery. | |
| Support thermal image analysis in the gallery. | |
| Support filtering and deleting images and videos in the gallery | |
| Data Connection | |
| WiFi Support | 2.4GHz & 5GHz channel, Support 802.11a/b/g/n/ac |
| Bluetooth | BT4.2 LE, Support |
| USB | USB Type-C type; USB 3.0 / 2.0 compliant |
| HDMI | Micro HDMI type, HDMI 1.4 compliant, supports 1080P imaging video streaming in 60Hz. |
| Auxiliary Features | |
| Software and Firmware Upgrade | Support OTA remote upgrade and SD card local upgrade |
| Laser | Independent key activation; Laser level: 2; Wavelength: 635nm; Power: <1mW; Laser distance: 0.1~50m, Accuracy: d*0.01%±2mm. |
| Laser-assisted Area Measurement | Support |
| LED Flash Lamp | Support torch illumination and flashlight mode |
| Power System | |
| Battery | Rechargeable Li-ion, 7.4V, 3500mAh |
| Battery Operating Time | ≥ 4 hours per battery(depends on the environment and workload) |
| Battery Charging System | Two-bay battery charger with LED display (12V, 3A) |
| Battery Charging Time | 2.5 hours to 90% full charge |
| Energy Management | User-selectable screen-off modes |
| External Power Source | Support using DC 12V to power the device |
| Reliability and Certificates | |
| Safety | EN 61010-1 |
| Electromagnetic Compatibility | EN IEC 61326-1 |
| Enclosure Rating | IP54(IEC 60529) |
| Drop | Engineered to withstand 2 meters (6.5-foot) drop with a standard lens |
| Shock | 25g (IEC 60068-2-27) |
| Vibration | 2g (IEC 60068-2-6) |
| RoHS Compliant | Compliant |
| Physical Parameters | |
| Operation Temperature | -20~50℃ (-4~122 ℉ ) |
| Storage Temperature | -40~70℃ (-40~158 ℉ ) without battery |
| Relative Humidity (Operation and Storage) | <95%RH |
| Dimensions | 313mm*123mm*139mm |
| Weight | 1.0kg (lens not included) |
| Battery Weight | 150g |
| Casing Material | Hard plastic: PC+ABS, Soft plastic: TPE, Magnesium alloy, Aluminum alloy |
| Mounting Method | Support UNC 1/4-20 interface for tripod connection |
| Warranty | |
| Warranty | 1 year |
| Recommended Calibration Interval | 2 years |
| Language | |
| Languages | English, Spanish, German, Traditional Chinese, Japanese, Korean, Italian, Portuguese, Thai, French |
| Standard Configuration | |
| Packaging | Infrared thermal imager, lens, lens cover, 2 batteries, battery charger, power adapter, USB type-C to USB interface cable, micro HDMI to HDMI interface cable, SD card, SD card reader, accessory bag (wrist strap, 2 wrist strap holders, 2 M4 * 8 screws, lanyard, Allen wrench), information bag (packing list, user manual, calibration certificate, warranty card), portable soft bag, portable hard case |
