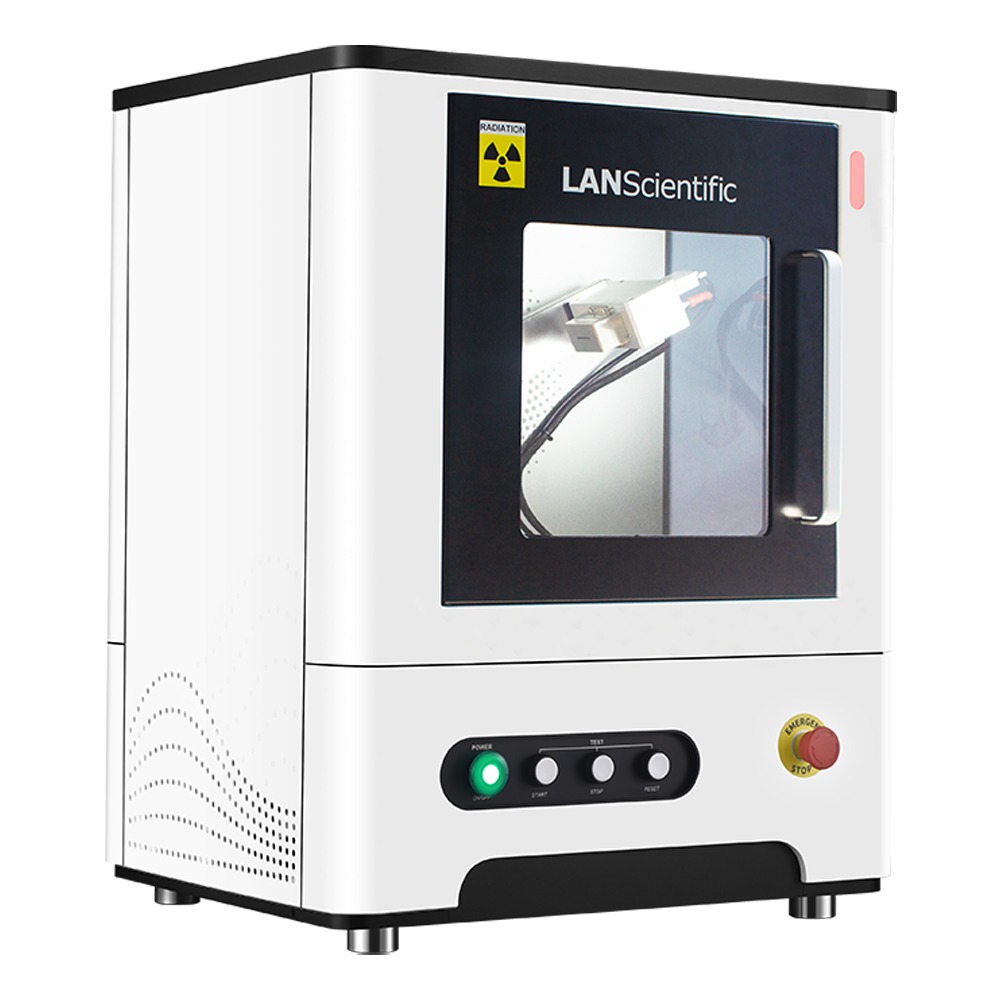

FRINGE CLASS X-Ray Diffractometer
Patented new θ-2θ coupling linkage angle measuring system, single-axis drive mechanism, concise and simple, determined to be extraordinary.
FRINGE CLASS Benchtop X-Ray diffractometer is a desktop X-Ray diffractometer. It is independently developed by LANScientific Co., LTD., and integrates XRD and XRF, as well as computer software and other technologies.
It can quickly conduct qualitative and quantitative analysis, crystal structure analysis, material structure analysis and crystallinity determination for powder, block, thin film and other forms of samples. Also, it has the characteristics of high precision, high accuracy, good stability, wide application range, simple operation, and intelligence.
For materials research, universities and research institutes, building materials, metals, minerals, plastics, pharmaceuticals, semiconductors and many other fields, it provides high-precision analysis.
Air spring large window lift door not only save desktop space,but also suitable for each desk. Moreover, it can effectively improve space utilisation rate.
FRINGE CLASS built-in water circulation cooling system, no need to add additional chiller. Software can real-time display the X-Ray tube water temperature, flow, flow rate and other information.
It has automatic cutting protection device in the test process, safety linkage lock device. Furthermore, the sample chamber is fully enclosed after closing, and the operation interface has the function of closing the sample chamber.
After obtaining diffraction data, CrystalX automatically carry out phase analysis, and give the percentage of each component of the phase. As a result, this greatly reduces the requirements of the user. You just need to click “start testing”, then leave the rest to the CrystalX software.
The integrated sora slits, without any motion-adjustable parts, increase the reliability of the goniometer system. This allows the FRINGE CLASS desktop XRD to be installed on in-vehicle laboratory platforms.
Digital multi-channel analysis technology can distinguish diffraction peak and fluorescence interference without monochromator, and improve diffraction intensity.
| FRINGE Family (Benchtop) | FRINGE CLASS |
| Goniometer | θ-2θ linkage vertical goniometer, diffractive circle radius 150mm |
| 2θ Measuring range | -3° – +150° |
| Precision | The deviation of ＜±0.02° in the full spectrum |
| FWHM | <0.04°2θ |
| Sola slit | The integrated Sora Slits, without any motion-adjustable parts, increase the reliability of the goniometer system, allowing the FRINGE desktop XRD to be installed on in-vehicle laboratory platforms |
| X-Ray Tube | Cermet X-Ray tube, with maximum power of 2.2KW, focus:(1×10 )mm2, default configuration cu target, optional Co, Cr, Mo target |
| High voltage generator power | The maximum output power of the high voltage generator is 600W |
| Size | 580mm x 450mm x 680mm(L×W×H) |
| Weight | About 120 KG (depending on the actual configuration) |
| Power supply | 220V±10V, 50Hz |
| Heat dissipation | FRINGE CLASS has a built-in water circulation cooling system, no need to add additional chillers. The software can display the water temperature, flow rate and other information in the X-Ray tube in real time |
| Detector | DPPC detector |
| Interface | The compact home wall plug provides power, and the USB interface connects to the PC for controlling the XRD |
| Air source | A 2-way air supply interface is available for in-situ analysis or atmosphere protection |
| Security | The FRINGE CLASS has an air spring large window lift door, which can observe the in-situ analysis process without dead angle, and can effectively shield X-Rays. It has a protection and safety interlock device that automatically cuts off during the test process. The operation interface has the function of closing the sample compartment |
| Cloud service capabilities | FRINGE CLASS uses a synchronisable mobile APP service to support card management of diffraction data and access to knowledge management systems |
| CrystalX software | LANScientific has developed a special crystal analysis software CrystalX for FRINGE CLASS. After obtaining diffraction data, CrystalX automatically conduct phase analysis, and give the percentage of each component of the phase, greatly reducing the requirements of the user, no manual retrieval, no need to buckle the background, no need to smooth, no need to manually peak, just need to click “start testing”, the rest to the CrystalX software |
