Boost efficiency and elevate production quality with Virtek’s automated IRIS Ai Panel Inspection System. Our state-of-the-art modular software solution delivers real-time alerts for nail positioning and shiner identification.
Request a Quote
Prices shown are for the United Arab Emirates only and exclude VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties.
Please Contact Us for further details and pricing for your country or location.

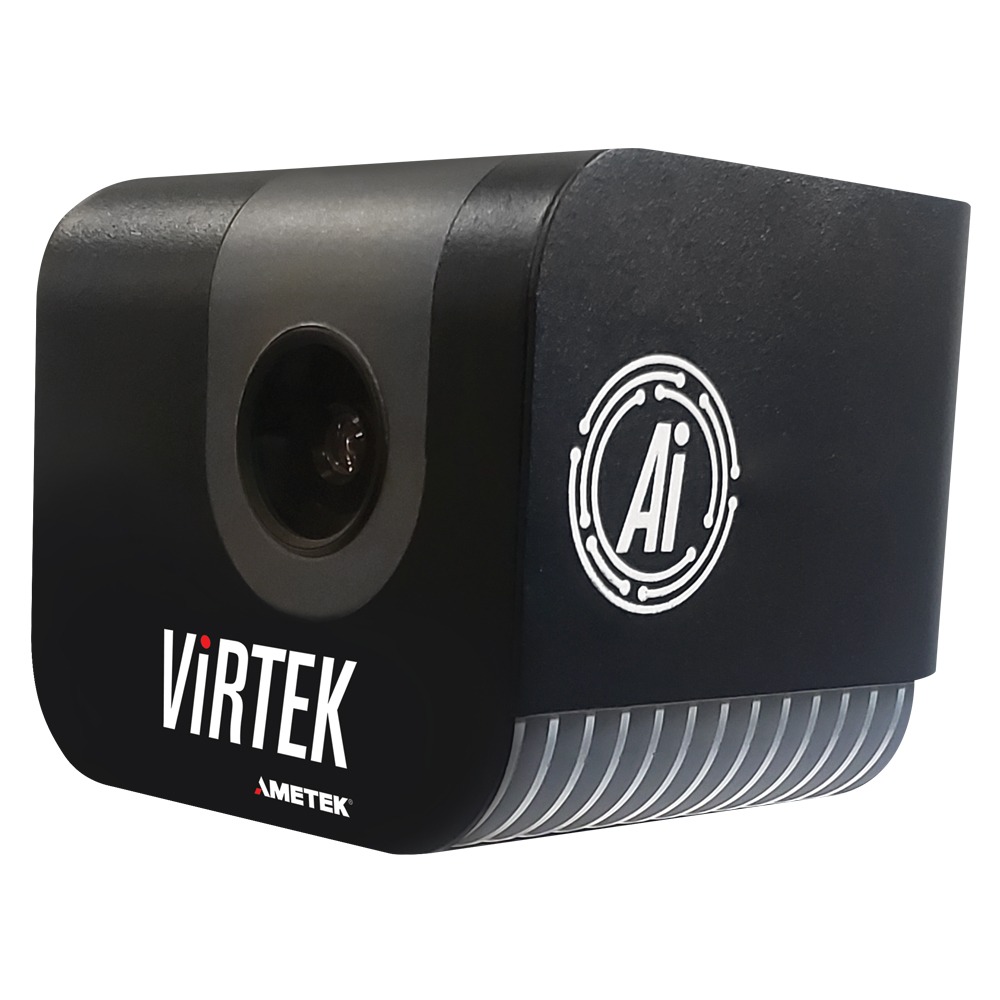

Virtek Iris AI Camera
Take Inspection to The Next Level. Laser Projection combined with AI-Powered Precision: Faster, Accurate Inspections.
Boost efficiency and elevate production quality with Virtek’s automated IRIS Ai Panel Inspection System. Our state-of-the-art modular software solution delivers real-time alerts for nail positioning and shiner identification.
Our advanced system ensures real-time inspection for flawless production. By automating the inspection process, you have more time to focus on growing your business.
It’s time to automate your inspection process with these simple steps:
Framing – Sheathing – Inspection (Repair) Inspection – Delivery
| Technical | Iris Ai Camera | |
| Camera | 12MP | Weight: 1.4 kg (3lbs) | |
| Power | <0.5 Amps, 12V AC/DC | |
| Environment | Operating temperature: 5°C to 40°C (41°F to 104°F) | |
| Technical | Vision Projection System (VPS) | |
| Projection Distance | Standard Range: 6’ – 20’ / 2m – 6m | |
| Environment | IP54 available * | |
| Operating Temperature: 0°C to 45°C, 32° to 113°F | ||
| Technical | IRIS Ai Panel Inspection | |
| Dimension | Minimum | Maximum |
| Panel Thickness | 3.5” | 12” |
| Panel Height (frame + top overhang) | 6’ | 12.125’ |
| Panel Length | 30” | 22’ |
| Overhang | No sheet up to 20” from the leading edge | 12” on Sensor side | 24” on remaining sides |
| Nail Head Diameter | 0.24” | 0.31” |
| Shiner Length | 0.5” | 3.2” |
| Inspection accuracy | 99.00% | 99.80% |
| Laser Projection Accuracy | 1” | 0.001” |
| Inspection Speed | – | (1 ft/s) |
| *Virtek Iris Ai Camera System can be used in combination with Virtek’s Laser Projection System or as a standalone. | ||
