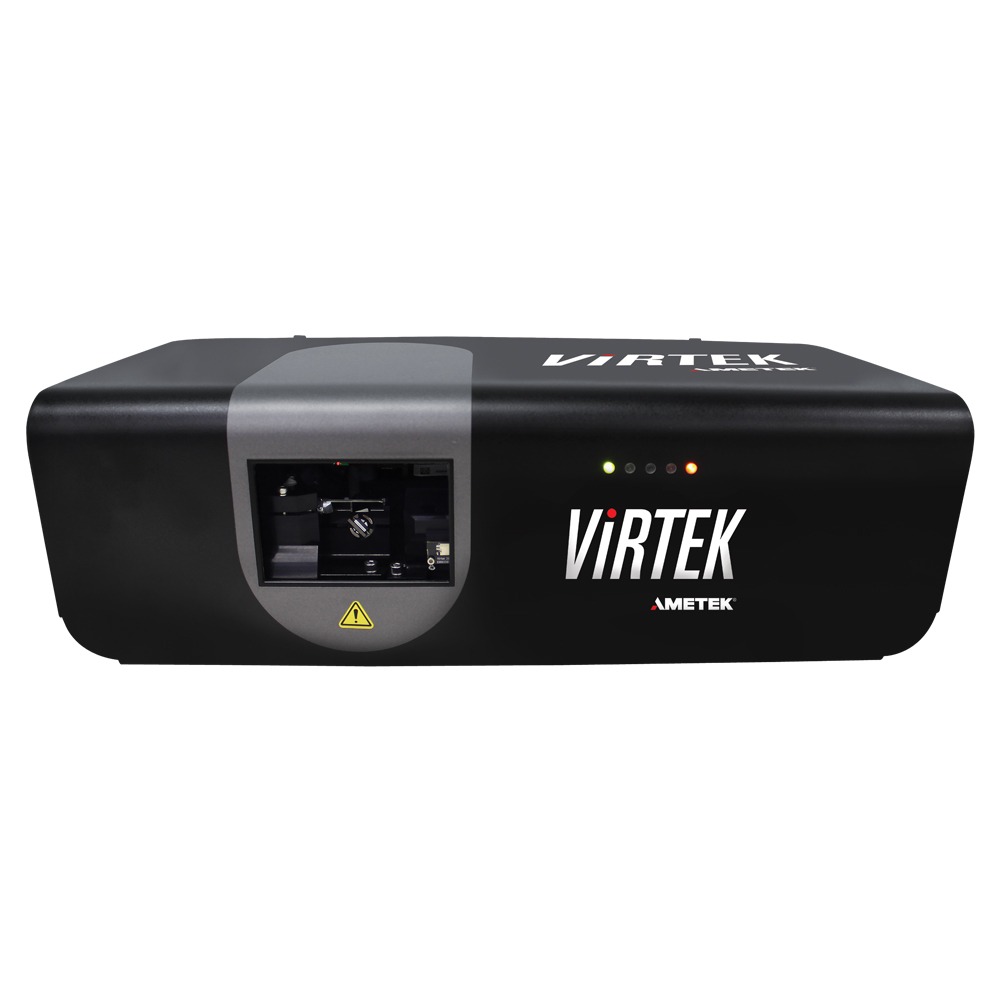

Virtek LPS-10 Laser Projection System

Accurately projects a virtual laser template to guide operators through the assembly process of flat 2D parts. Eliminates the need for blueprints and measuring tape. Even the most complicated designs can be built in minutes.

• Ideally suited to Pre-Fab Construction and Industrial Fabrication.
• Comes with Virtek LTG Software for 2D applications.
• Laser Projection for Assembly Manufacturing of Hand Rails, Wall Panels, Floor Decks and Steel Panels.

Optimise throughput

With the Virtek LTG system, there’s no need to refer to blueprints or use a measuring tape. Even the most complicated wall or floor panel can be built quickly and effectively. This can reduce setup time by up to 70 per cent.

Visualise the finished product – LTG

Project the location of studs, headers, sheathing, nailing pattern, subcomponents, openings, and inserts with accuracy of ±1.6mm (1/16 inch). Workers see how to assemble panels before they begin. The result is higher throughput and improved quality.

Improve communication

Interface with leading panel design software programs and AutoCAD® software. With the Virtek LTG system, engineering changes between design and manufacturing are easily communicated.

AutoCAD® is a registered trademark of Autodesk, Inc.

Software

The LTG interface maximises your existing design software investment. The software streamlines the assembly of panels and steel manufacturing by guiding workers through the assembly process.

Compatible with all leading CAD software programs.

Systems: Instantly adjust template designs or revision changes directly on the shop floor. Designed to require very little customer maintenance.

Service: Our global service organisation helps ensure that your Virtek systems are always optimised for maximum performance.

Stands: We can help build the right stand configuration for your operations. We offer Virtek mobile workstations, motorised mounts, wireless carts, and more.

High Visibility LPS-10 Laser Projection System

Operators will reap the benefits from a brighter, safer laser that delivers increased visibility even in the brightest work environments.

Laser Template Generator for Layout and Assembly Manufacturing

Virtek’s Laser Template Generator™ (LTG) system helps eliminate the need to pull a tape measure and reduce the layout time by 70%. With Virtek LTG™, customers are maximising profits and efficiency using the advanced technology of Virtek. The Virtek LTG system projects a laser outline of your CAD file to scale, showing operators the exact location of all important features in your assembly

With Greater Laser-Line Visibility for the Industrial Market

Virtek LTG makes the layout process of handrail, stair stringers, and steel truss so easy that even less experienced workers can become productive immediately.

The system projects a laser template from the latest CAD file to be built, directly onto the work surface. This highlights the position and shape of all important parts. There’s no need to refer to blueprints or the use of a measuring tape. Complicated designs built in minutes!

The LTG interface maximises your existing design software investment. The software streamlines assembly by guiding workers through the layout process.

Higher throughput with Virtek LTG Software

• Reduces layout and changeover time by up to 70%, and increases productivity by up to 25%.
• Works great for one-of-a-kind parts.
• Images are projected onto the workspace instantly.
• Increased manufacturing capacity and efficiency, and lower per-unit costs.
• Training is easy and requires a less-skilled workforce.
• Instantly adjust template designs or revision changes directly on the shop floor.
• Designed to require very little customer maintenance.
• The LTG software helps streamline the process in seconds.
• Easy-to-use software allows workers to select jobs and layers to project on the table.
• Virtek LTG software is compatible with all leading CAD software programs.

Benefits of LTG

• Reduce layout time by up to 70%, which will provide up to 25% overall throughput!
• 100% validation, to ensure that as designed is as built.
• Virtek has over 15,000 projectors in use today in over 600 manufacturing facilities.
• Virtually eliminate operator errors that result in rework.
• Ensure accuracy and quality with guided placement of webs for steel truss and joists.
• Eliminate the need for measuring, squaring, and stringing.
• Guided assembly makes a new employee instantly productive by providing comprehensive training as they build.
• Instantly identify incorrectly cut or picked components.
