The FJD Trion N10 CORS System
A 24/7 high-precision GNSS reference receiver built for continuous operation. It delivers centimetre-level (2–5 cm) correction data services for surveying, precision agriculture, and machine navigation.
Request a Quote
Prices shown are for the United Arab Emirates only and exclude VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties.
Please Contact Us for further details and pricing for your country or location.
The FJD Trion N10 CORS System
A 24/7 high-precision GNSS reference receiver built for continuous operation. It delivers centimetre-level (2–5 cm) correction data services for surveying, precision agriculture, and machine navigation.

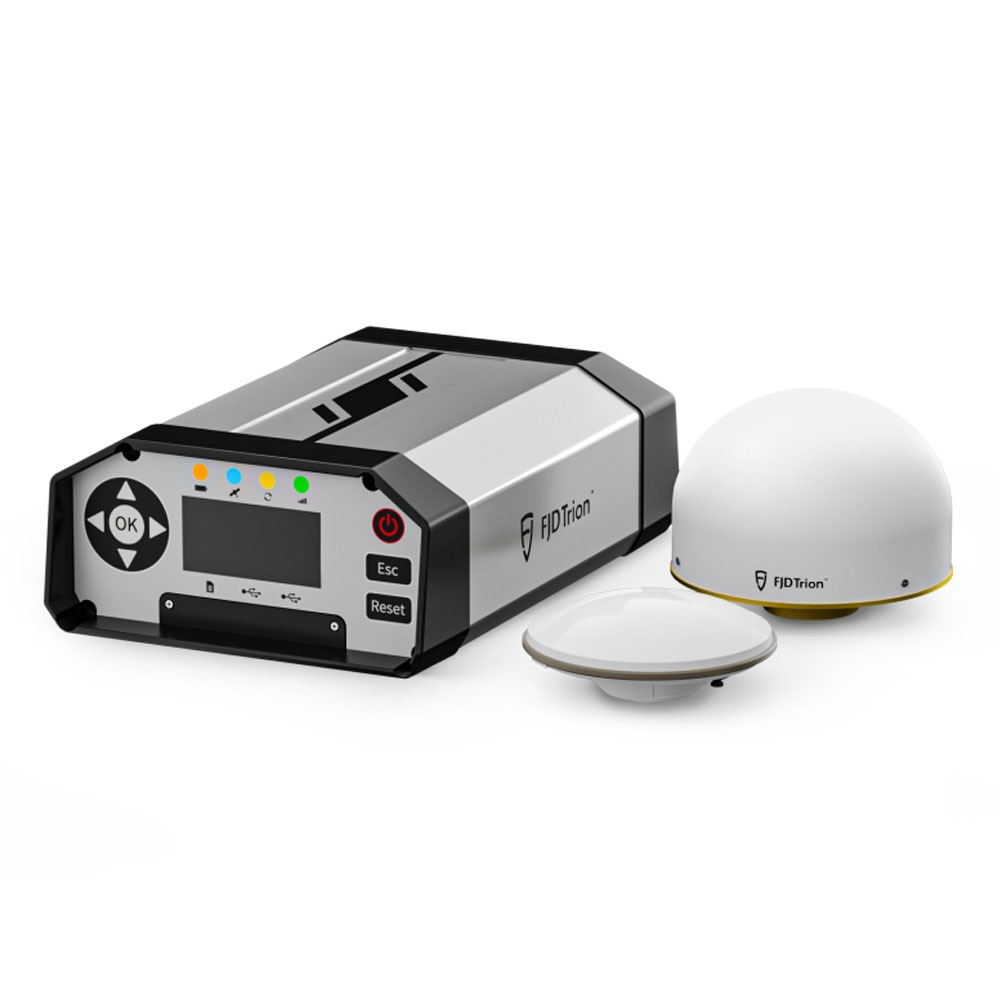

The FJD Trion N10 CORS System provides 24/7 correction data services for numerous users. The GNSS receiver N10 has strong anti-interference ability and supports all satellite constellations, including GPS, GLONASS, Galileo, Beidou, and QZSS.
An internal battery ensures continuous operation during power loss. Meanwhile, the FJD Location Basic Service platform allows for convenient management of base stations and users. RTCM data is available for terminal users via the internet.
FJD CORS system provides reliable high-precision location services for survey and navigation users.
| Performance parameters | |
| Signal | BDS: B1I/B2I/B3I/B1c/B2a/B2b |
| Galileo: E1/E5a/E5b/E6 | |
| GPS: L1/L2/L5 | |
| QZSS: L1/L2/L5/L6 | |
| Glonass: L1/L2 | |
| Single point position(RMS) | Horizontal：1.5m |
| Vertical：2.5m | |
| DGPS(RMS) | Horizontal：0.4m |
| Vertical：0.8m | |
| RTK(RMS) | Horizontal：0.8cm + 1ppm |
| Vertical：1.5cm + 1ppm | |
| First positioning time | Cold boot：< 20s |
| Hot boot：< 10s | |
| Re-acquisition | < 1s |
| Differential data | RTCM 2.x / 3.x |
| Network protocol | NTRIP/TCP |
| Environmental parameters | |
| Operating temperature | -40℃～+65℃ |
| Storage temperature | -40℃～+80℃ |
| Humidity | 95% ± 4 |
| Electrical characteristic | AC: 90—260V |
| Input voltage | DC: 9—36V |
| Power consumption(Standard) | 5W |
