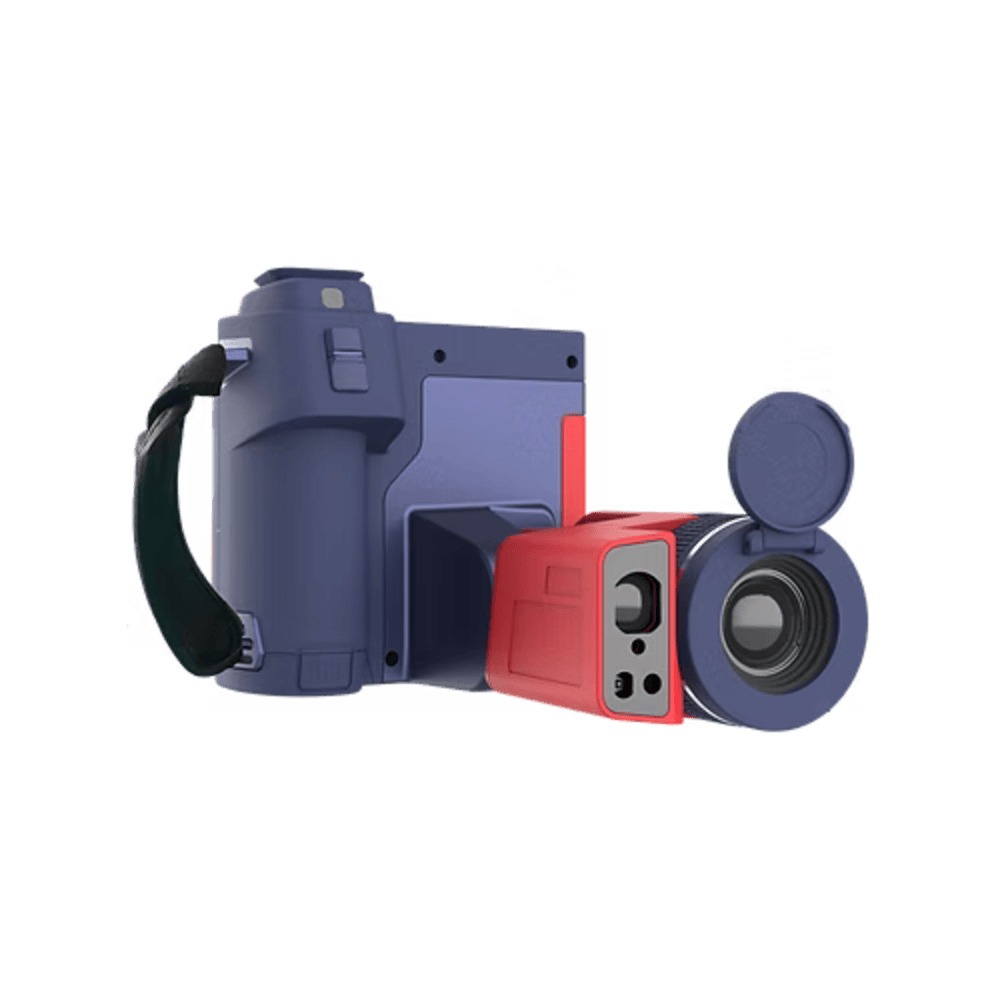

Fotric P5 High-performance Thermal Camera
Compatible with advanced software such as AnalyzIR® and NaviPdM®, revolutionising how inspections utilise thermal cameras.
Maximise your inspection work with P-series thermal imaging cameras today!
Request a Quote
Prices shown are for the United Arab Emirates only and exclude VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties.
Please Contact Us for further details and pricing for your country or location.
Fotric P5 High-performance Thermal Camera
The P5 industrial thermal imaging camera delivers a maximum thermal resolution of 384*288, superior image quality, and precision for inspection work.
With the optional dual-view lens, you eliminate the need to carry lenses, saving time and space.
P-series cameras boast top-class performance with sensitivities of <30mk.
They also feature on-device analysis and laser area measurement capabilities.
These cameras are compatible with advanced software such as AnalyzIR® and NaviPdM®, revolutionising how you utilise thermal imaging cameras in inspections.
Maximise your inspection work with P-series thermal imaging cameras today!
| Infrared resolution |
384*288
|
| Detector type | Uncooled infrared focal plane detector |
| Thermo sensitivity (NETD) | 30mk (0.03°C) |
| frame rate | 30Hz |
| Optional lenses | Refer to the “Lens” sheet in the catalog. |
| Focus mode | TurboFocus™ Speedy Intelligent Autofocus System: Continuous, Laser Distance, Graphic Contrast, Manual |
| Digital zoom | 1-12x |
| Main Features | NaviPdM® (Optional) T-DEF® IREdge T-TWB® |
| Measurement range | -20℃ to 120℃ (-4° F to 248° F), 0℃ to 700℃ (32° F to 1292° F), 300℃ to 1550℃ (572° F to 2822° F) (Not applicable to dual-view lenses or macro lenses) |
| accuracy |
± 2℃ or ± 2% (whichever is greater)
(When the environmental temperature is 25℃)
|
| User-defined measurement tools (on the device) |
20 spot markers (rectangle or circle) 20 measurement lines |
| screen analysis | Emissivity, partial emissivity, reflectance temperature, ambient temperature, humidity, distance, IR window correction. |
| software |
AnalyzIR®, NaviPdM®
|
| Image mode | Thermo/Digital/Picture-in-Picture/T-DEF® |
| palette | 16 Standard Palettes: Gray, Iron 10, Iron, Rainbow, Gray 10, Gray Red, Mid Gray, Yellow, Rain, Rain 10, Blue, Glow Bow, Medical, Medical 10, Mid Green, Prism. 16 Reversible Palettes . |
| Maximum/Minimum Temperature Spot Marker | Yes, both the full screen and the measurement box have maximum/minimum temperature spot markers. |
| digital camera | 5 million pixels and 13 million pixels |
| storage capacity | Supports 64GB SD card memory, expandable up to 2TB. |
| Scanning function | QR code and barcode support |
| annotation | Voice/Text/Bookmarks/Favorites Support |
| Gallery | Image preview and analysis, video preview and analysis |
| Data connection | WiFi connection, Bluetooth connection, USB interface, HDMI interface , FTP data transfer |
| Laser measurement | Distance, length, area |
| LED lights (torches and flashlights) | support |
| Battery type | 3.6V, 10000mAh Lithium |
| Battery life | Two rechargeable batteries, providing more than 4 hours of use per battery. |
| Enclosure rating | IP54 |
| guarantee | 2-year (standard) warranty, extended warranty available, core detector 10-year warranty. |
| Supported Languages |
English, Spanish, German, Italian, Korean, Portuguese, Traditional Chinese
|
