FOTRIC 220-Link Thermal Imaging Camera
Options
223Link丨226Link丨228Link
Features
FOTRIC R&D thermal cameras are the preferred choice of professors and scientists from 500+ universities and research institutes worldwide, utilized in research experiments and featured in publications in top SCI journals.
FOTRIC R&D’s excellent hardware configuration, combined with extraordinary imaging algorithms, results in superior product performance.

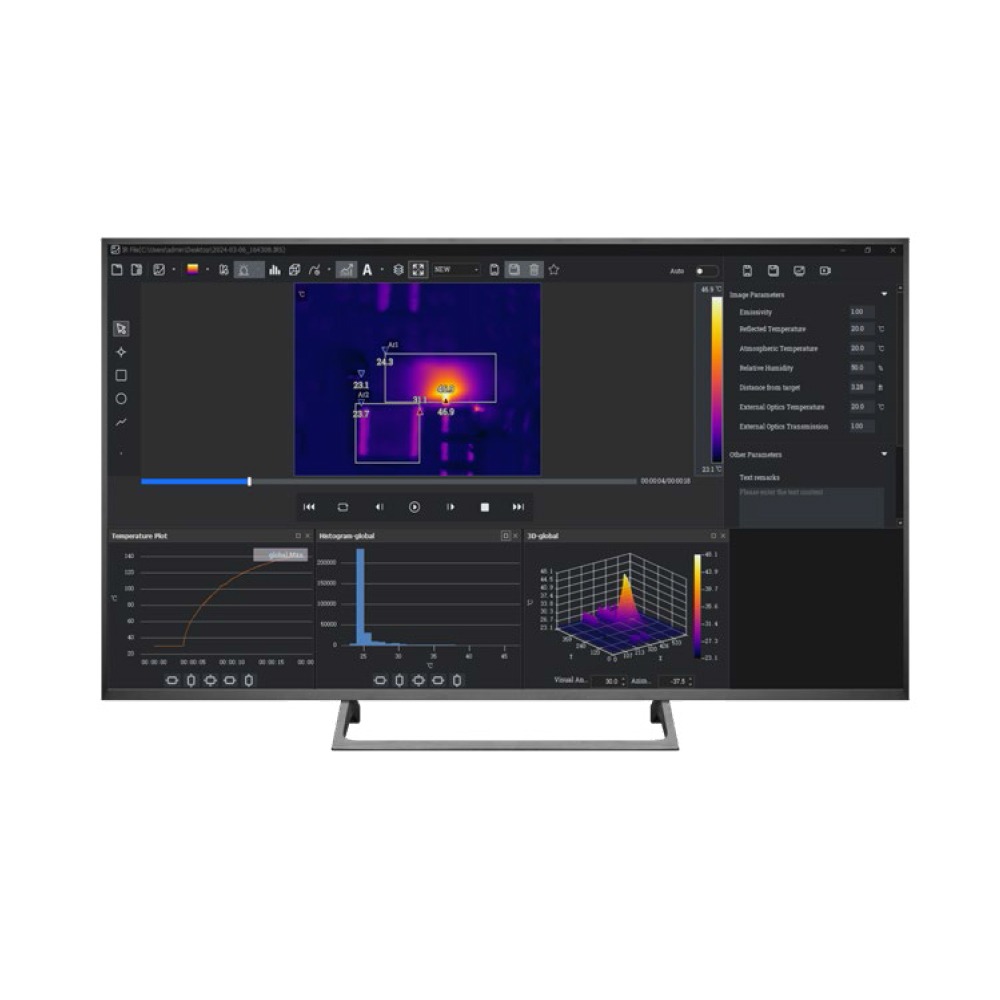

FOTRIC AnalyzIR is a professional thermal analysis software that matches the FOTRIC R&D Thermal Camera. The software allows the user to view temperature changes, overall distribution and other information, and to adjust the camera configuration.
|
IR Resolution |
640*480
|
|
Standard lense |
29°*22°
|
|
Minimum focus distance |
0.1m
|
|

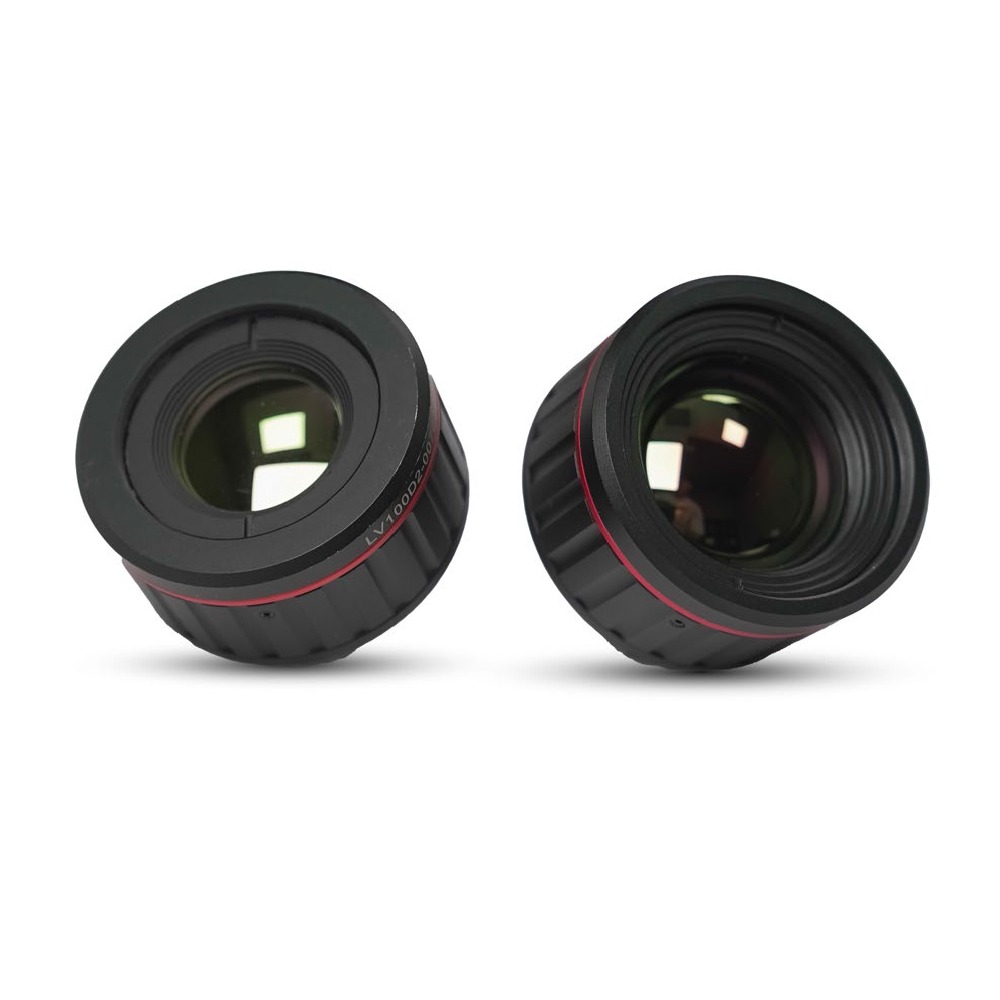

Macro Lenses |
M20 &M50 (Image Pixel Size: 20μm & 50μm)
|
|
Thermal Sensitivity（NETD) |
30mk@30° C(86 ℉ )
|
|
Temperature Measurement Range |
-20℃ ~120℃, (-4 ℉ ~248 ℉ ), 0℃ ~650℃ (32 ℉ ~1202 ℉ )
|
|
User-definable Markers |
5 spot markers; 10 (rectangle or circle); 10 measurement lines
|
|
Accuracy |
± 2℃ (3.6 ℉ ) or ± 2 %, whichever is greater (ambient temp at 25℃ (77 ℉ ))
|
|
Support Radiometric Stream |
25Hz radiometric stream
|
|
Palettes |
9 standard palettes and 9 inverted palettes
|
|
Focus Type |
Manual Focus
|
|
Enclosure Rating |
IP40
|
|
Weight |
490g（without lens or base）
|
