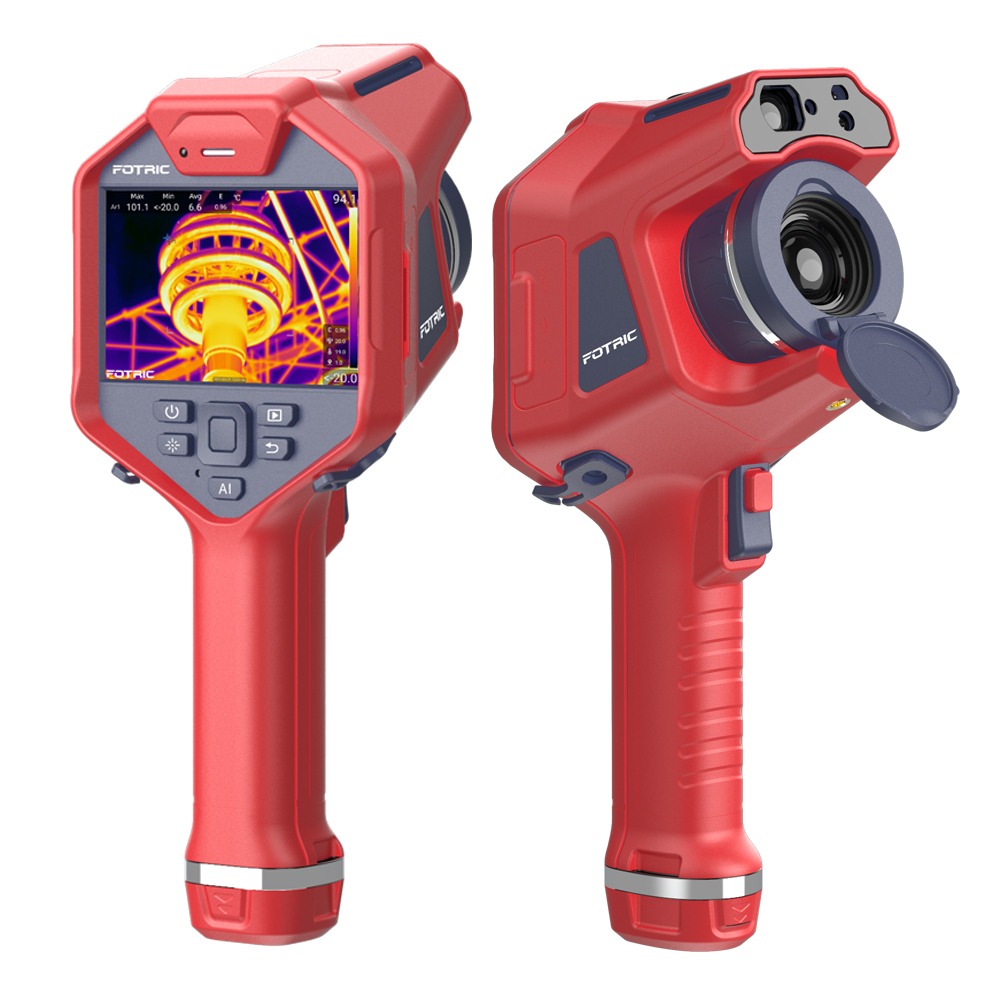

FOTRIC V7-Pro Thermal Imaging Camera
The FOTRIC V7 is a professional thermal camera, designed to improve maintenance efficiency in the electric, oil and gas, and manufacturing industries.
Other advanced features like laser-assisted autofocus, interchangeable lens options, and powerful AnalyzIR report software, all boost operational performance, making it an ideal tool for site inspections.
Request a Quote
Prices shown are for the United Arab Emirates only and exclude VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties.
Please Contact Us for further details and pricing for your country or location.
FOTRIC V7-Pro Thermal Imaging Camera
The FOTRIC V7 is a professional thermal camera, designed to improve maintenance efficiency in the electric, oil and gas, and manufacturing industries.
Other advanced features include laser-assisted autofocus and interchangeable lens options. Moreover, powerful AnalyzIR report software boosts operational performance, making it an ideal tool for site inspections.
| Infrared Resolution | 640*480 |
| Thermal Sensitivity (NETD) |
30mk(0.03° C)@30° C
|
| Temperature Measurement Range |
-20 ° C ~ 120° C,
0 ° C ~ 650° C,
300-1550° C
|
| User-definable Markers | 16 spot markers; 8 (rectangle or circle); 2 measurement lines |
| Focus Mode |
TurboFocus® system for continuous, laser-assisted, thermal contrast AF; Manual focus
|
| Field of View (FOV）- Standard Lens |
Standard 25° x 19°
|
| Interchangable Lens Options | Wide-angle 44° x 34°,
Telephoto 12° x 9°, Ultra Telephoto 7° ×5° |
|
Unique Features
|
NaviPdM®, T-DEF®, IREdge, T-TWB®
|
| Frame Rate | 30Hz |
|
Accuracy
|
± 2℃ or ± 2 %, whichever is greater, (ambient temp at 25℃ )
|
|
Storage Card
|
Micro SD card, 128G, expandable up to 1TB
|
|
Video Recording
|
Radiometric thermal video(IRS.) and MP4 video recording (non-radiometric).
|
|
On-device Analysis
|
Support (Radiometric Image and Video Data)
|
|
QR Code Functionality
|
Support QR code and Barcode scanning
|
|
Annotation
|
Support Voice\Text\Tag\Favorite
|
|
Digital Camera
|
13MP industrial grade camera
|
| Palettes |
16 standard palettes: Grey, Iron10, Iron, Rainbow, Grey10, GreyRed, MidGrey, Yellow, Rain, Rain10, Blue, GlowBow, Medical, Medical10, MidGreen, Prism.
|
| File Formats |
Radiometric thermal photo (JPEG.), thermal video (IRS.) and non-radiometric digital camera photo, MP4 video
|
|
Remote Display
|
Support Radiometric IR Video Streaming over type-C 3.0 interface; non-radiometric IR video streaming over HDMI interface and IRExplorer ™
|
| Remote Control Operations |
Support (through AnalyzIR® and IRExplorer ™ )
|
| Battery |
Rechargeable Li-ion, 7.4V, 3500mAh
|
|
Battery Operating Time
|
≥ 4 hours per battery
|
|
Operation Temperature
|
-20° C to 50° C
|
|
Weight (include battery)
|
＜ 1.0kg (lens not included)
|
| Drop |
Engineered to withstand 2 meters (6.5 feet) drop with standard lens
|
| Enclosure Rating |
IP54, IEC60529:2013
|
| Recommended Calibration Cycle | 2 years |
