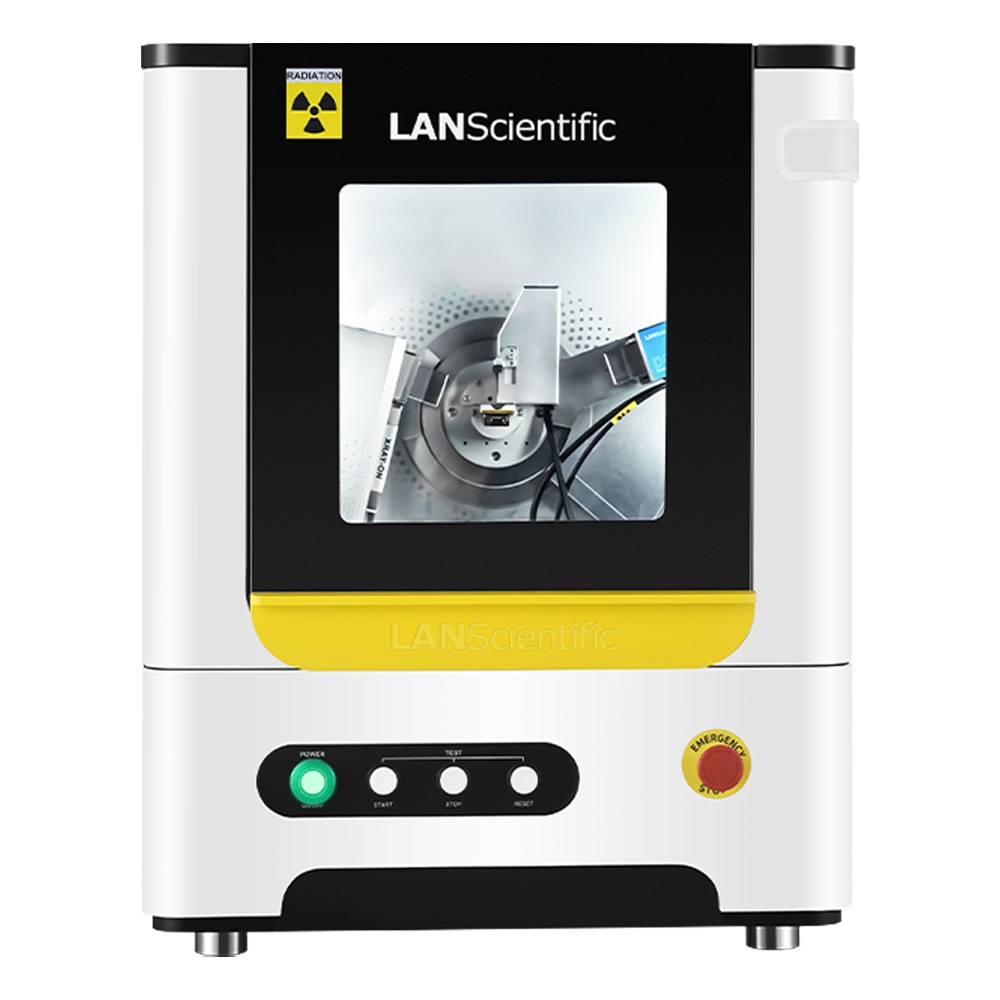

FRINGE D200 X-Ray Diffractometer
The FRINGE D200 desktop X-ray diffractometer combines advanced X-ray diffraction technology with cutting-edge software. As a result, it offers users rapid, precise, and reliable material analysis solutions.
The FRINGE D200 utilises a high-precision θ-θ vertical goniometer and an Xeye2D detector. This ensures high resolution and accuracy in handling a wide range of samples, including powders, lumps, and thin films.
The built-in software, CrystalX, enables one-button operation and automated data analysis. Therefore, it simplifies the experimental process and improves work efficiency.
Request a Quote
Prices shown are for the United Arab Emirates only and exclude VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties.
Please Contact Us for further details and pricing for your country or location.
FRINGE D200 X-Ray Diffractometer
The FRINGE D200 desktop X-ray diffractometer combines advanced X-ray diffraction technology with cutting-edge software. As a result, it offers users rapid, precise, and reliable material analysis solutions.
The FRINGE D200 utilises a high-precision θ-θ vertical goniometer and an Xeye2D detector. This ensures high resolution and accuracy in handling a wide range of samples, including powders, lumps, and thin films.
The built-in software, CrystalX, enables one-button operation and automated data analysis. Therefore, it simplifies the experimental process and improves work efficiency.
Its compact design, combined with a gas spring lift door, saves space and is easy to operate. Additionally, with excellent safety performance and multiple protection mechanisms, it ensures the safety of operators.
The FRINGE D200 is suitable for material science, geological exploration, drug discovery, and various other fields. It assists researchers in rapidly obtaining information about the microstructure of materials, promoting scientific innovation and industrial development. Whether for academic research or industrial applications, the FRINGE D200 is your reliable and ideal partner.
Equipped with the Xeye2D detector, it can seamlessly switch between zero-dimensional, one-dimensional, and two-dimensional modes. In addition, it exhibits extremely high diffraction intensity. In 2D mode, it can also simultaneously observe the Debye ring. This offers a more comprehensive view of the growth within the crystal.
FRINGE D200 has a strong KW power level that makes it to be the leader in the desktop XRD field.
With integrated design, compact size and built-in water circulation cooling system, it is good for space saving, easy to move and to place. Furthermore, it can be easily integrated into various laboratory environments.
After obtaining the diffraction data, CrystalX can automatically analyse the phase and give a percentage of each component of the phase. Consequently, this greatly reduces the need for the user just to click on “Start Test”, making it easy to use.
The instrument is suitable for multiple accessories, such as high-temperature stage, low-temperature stage, humidity controller, etc. Functions can also be customized according to user requirements to meet the demands for analysis of samples in special environments.
The unit is equipped with an automatic cut-off protection device and a safety interlocking device. When the sample chamber is closed, the device is fully enclosed. And the operation interface will have the indication of the sample chamber closed.
It can easily identify physical phase, analyse crystal structure, analyse the residual stress, and evaluate the composition of various sample types. These include powder, film, bulk, and liquid.
The integrated Sola slit, which has no moving adjustable parts, enhances the reliability of the goniometric system. Therefore, it allows the instrument to be installed on a vehicle-mounted laboratory platform.
| FRINGE Family (Benchtop) | FRINGE D200 |
| Goniometer | θ-θ vertical goniometer, diffractive circle radius 150mm |
| 2θ Measuring range | -3° – +150° |
| Precision | The deviation of ＜±0.02° in the full spectrum |
| FWHM | <0.04°2θ |
| Sola slit | The integrated sora slits, without any motion-adjustable parts, increase the reliability of the goniometer system, allowing the FRINGE desktop XRD to be installed on in-vehicle laboratory platforms |
| X-Ray tube | Cermet X-Ray tube, with maximum power of 2.2KW, focus: (1×10) mm2, default configuration cu target, optional Cu target |
| Detector | Xeye2D |
| High Voltage Generator Power | The maximum output power of the high voltage generator is 1200W |
| Size | 580mm x 450mm x 680mm (L×W×H) |
| Weight | About 120 kg (depending on the actual configuration) |
| Power Supply | 220V±10V, 50Hz |
| Heat dissipation | FRING D200 has a built-in water circulation cooling system, no need to add additional chillers. The software can display the water temperature, flow rate and other information in the X-ray tube in real time |
| Interface | The compact home wall plug provides power, and the USB interface connects to the PC for controlling the XRD |
| Air source | A 2-way air supply interface is available for in-situ analysis or atmosphere protection |
| Security | The push-pull door effectively shields X-rays. FRINGE AUTO features automatic shut-off protection during operation and a safety interlock system. With the sample chamber closed, the instrument is fully enclosed, and the operation interface provides a sample chamber closure indicator. |
| Cloud service capabilities | FRINGE D200 uses a synchronizable mobile APP service to support card management of diffraction data and access to knowledge management systems |
| CrystalX software | LANScientific has developed a special crystal analysis software CrystalX for FRINGE D200. After obtaining diffraction data, CrystalX automatically conduct phase analysis, and give the percentage of each component of the phase, greatly reducing the requirements of the user, no manual retrieval, no need to buckle the background, no need to smooth, no need to manually peak, just need to click “start testing”, the rest to the CrystalX software |
