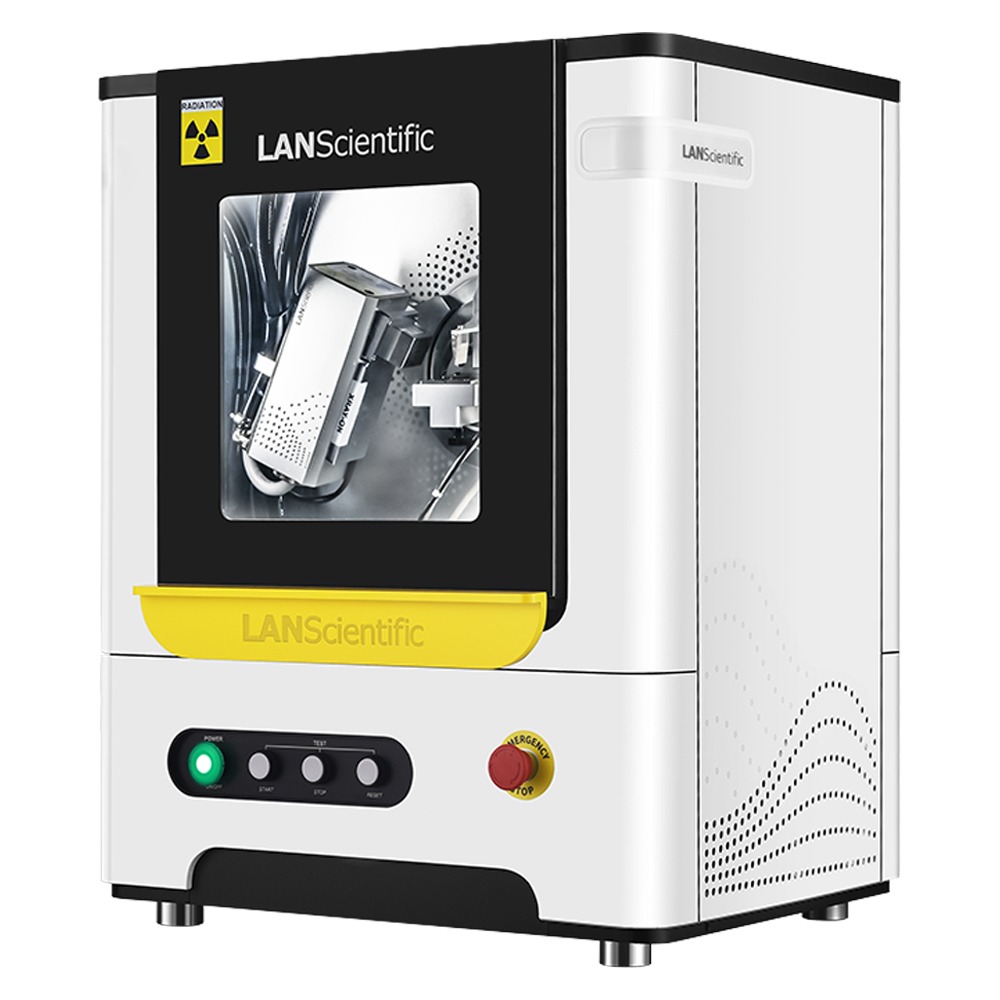

FRINGE X-Ray Diffractometer
Infinite Fringe, make the world clearer,
FRINGE X-Ray Diffractometer
Infinite Fringe makes the world clearer.
The FRINGE Benchtop X-Ray Diffractometer is a compact desktop X-ray diffractometer developed by LANScientific Co., Ltd. It combines XRD, XRF, advanced computer software, and integrated analytical technologies into a single, user-friendly platform.
As a result, the system delivers rapid qualitative and quantitative analysis, crystal structure characterisation, and detailed material structure analysis. It also determines the crystallinity of powders, solid blocks, thin films, and a wide range of other sample types with exceptional precision.
Request a Quote
Prices shown are for the United Arab Emirates only and exclude VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties.
Please Contact Us for further details and pricing for your country or location.
FRINGE X-Ray Diffractometer
Infinite Fringe makes the world clearer.
The FRINGE Benchtop X-Ray Diffractometer is a compact desktop X-ray diffractometer developed by LANScientific Co., Ltd. It combines XRD, XRF, advanced computer software, and integrated analytical technologies into a single, user-friendly platform.
As a result, the system delivers rapid qualitative and quantitative analysis, crystal structure characterisation, and detailed material structure analysis. It also determines the crystallinity of powders, solid blocks, thin films, and a wide range of other sample types with exceptional precision.
Designed for reliable performance, the FRINGE Benchtop X-Ray Diffractometer offers outstanding precision, excellent accuracy, and long-term stability. Furthermore, its intuitive interface and intelligent operating system simplify complex analytical workflows while improving efficiency and productivity.
Consequently, researchers and quality control professionals can perform high-precision materials analysis across numerous industries. These include materials science, universities, research institutes, construction materials, metallurgy, mining, plastics, pharmaceuticals, semiconductors, and many other advanced manufacturing and research applications.
Air spring large window lift door not only save desktop space,but also suitable for each desk. Furthermore, it effectively improves space utilisation rate.
FRINGE built-in water circulation cooling system, no need to add additional chiller. Software can real-time display the X-ray tube water temperature, flow, flow rate and other information.
Automatic cutting protection is fitted to the device in the test process, with a safety linkage lock device. The sample chamber is fully enclosed after closing, and the operation interface has the function of closing the sample chamber.
After obtaining diffraction data, CrystalX automatically carry out phase analysis, and give the percentage of each component of the phase. This greatly reduces the requirements of the user, who just needs to click to start testing;. Then, the rest is left to the CrystalX software.
The integrated Sora slits, without any motion-adjustable parts, increase the reliability of the goniometer system. Consequently, the FRINGE desktop XRD can be installed on in-vehicle laboratory platforms.
DPPC detector (digital pulse processing counting detector), counting throughput ≥ 1×107CPS, DPPC detector can efficiently suppress sample fluorescence, even for strong fluorescent samples. It can also provide excellent peak-to-back ratio, without the use of secondary monochromator. In addition, DPPC detector provides energy dispersion spectral data while providing diffraction data.
| FRINGE Family (Benchtop) | FRINGE |
| Goniometer | θ-θ vertical goniometer, diffractive circle radius 150mm |
| 2θ Measuring range | -3° – +150° |
| Precision | The deviation of ＜±0.02° in the full spectrum |
| FWHM | <0.04°2θ |
| Sora Slit | The integrated Sora Slits, without any motion-adjustable parts, increase the reliability of the goniometer system, allowing the FRINGE desktop XRD to be installed on in-vehicle laboratory platforms |
| X-Ray tube | Cermet X-Ray tube, with maximum power of 2.2KW, focus: (1×10) mm2, default configuration cu target, optional Co, Cr, Mo target |
| High voltage generator power | The maximum output power of the high voltage generator is 600W |
| Size | 580mm x 450mm x 680mm（L×W×H） |
| Weight | About 120 kg (depending on the actual configuration) |
| Power Supply | 220V±10V, 50Hz |
| Heat dissipation | FRING has a built-in water circulation cooling system, no need to add additional chillers. The software can display the water temperature, flow rate and other information in the X-ray tube in real time |
| Detector | DPPC detector (digital pulse processing counting detector), counting throughput ≥ 1×107CPS |
| Interface | The compact home wall plug provides power, and the USB interface connects to the PC for controlling the XRD |
| Air source | A 2-way air supply interface is available for in-situ analysis or atmosphere protection |
| Security | The FRINGE has an air spring large window lift door, which can observe the in-situ analysis process without dead angle, and can effectively shield X-Rays. It has a protection and safety interlock device that automatically cuts off during the test process. The operation interface has the function of closing the sample compartment |
| Cloud service capabilities | FRINGE uses a synchronizable mobile APP service to support card management of diffraction data and access to knowledge management systems |
| CrystalX software | LANScientific has developed a special crystal analysis software CrystalX for FRINGE. After obtaining diffraction data, CrystalX automatically conduct phase analysis, and give the percentage of each component of the phase, greatly reducing the requirements of the user, no manual retrieval, no need to buckle the background, no need to smooth, no need to manually peak, just need to click “start testing”, the rest to the CrystalX software |
