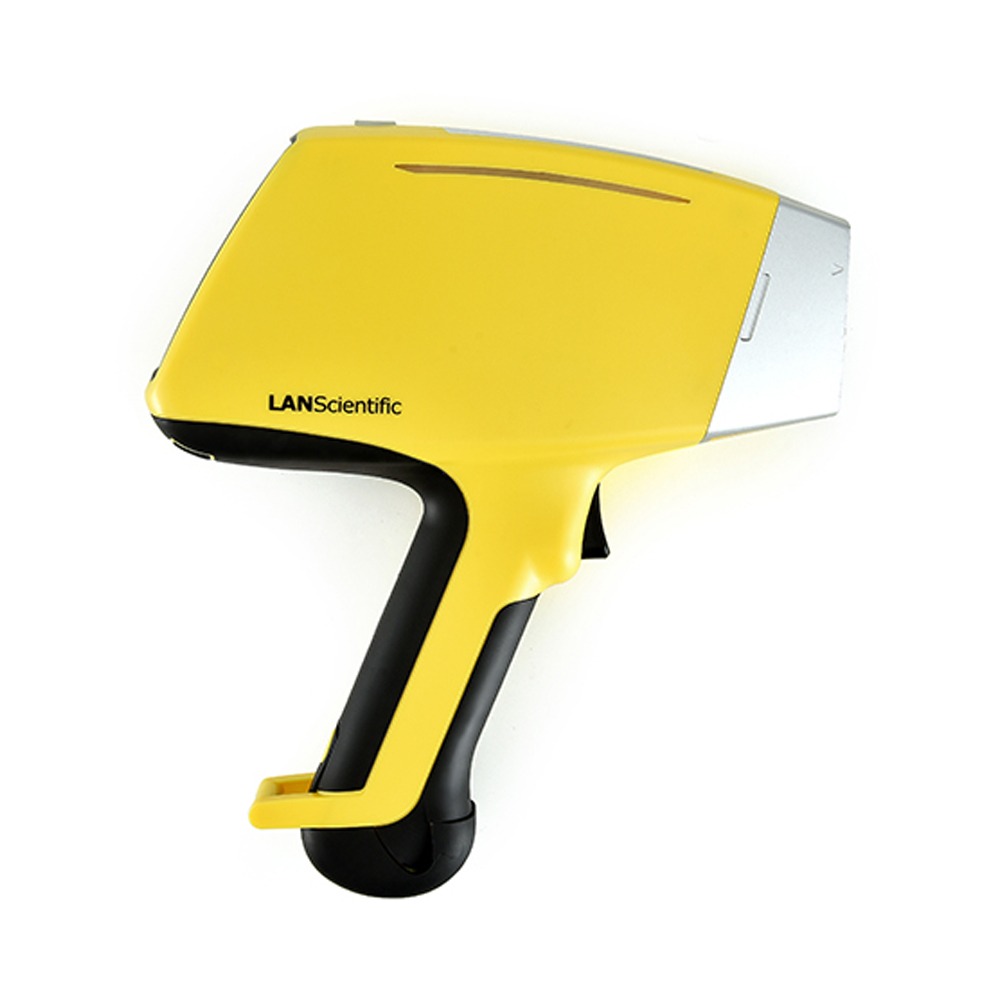

TrueX XRF Analyser 980/980S
TrueX handheld XRF analyser is a powerful handheld XRF equipment launched by our company, featuring fast detection, ruggedness and convenience. It can help users obtain laboratory – comparable results in the field environment. Moreover, it is widely used in waste recycling, environmental assessment, RoHS compliance, consumer product safety, metal materials, metal jewellery, and other fields.
Request a Quote
Prices shown are for the United Arab Emirates only and exclude VAT @ 5% Local Rate (Unless Otherwise Stated).
Other countries may incur additional import duties.
Please Contact Us for further details and pricing for your country or location.
TrueX XRF Analyser 980/980S
TrueX handheld XRF analyser is a powerful handheld XRF equipment launched by our company, featuring fast detection, ruggedness and convenience. It can help users obtain laboratory – comparable results in the field environment. Moreover, it is widely used in waste recycling, environmental assessment, RoHS compliance, consumer product safety, metal materials, metal jewellery, and other fields.
Low-energy X-rays combined with an intelligent vacuum system can have a good excitation effect on light elements such as Si, P, S, Al, and Mg. XRF technology can be used to analyse key elements with Cr, Ni, and Mo high content.
There are 5mm, 3mm, 1mm, and 0.5 mm four kinds of collimators. The collimator and the filter can be automatically switched by the software, saving time and effort. Detection can be improved by the combination of the appropriate collimator and filters, which increases Accuracy and Sensitivity.
It does not damage or affect the performance of the tested object. In addition, it does not damage the internal tissue of the tested object, and has no damage in the entire testing process.
The advanced Peltier electric refrigeration method does not require liquid nitrogen, which reduces the complexity of equipment use. This also saves manpower and equipment maintenance costs.
USB, WIFI, wireless Bluetooth and other methods for data transmission.
The files can be in EXCEL, PDF and other formats. Users can create custom test reports, including company logo, spectrum and other sample information.
Fully enclosed metal case and anti-leakage protection switch, more scientific in design. There is coordination of software and hardware, electromechanical linkage, and radiation safety is in line with the requirements of national standards GB18871-2002 and GBZ115-2002.
| Portable XRF | TrueX XRF Analyser |
| Weight | 1.5kg |
| Size | 254mm×79mm×280mm（L×W×H） |
| Excitation source | Up to 50kV/200μA, Voltage and current can be adjusted freely, W/Ag/Rh target (optional) |
| Detection Range | Mg—U |
| Display System | 4.3 inches industrial grade resistance touch screen |
| Automatically adjust display brightness according to external environment | |
| Data Processing | Built-in 32GB storage |
| USB, can connect the device to the Internet, remote setting and maintenance of the instrument | |
| Heat dissipation | The instrument is equipped with a special T-slot heat sink to improve the heat dissipation performance of the instrument, eliminating the need to frequently wait for the detector to cool down. |
| Security | Built-in DoubleBeam™ technology automatically whether samples are at front, enhanced radiation safety and protection |
| Waterproof, dustproof and shockproof carrying case | |
| LANScientific special safety rope | |
| Power Supply System | Intelligent battery with MSBUS, can directly check the remaining capacity of the battery, the battery complies with the air dangerous goods transport regulations |
| A single battery can work for about 8 hours |
